Features:

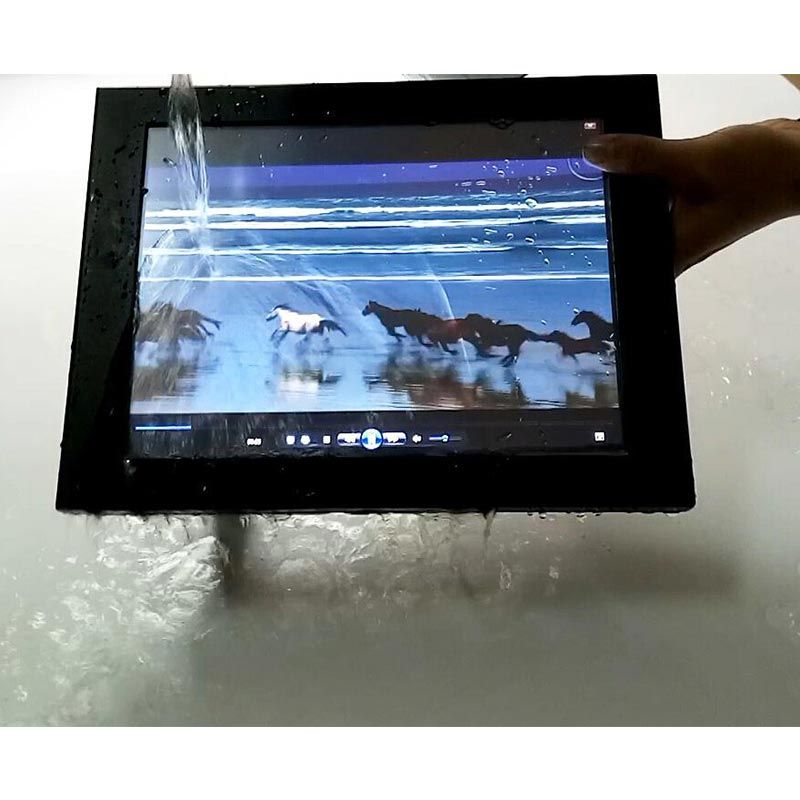

1. Aluminum alloy frame and heat sink, sandblasting oxidation process, anti-UV and anti-discoloration treatment, Full IP67 rating waterproof
2. Industrial-grade LCD screen, 1000 brightness visible in sunlight, PWM software to adjust brightness
3. 5-wire resistive touch screen, surface AG anti-glare, EETI touch control solution
4. Optical bonding betwo LCD and touch screen
5. Adopting industrial-grade components, 7x24 hours of work, supporting wide temperature operation -20-70℃
6. The front frame and back shell are sealed with waterproof adhesive strips, which can be disassembled for inspection and maintenance without affecting the waterproof performance.
Specification:
| PC | |
| CPU | Intel® Celeron J1900, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless Other CPU Optional |
| Chipset | Intel® Bay Trail J1900 Embedded Chipset |
| Memory | 1x DDR3L 1333/1600MHz Max 8GB |
| Storage Capacity | 1x MSATA, 1x SATA |
| Graphics | Onboard integrated Intel HD4000 graphics core |
| Audio | Onboard Realtek ALC662HD audio decoding controller |
| Network | Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI, Bluetooth, 4G, GPS optional |
| Expansion Slots | 1xMiniPCIe, WIFI,Bluetooth /4G Expansion Module |
| Preinstalled OS | Windows 10 Pro 64bit |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |

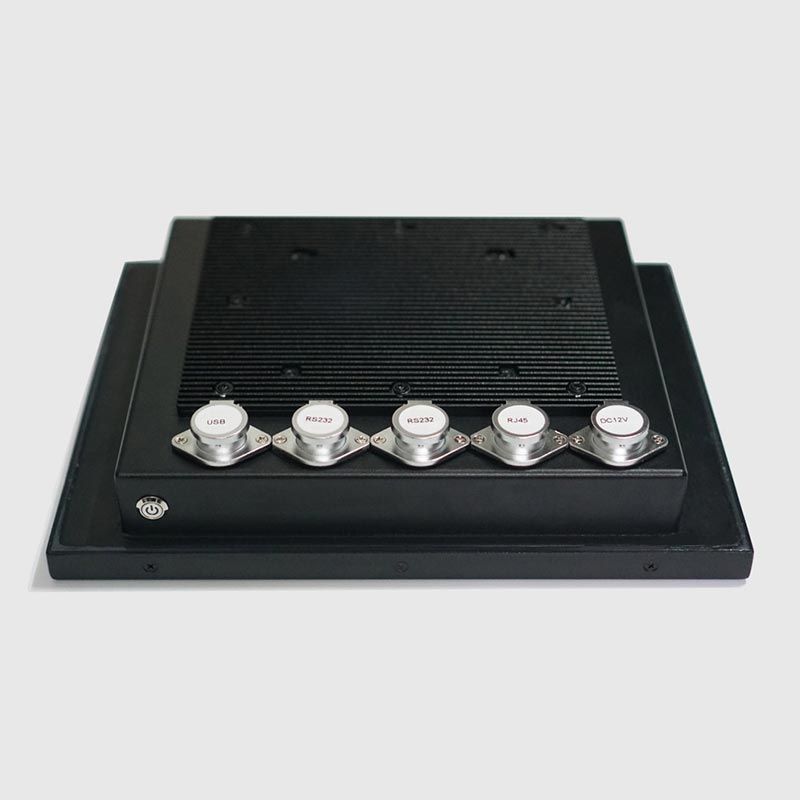

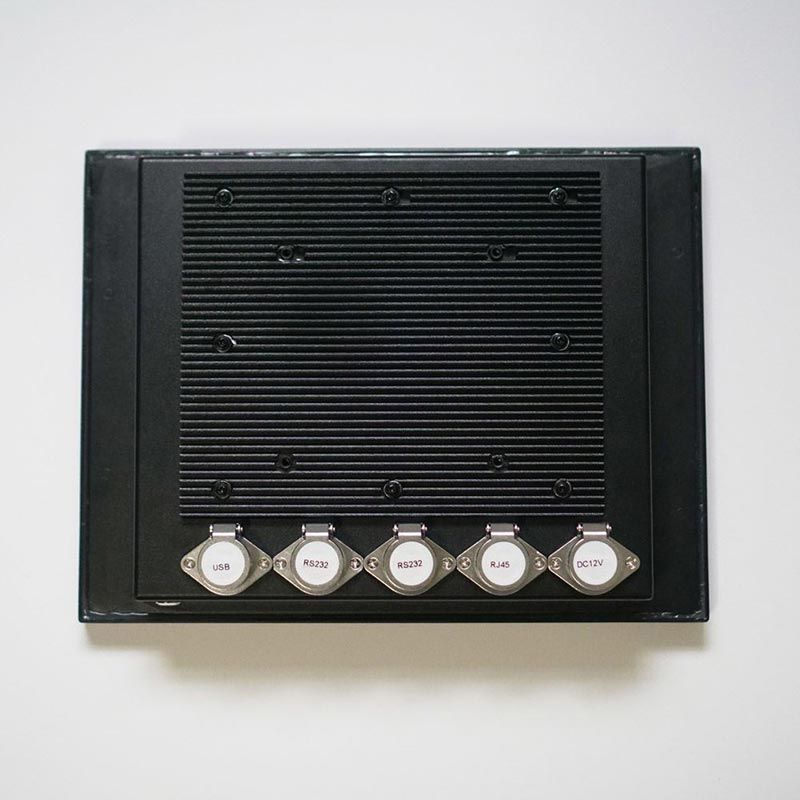

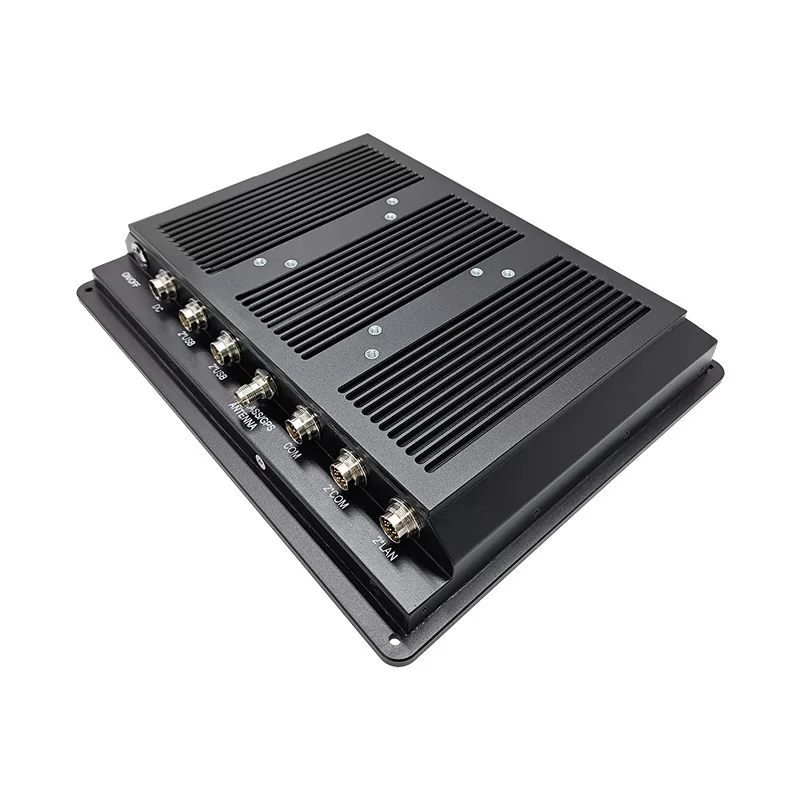

| MI6 metal waterproof interface | |
| USB | 2x IP65 USB 3.0, 2x IP65 USB 2.0 |
| COM | 3x IP65 RS232 |
| LAN | 2x IP65 RJ45 |
| GPS | 1x IP65 GLONASS/GPS Antenna |
| Power input | 1x IP65 DC9-24V |
| Other | 1x IP65 Power on/off button |
| LCD panel | |
| Panel size | 12.1" |
| Display active area | 245.76(W)x184.32(H) mm / 9.676x7.257 in |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits |
| Contrast ratio | 800:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 5 wires resistive touch |
| Surface Hardness | 3H |
| Surface treatment | Anti glare |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air Bonding (Optical bonding optional) |
| Touch optional | Projected Capacitive Touch (up to 10 points ), non touch , IR touch optional |
| Power Supply | |
| Working voltage | DC 9-24V |
| Power consumption | 25W |
| Power adapter | AC 100 ~ 240V input and DC +12V@8A MAX output, 96W |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing+Aluminium alloy cooling fin |
| Finish | Front bezel, cooling fin: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black, Silver, White optional |
| VESA mounting | VESA mount 75*75/100*100mm |
| IP grade | Full IP65 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | operating: -20 °C（-4℉） to 70°C（158℉） storage: -30 °C（-22℉） to 80°C（176℉） |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 3.7kg |

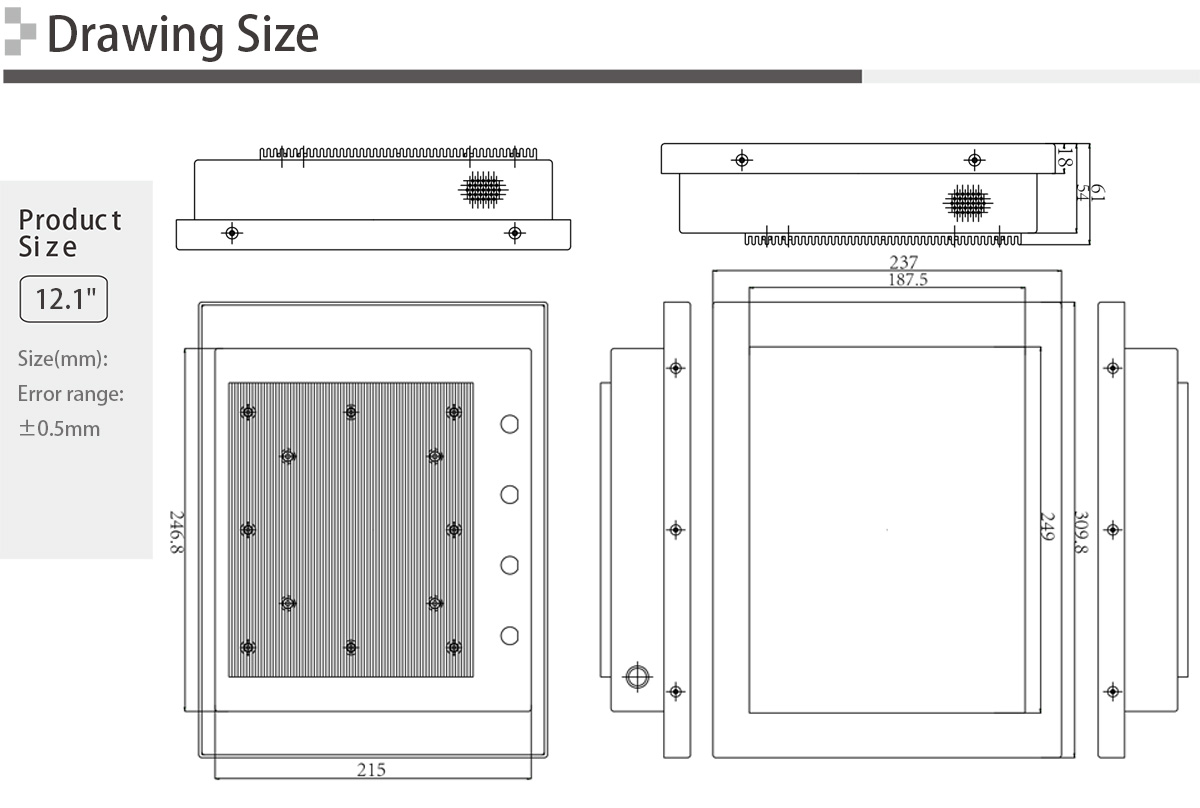

| Product Dimension | 318×256×50mm |
| Packing info | 1pcs/ctn 44×44×16cm 5.5kg 2pcs/ctn 45×45×30cm 12kg |

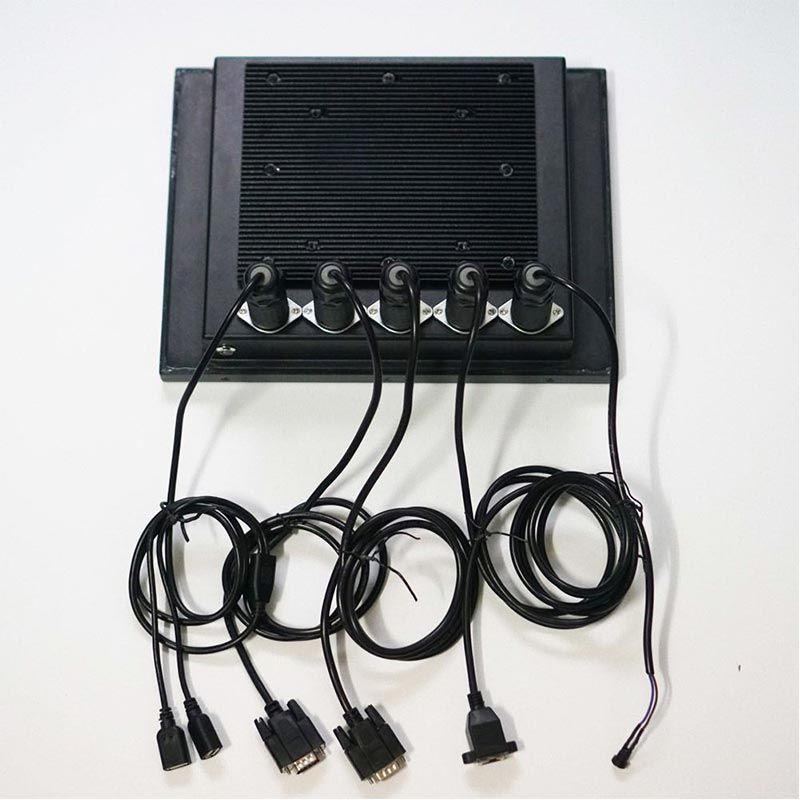

| Accessories | Power supply, waterproof USB cables, waterproof LAN cable, waterproof COM cable, waterproof GLONASS/GPS Antenna |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
