Key Features:

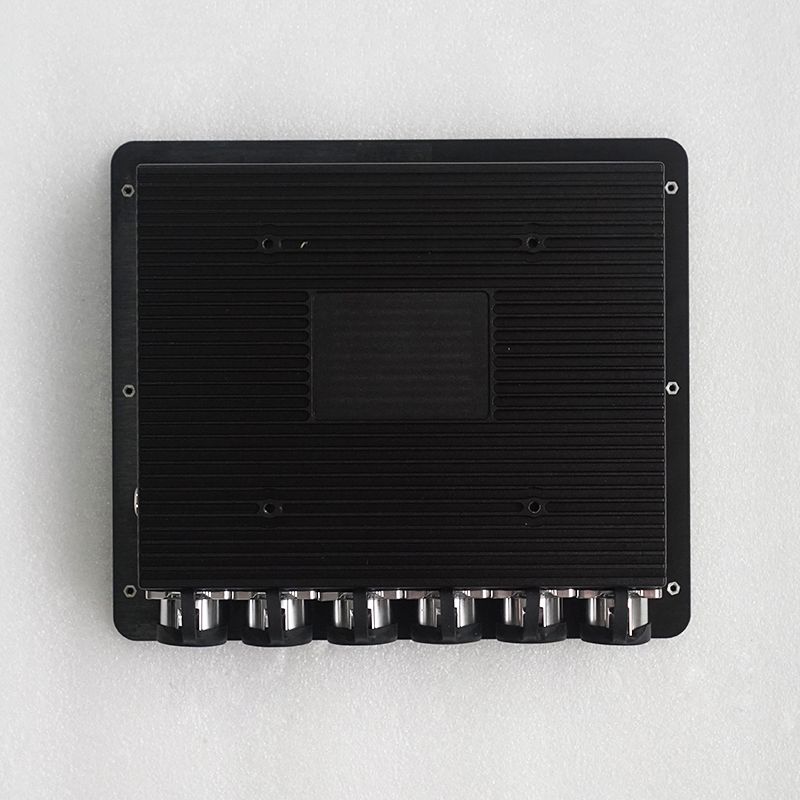

1. Aluminum alloy frame and heat sink, sandblasting oxidation process, anti-UV and anti-discoloration treatment, heat sink opening can load and unload M.PCIE module, the whole machine is IP65 waterproof
2. Industrial-grade LCD screen, full viewing angle, 1000 brightness visible in sunlight, PWM software to adjust brightness
3. 10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H
4. EETI touch control solution
5. Custom waterproof interface, Tree in one connector, DC, RS232, USB in one waterproof connector
6. Adopt industrial-grade components, 7x24 hours work, support wide temperature operation -20-70℃
6. The front frame and the rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and repair without affecting the waterproof performance.
Specification:
| PC | |
| CPU | Intel® Celeron J4125, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless Other CPU Optional |
| Chipset | Cemini lake |
| Memory | 1x SO-DIMM, DDR4-2400/2133, supports single 16GB, maximum 16G |
| Storage Capacity | 1x MSATA, 1x SATA 3.0 |
| Graphics | Intel UHD Graphics 600 |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI, Bluetooth, 4G, GPS optional |
| Expansion Slots | 1xMiniPCIe, WIFI,Bluetooth /4G Expansion Module |
| Preinstalled OS | Windows 10 Pro 64bit |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |

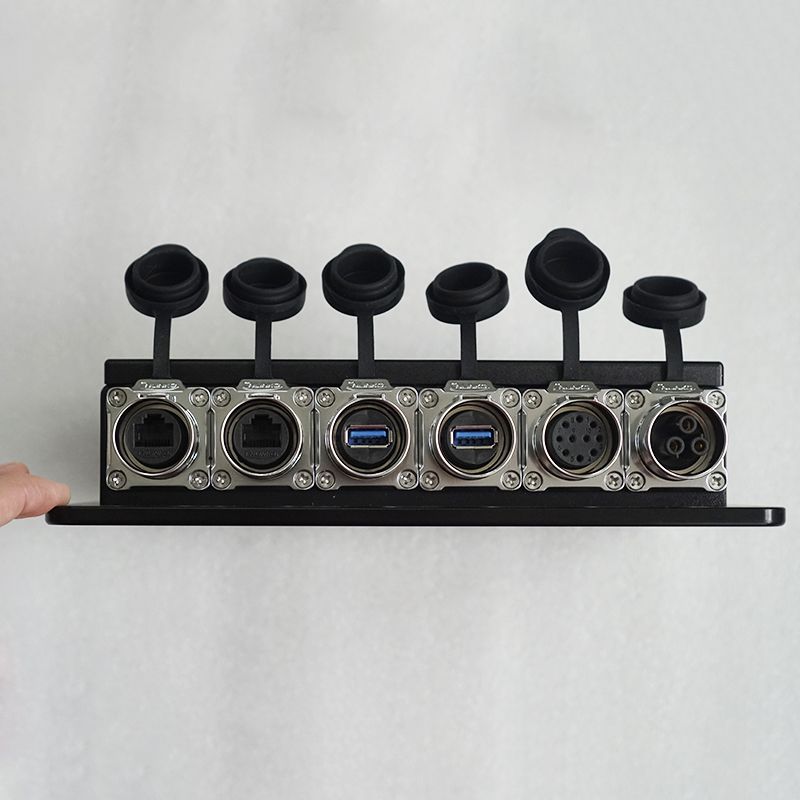

| MI6 metal waterproof interface | |
| Connector1 | 12-24V DC+RS232+USB |
| Connector2 | USB |
| Connector3 | RS232 |
| Connector4 | RJ45 |
| LCD panel | |
| Panel size | 11.6" |
| Display active area | 256.32(W)x144.18(H) mm / 10.091x5.676 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits |
| Contrast ratio | 900:1 |
| View angle | 88°/88°/88°/88° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | N/A |
| Luminousness | ≥90% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air Bonding (Optical bonding optional) |
| Power input | |
| Working voltage | DC 12-24V |
| Power consumption | 20W |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing+Aluminium alloy cooling fin |
| Finish | Front bezel, cooling fin: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| VESA mounting | VESA mount 75*75/100*100mm |
| IP grade | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | operating: -20 °C（-4℉） to 70°C（158℉） storage: -30 °C（-22℉） to 80°C（176℉） |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 3.58kg |
| Product Dimension | 325×230×66mm |
| Packing info | 1pcs/ctn 45×44×16cm 6kg 2pcs/ctn 46×45×35cm 13kg |
| Accessories | Waterproof USB cables, waterproof LAN cable, waterproof COM cable |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
Packaging details

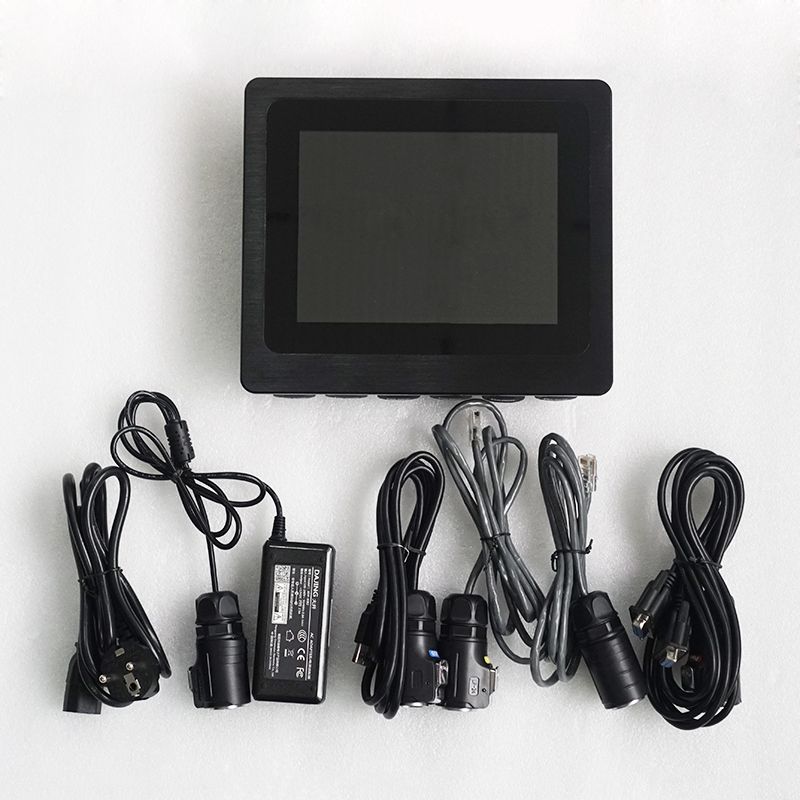

Components:
-Package included: SC08W Rugged Computer, Power adapter and power cord;
-Accessories or Parts: 1* waterproof USB cable, 1* waterproof RS232 cable, 2* waterproof RJ45 cable;
Quality:
We strictly control the incoming material quality and whole production process. All products must be checked at least 5 times before delivery. We have advanced inspection equipments. Most importantly, we have strong sense of responsibility and meticulous manner, never let the unqualified product go out of the factory.
AFTER-SALES SERVICE:
1. We offer a life-long maintenance that is free in the first year.
2. In the first year after you received the products , if there is quality problem happening to the products, pls send us the pictures or video to showing the fault phenomenon, so can help our technicians to analyze the cause of problem, then we will send you the necessary spare parts and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us, we will repair it and resend it to you in one week. If the defective product can't be repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free warranty.
5. After the first year of free warranty, we will charge you the factory cost for the replaced accessories, free for maintenance.
6. Pls feel free to contact our customer service team via Service hotlike. After receipt of your complaint feedback, we will appoint the qualified person to contact you within 12 hours and solve your complaint.
