Features:
The whole machine is milled, the surface is sandblasted and oxidized, anti-UV and anti-discoloration treatment, Full IP67 waterproof;
10 points capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H;
EETI touch solution, touch well with water drop on the screen;
Adopt industrial-grade components, work 7x24 hours, support wide temperature working -30-60℃;
The front frame and the back shell are sealed with waterproof tape, and the machine can be disassembled for inspection and repair without affecting the waterproof performance;
Optical bonding between touch screen and LCD screen.
Specification
| Model:SC17W | |
| PC | |
| CPU | Intel® Core I3-1215U, 6 Cores, 8 Threads, Turbo 4.4 Ghz, 10 MB Smart Cache , Fanless |
| Chipset | SOC |
| Memory | 8G DDR5 |
| Storage Capacity | 128G SSD |
| Graphics | Intel® Iris® Xe Graphics |
| Audio | Onboard ALC897 audio decoding controller |
| Network | 1 x Realtek 8111H/8111G |
| Wireless Network | WIFI optional |
| Expansion Slots | 1xMiniPCIe, WIFI,Bluetooth /4G Expansion Module |
| Preinstalled OS | Windows 10 Pro 64bit |
| Operation System | Support Windows 8/10, Linux, Ubuntu, Debian, etc. |

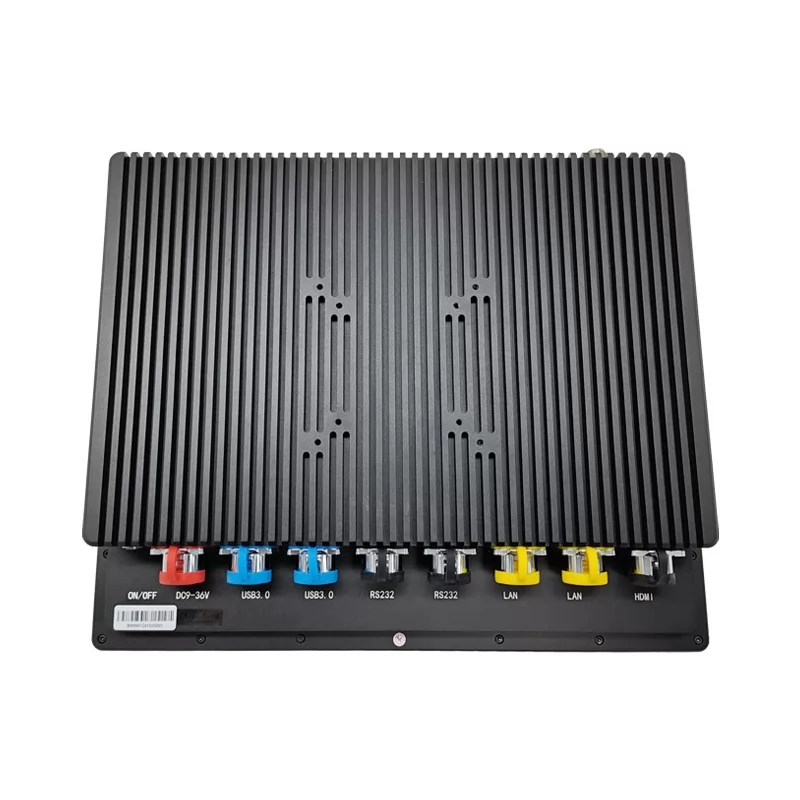

| MI6 metal waterproof interface | |
| USB | 2*IP67 USB3.0 |
| COM | 2*IP67 RS232 |
| LAN | 2*IP67 RJ45 |
| Video Outputs | 1*IP67 HDMI |
| Power input | 1*IP67 DC12V, 9-36V DC Optional |
| Other | 1*IP67 Power on/off button |
| LCD panel | |
| Screen diagonal | 17" |
| Display active area | 337.92(W)x270.336(H) mm / 13.304x10.643 in |
| Resolution | 1280*1024 |
| Aspect ratio | 5:4 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | PWM Brightness Adjustment |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Support Color | 16.7M colors |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti-Glare |
| Luminousness | ≥80% |
| Touch controller IC | EETI 81 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch optional | Resisive touch, non touch, IR touch optional |
| Power Supply | |
| Working voltage | DC 12V, 9-36V DC Optional |
| Power consumption | 60W |
| Power adapter | AC 100 ~ 240V input and DC [email protected] MAX output, 150W |
| Enclosure | |
| Material | Aluminium alloy |
| Finish | UV-protection and Anti-discoloration treatment |
| Color | Black |
| VESA mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP grade | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -30 °C（-22℉） to 60°C（140℉）, Storage: -30 °C（-22℉） to 70°C（158℉） |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 7.8kg Gross weight 12kg |
| Product Dimension | 400×332×50mm |
| Packing info | 1pcs/ctn 64×44×16cm 12kg 2pcs/ctn 64*44*31cm 23kg |
| Accessories | Power supply, waterproof USB cables, waterproof LAN cable, waterproof COM cable, waterproof HDMI cable |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
