Features:
1. Aluminum alloy frame and heat sink, sandblasting oxidation process, anti-UV and anti-discoloration treatment, the whole machine is IP67 waterproof.
2. Industrial grade LCD screen, full viewing angle.
3.10 points capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface is treated with AG anti-glare treatment.
4.EETI touch control solution, normal touch when there are water droplets on the touch screen.
5. Adopt industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
6. The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
7. Optical bonding.
Specification:
| PC | |
| CPU | Intel® Core i5-8257U, 4 Cores, 8 Threads, Base 1.4 GHz, Turbo 3.9 GHz, Fanless Other CPU Optional |
| Chipset | SOC |
| Memory | 2*SO-DIMM DDR4 2666MHz Max64GB |
| Hard Drive Capacity | 1*SATA, 1*M.2 M Key NVME PCIeX4/SATA SSD |
| Graphics | Intel® HD Graphics |
| Audio | Onboard HS-100B USB audio decoding controller |
| Network | Realtek RLT8111H/8111G |
| Wireless Network | WIFI, Bluetooth, 4G, GPS Optional |
| Operation System | Support Windows 7/8/10/11, Linux, Ubuntu, Debian, etc. |

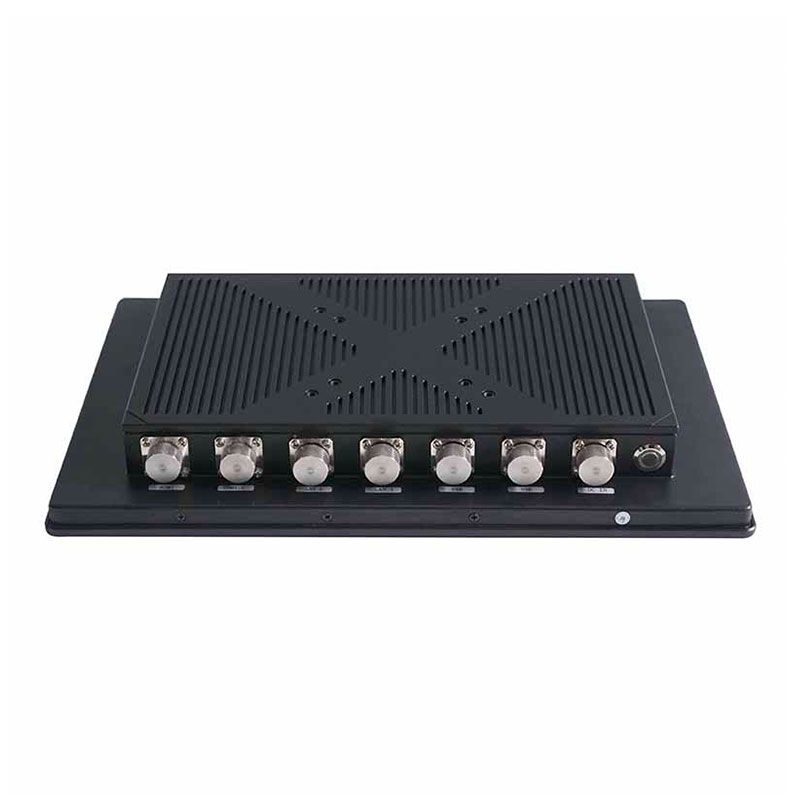

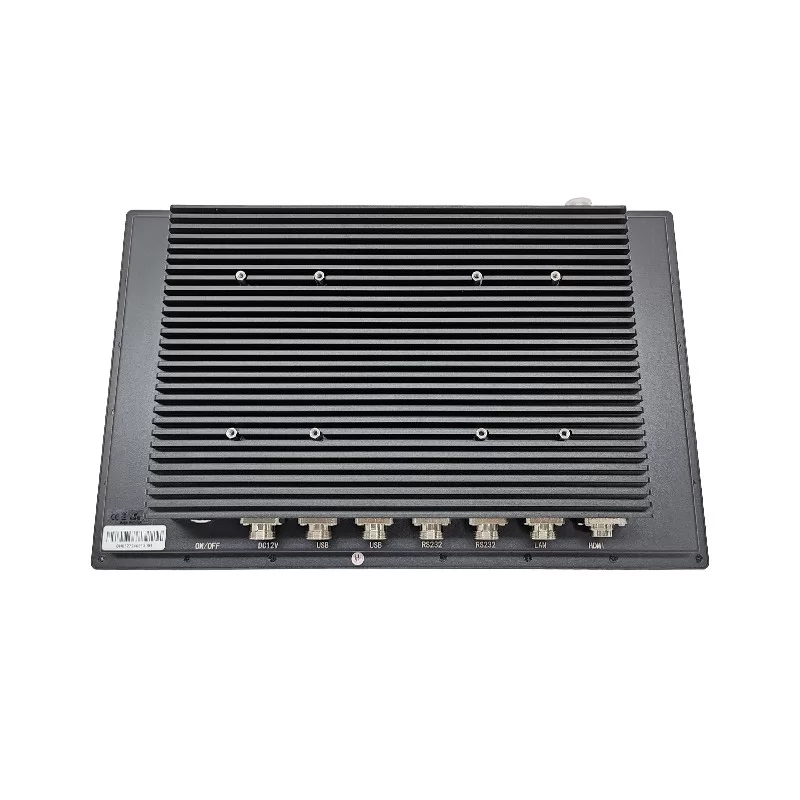

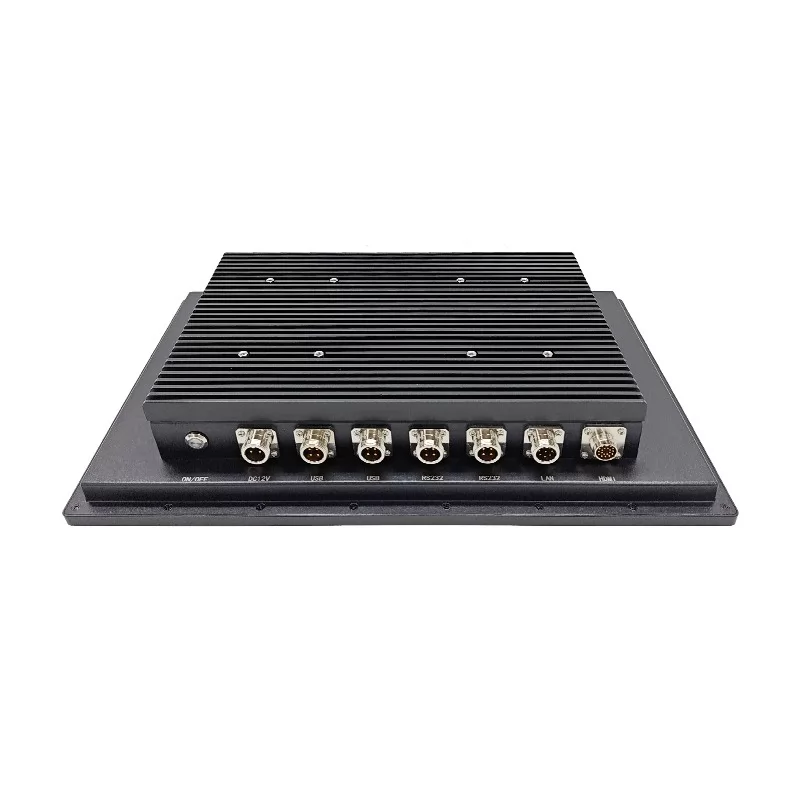

| I/O | |
| USB | 2*IP67 USB |
| COM | 2*IP67 RS232(RS422/485 Optional) |
| LAN | 1*IP67 RJ45 (2*IP67 RJ45 Optional) |
| Video Outputs | 1*IP67 HDMI |
| Power input | 1*IP67 DC 12V (9-36V DC Optional) |
| Other | 1*IP67 Power on/off button 1*IP67 WIFI antenna jack male 1*IP67 Breather valve |

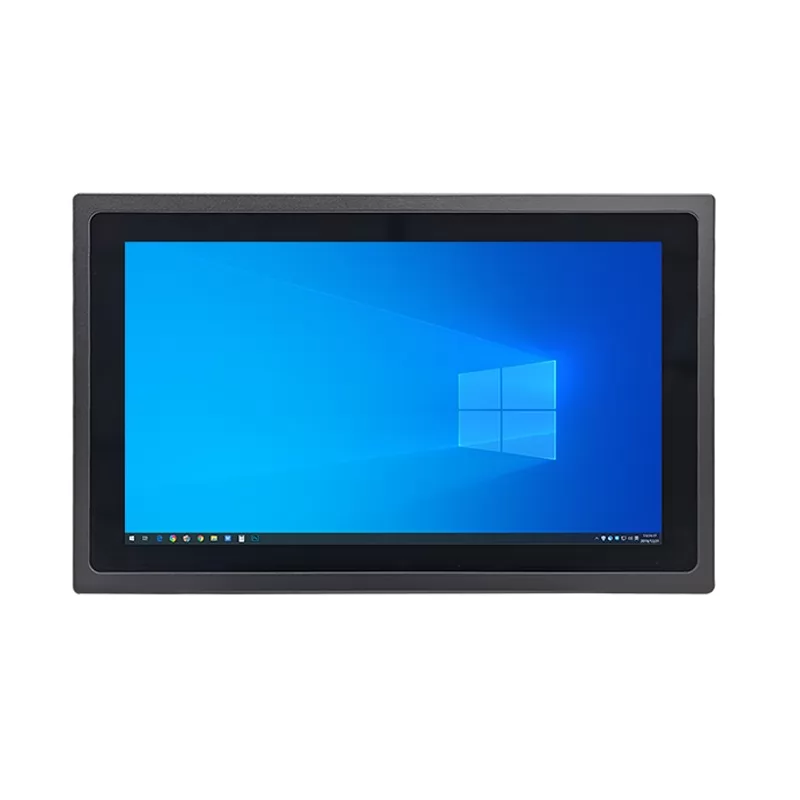

| LCD panel | |
| Panel size | 15.6" |
| Display active area | 344.232(W)x193.536(H) mm / 13.552x7.62 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 nits (1000 nits, sunlight readable optional) |
| Brightness control | PWM Brightness Adjustment |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Surface hardness | 7H |
| Touch response time | <5ms |
| Surface treatment | N/A (Anti glare (chemical etching) Optional) |
| Luminousness | ≥80% |
| Touch controller IC | EETI 81 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Power Supply | |
| Working voltage | DC 12V (9-36V DC Optional) |
| Power consumption | 65W |
| Power adapter | AC 100 ~ 240V input and DC +12V@8A MAX output, 96W |
| Enclosure | |
| Material | Aluminum alloy panel, heat sink plate + galvanized cold-rolled plate back shell |
| Finish | Aluminum frame, aluminum heat sink: sandblasting oxidation, anti-UV and anti-discoloration treatment Rear shell: electrostatic powder spraying |
| Color | Black, other color optional |
| Mounting | VESA mount 75/100 |
| IP grade | Full IP67 waterproof |

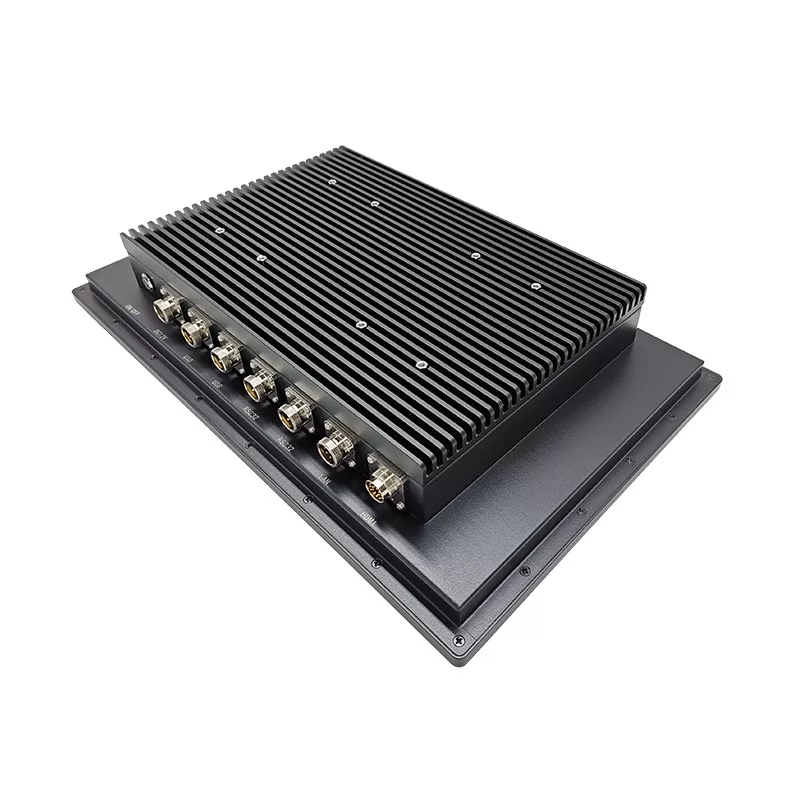

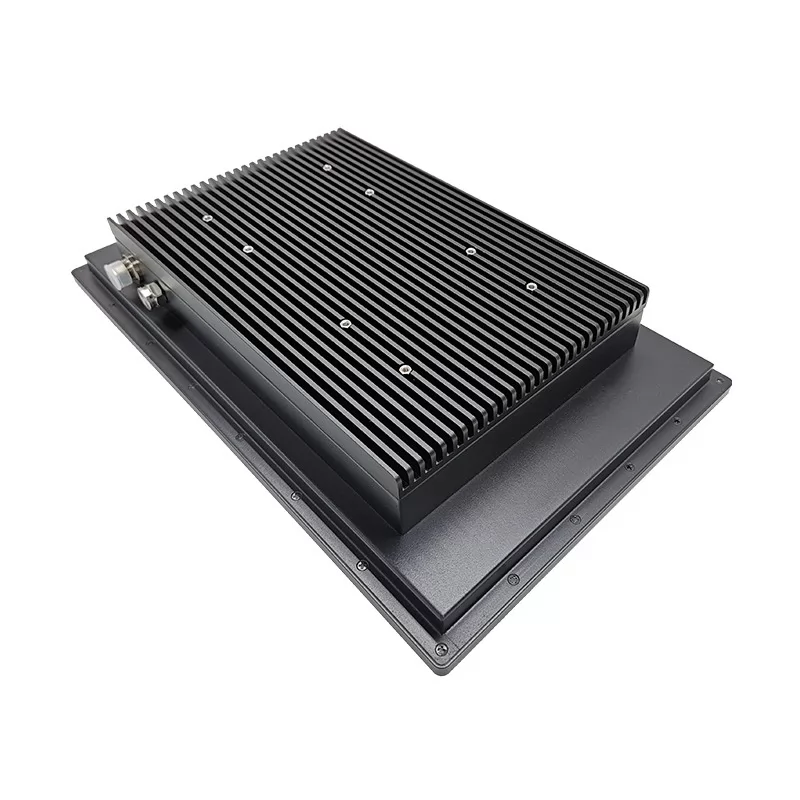

| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Net weight | Net weight 5.59kg |

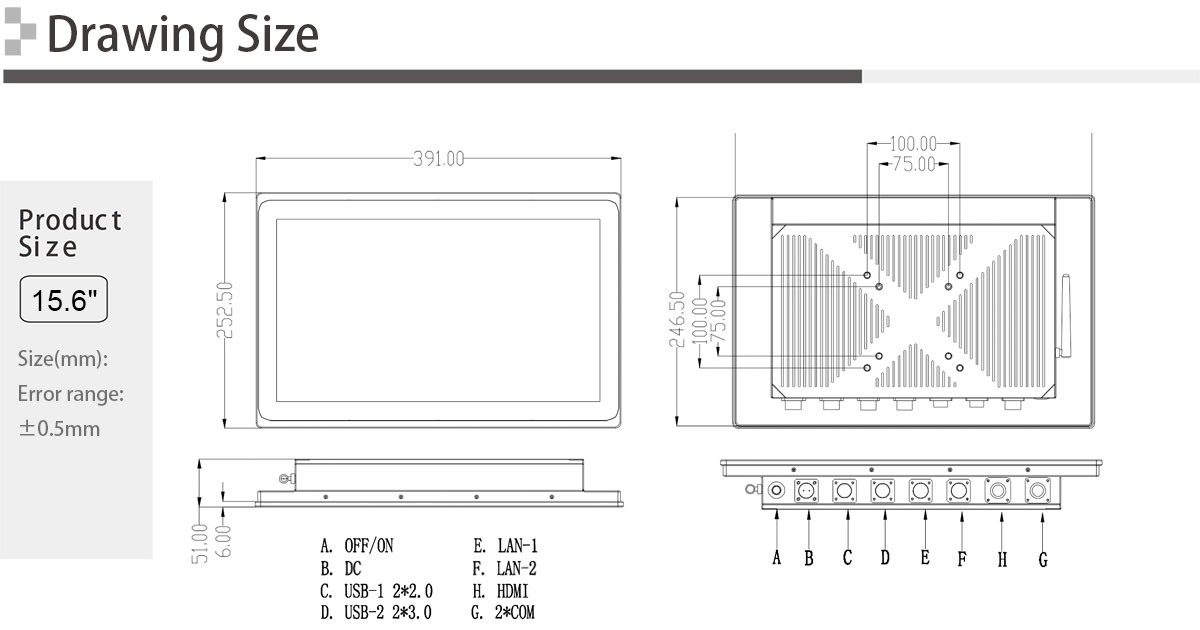

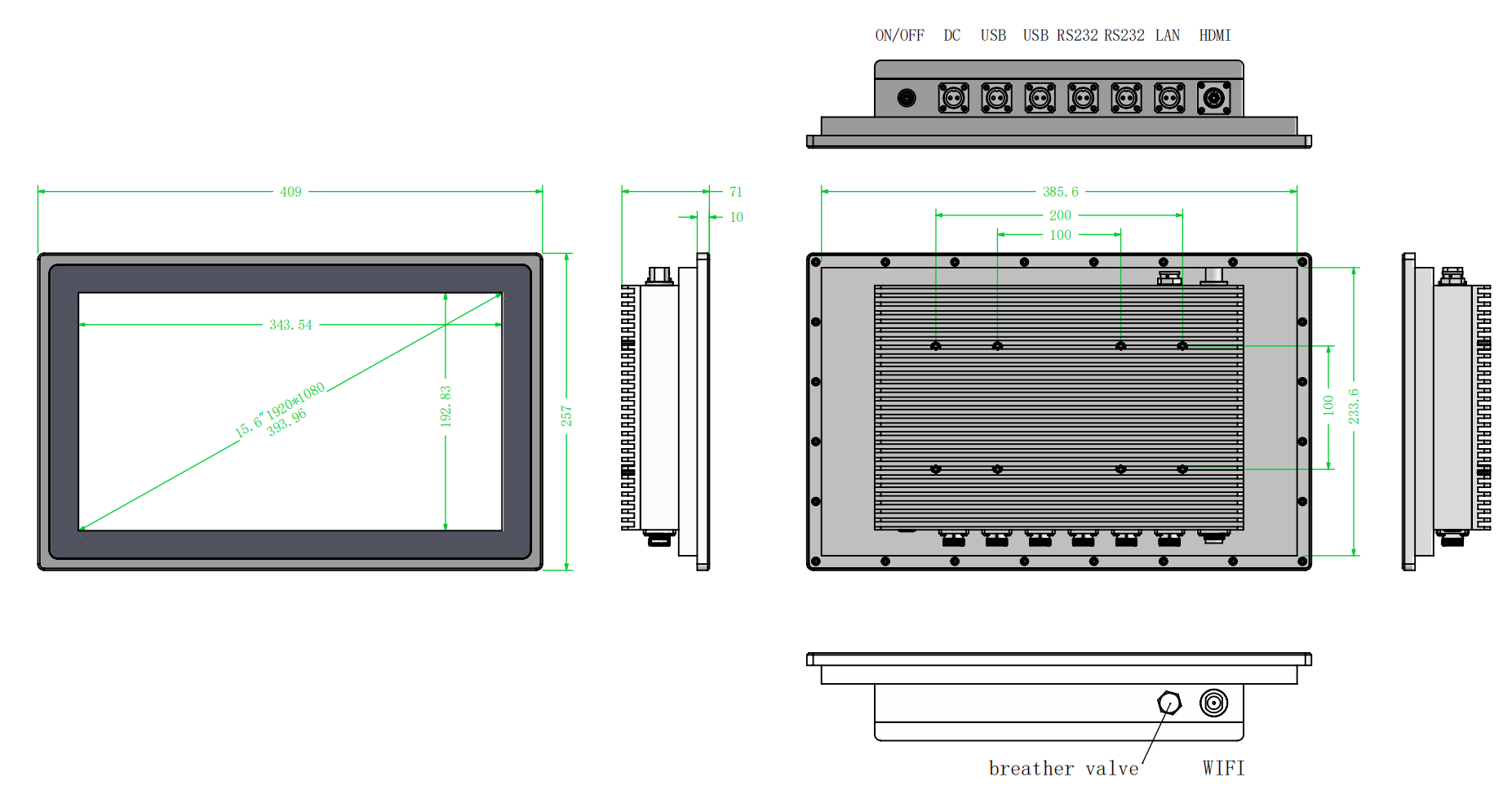

| Product Dimension | 409×233.6×71mm |
| Packing info | 1pc/ctn 55×42×18cm 9kg 2pcs/ctn 56×43×38cm 20kg |

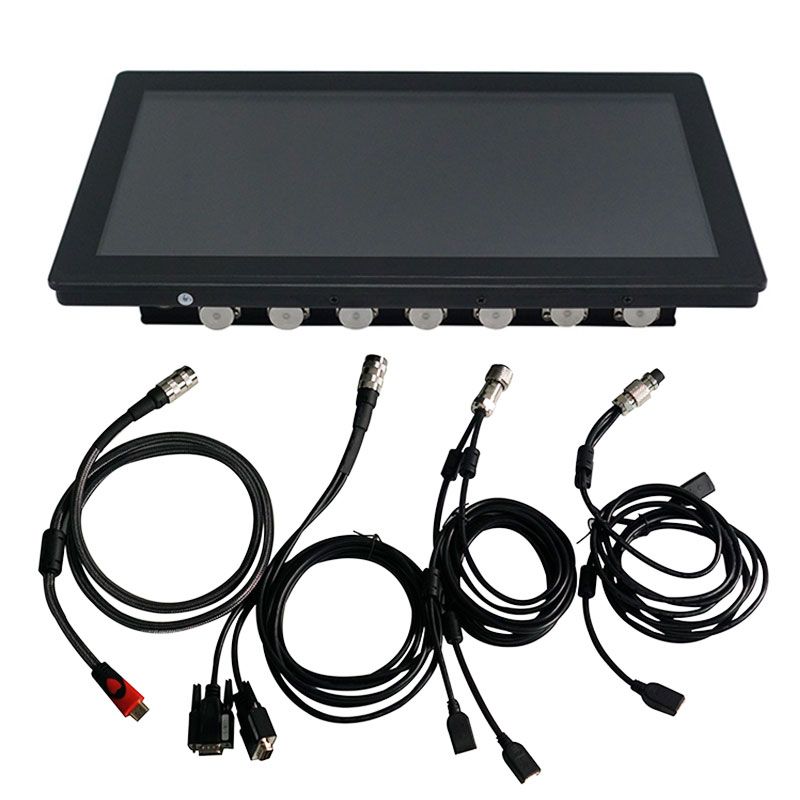

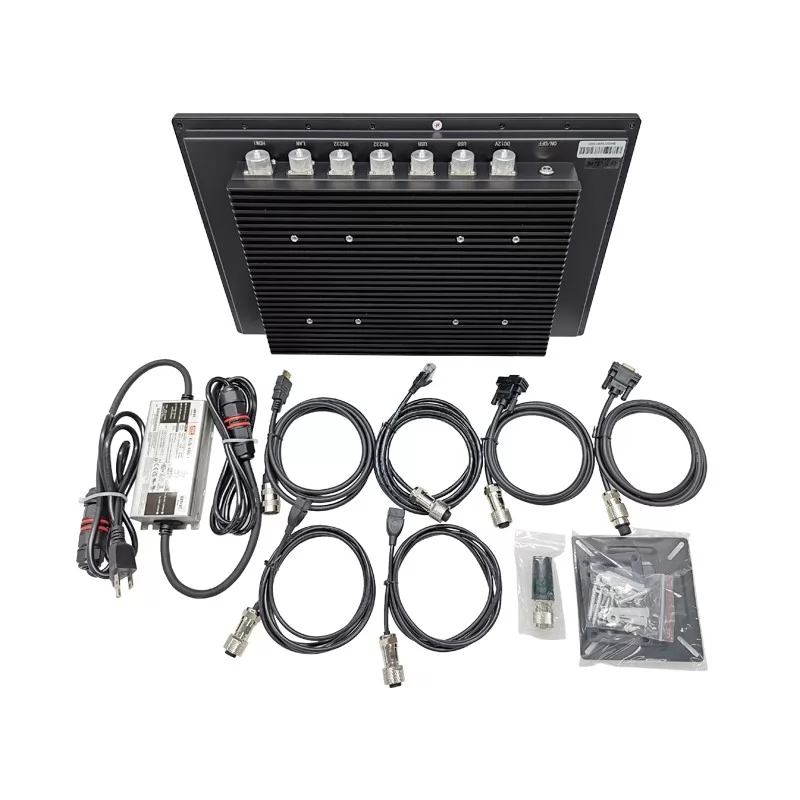

| Accessories | Power supply, Power plug, Waterproof USB touch cables, Waterproof HDMI cable, Waterproof LAN cable |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
