Sihovision is a full service industrial lcd panel computer provider. Our industrial computers are populated with the industry's most trusted component manufacturers. A wide variety of custom options is available on each low power panel pc. Let us build a perfect industrial panel pc for you.

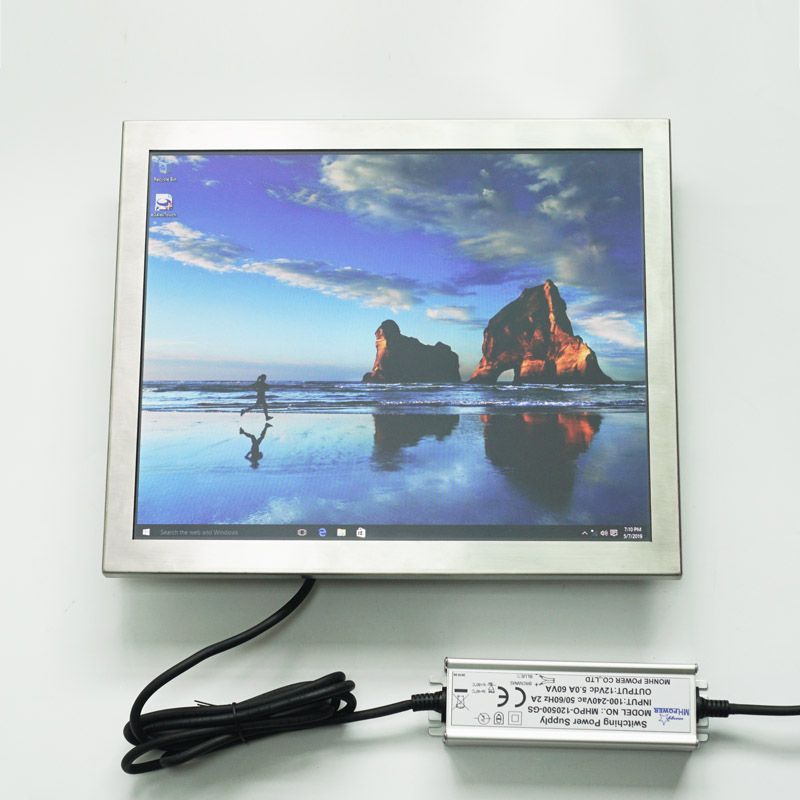

This 17 Inch Touch Panel PC is applicable to many industries, such as medical industry, transportation industry and mining.Get a free quote.
Features
1. IP67 sealed stainless steel enclosure including I/O, Sealed I/O with cable set included.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10 points capacitive touch screen, high precision, durable, anti-interference. EETI waterproof solution, support touch with glove.
4. Fanless design.
5. High performance motherboard, 7x24 continuous operation.
6. Support jet washing.
7. With 4MM Tempered glass for vandal-proof.
8. IP67 Aluminum power adapter.
Specification
| PC | |
| CPU | Intel® Core,i5-4288U,Quad core , Base 2.6 GHz, Turbo 3.1 GHz, Fanless |
| Memory | 8GB DDR3 ( 4G, 16GB optional, ) |
| Hard Drive Capacity | 128G SSD |
| Hard Drive Optional | SSD: 256GB, 512GB |
| HDD: 500GB,1TB | |
| Graphics | Intel HD4400 |
| Audio | Realtek ALC662HD |
| Network | 1×Realtek 8111E,10/100/1000M |
| Wireless Network | Intel®Wi-Fi Link 5300 AGN |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |

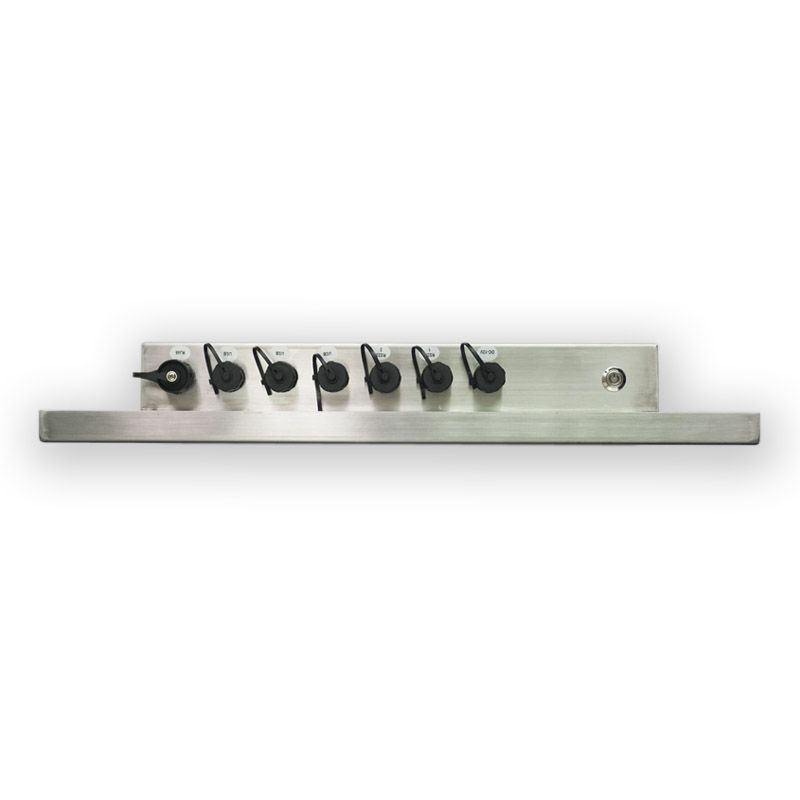

| External I/O Ports | |
| USB | 2x IP67 USB2.0 |
| LAN | 1x IP67 RJ45 |
| Power input | 1×IP67 9-36V DC |
| Other | 1×IP67 Power on/off button,WIFI |
| LCD panel | |
| Panel size | 15" |
| Display active area | 304(W)×228(H) mm /11.968x8.976 in |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Brightness (cd/m²) | 350 nits |
| Brightness control | PWM software to adjust brightness |
| Contrast ratio | 700:1 |
| View angle | 80°/80°/70°/70° (R/L/U/D) |
| Support color | 16.2M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Surface treatment | Anti glare |
| Luminousness | ≥90% |
| Touch controller IC | EETI ETR400 |
| Available touch drivers | Windows, Linux, Android, Mac |
| Touch bonding | Optical bonding |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power consumption | 26W |

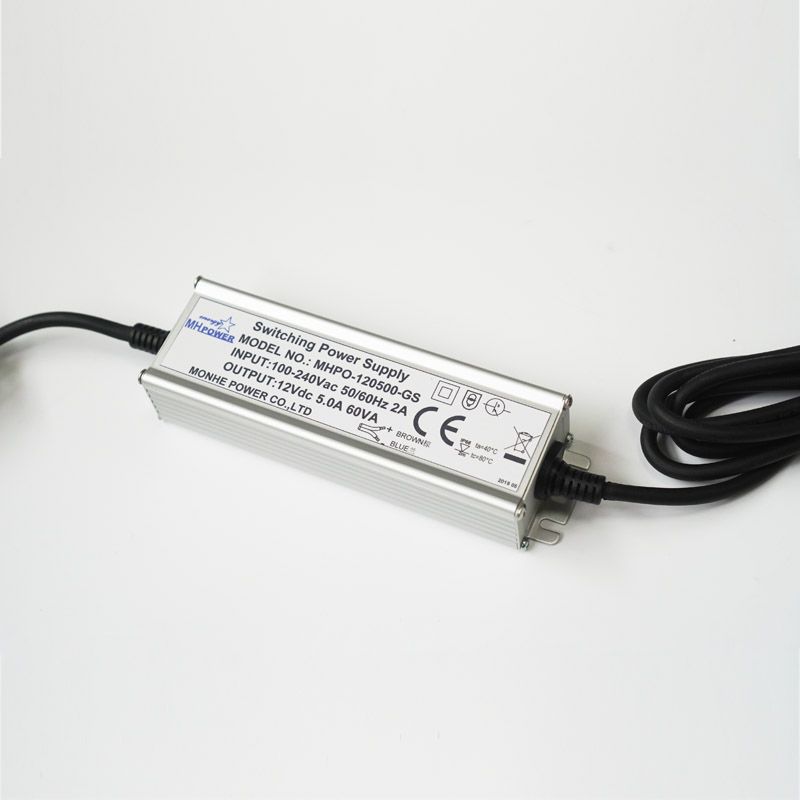

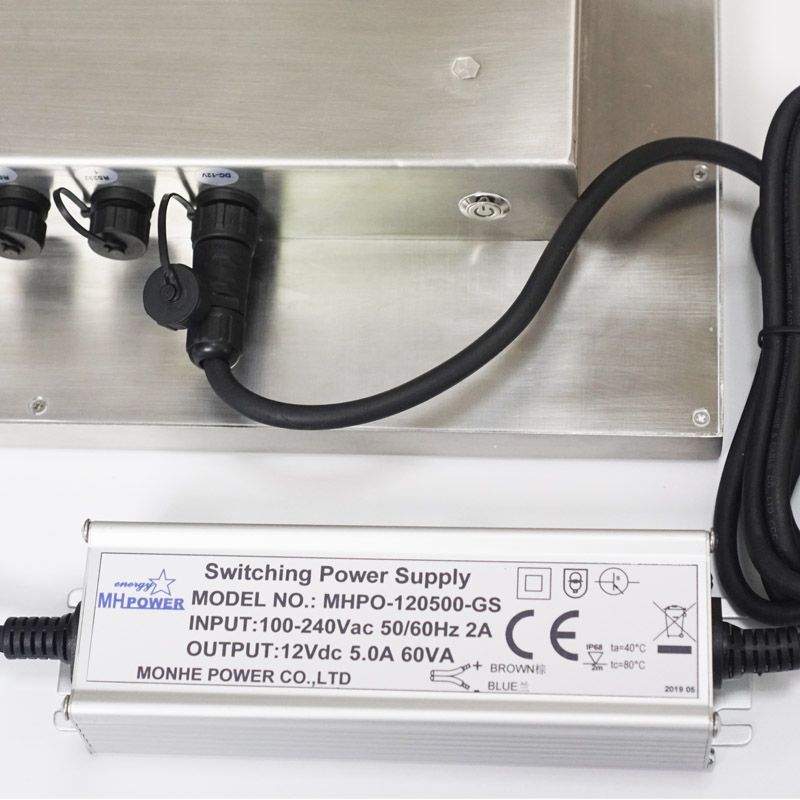

| Power adapter | AC 100 ~ 240V input and DC [email protected] MAX output, 90W |
| Enclosure | |
| Material | SS 304 |
| Finish | Wire drawing |
| Color | Silver |

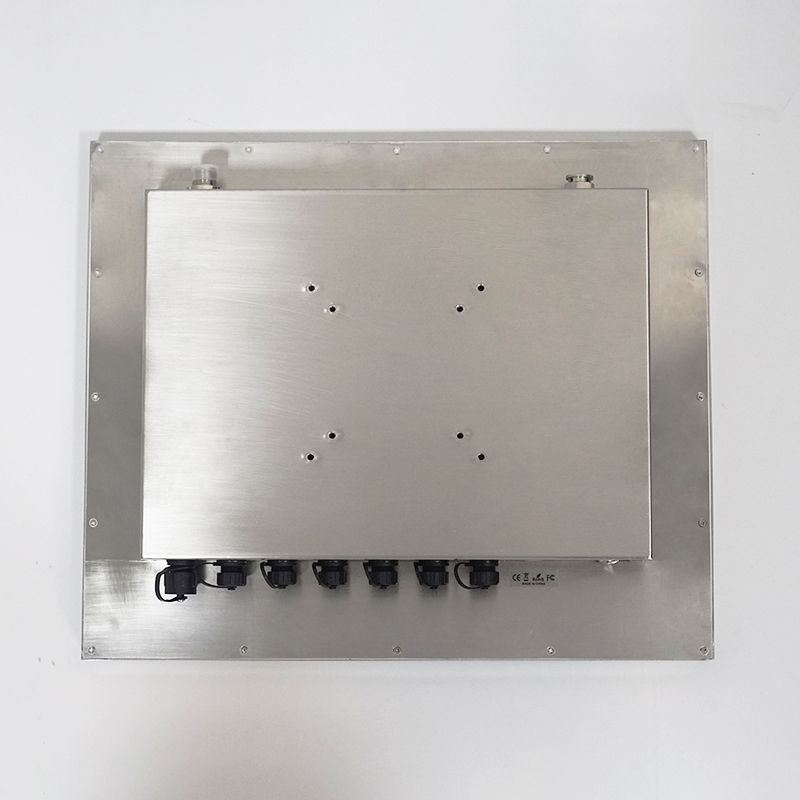

| Mounting | VESA mount 75/100mm |
| IP rating | Full panel IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage :-30 to 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 6kg / 13.227 lb Gross weight 8.5kg / 18.739 lb |
| Product dimension | 368.7×293×58mm / 14.515x11.535x2.283 in |
| Packing info | 1pcs/ctn 53×16×40cm / 20.866x6.299x15.748 in 8.5kg / 18.739 lb 2pcs/ctn 53×30×40cm / 20.866x11.811x15.748 in 17kg / 37.478 lb |
| Accessories | Power adapter, Power plug, Waterproof antenna, Waterproof LAN cable, Waterproof USB cable*2 |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
Best selling countries
Pakistan, Canada, Poland, Netherlands, Sweden, India, Israel, Peru, Denmark, Germany, UK, Spain, Mongolia, USA, South Africa, Finland, Russia, Bulgaria.
Application scenarios
Rail, Marine, Warehouse, Automotive, Mining Testing, Food Processing, Outdoor.
