Features:
1.Stainless steel SS304, Full IP67 waterproof, M 16 metal waterproof connector.
2. Industrial 15'' LCD panel, wide viewing angle, 350 nits brightness.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference. support touch with glove and with water.
4. Acid-resistant, alkali-resistant, corrosion-resistant.Anti glare and optical bonding are included
5. The front frame and rear shell are sealed with waterproof rubber strips, which can be disassembled for inspection and maintenance without affecting the waterproof performance
6. High performance motherboard, 7x24 continuous operation.
Specification
| Model: SC15W | |
| PC | |
| CPU | Intel® Core,i5-4288U,Quad core , Base 2.6 GHz, Turbo 3.1 GHz, Fanless |
| Memory | 8GB DDR3 ( 4G, 16GB optional, ) |
| Hard Drive Capacity | 128G SSD |
| Hard Drive Optional | SSD: 256GB, 512GB |
| HDD: 500GB,1TB | |
| Graphics | Intel HD4400 |
| Audio | Realtek ALC662HD |
| Network | 1×Realtek 8111E,10/100/1000M |
| Wireless Network | Intel®Wi-Fi Link 5300 AGN |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |

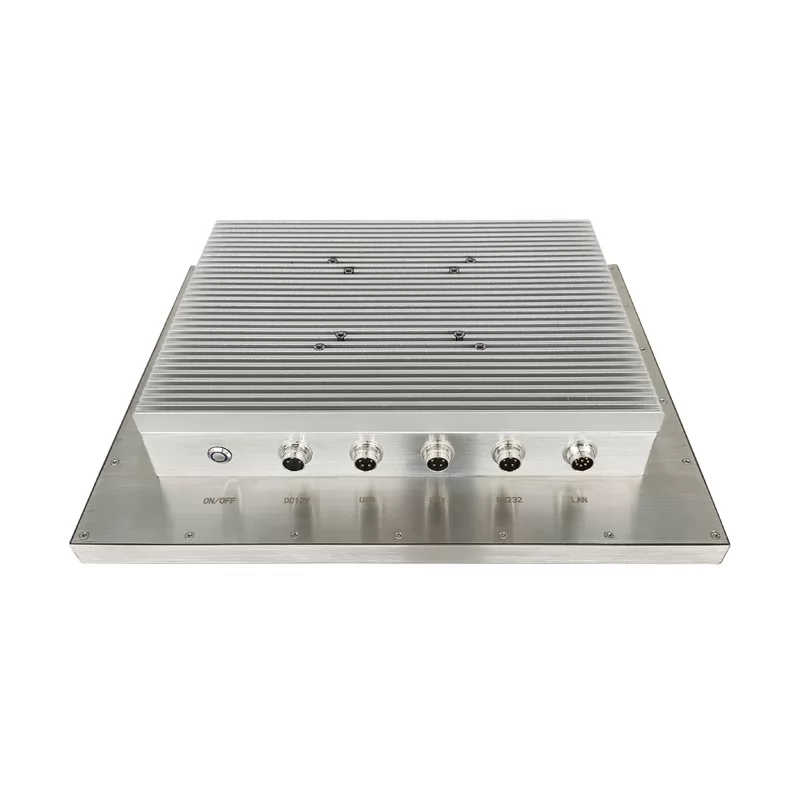

| External I/O Ports | |
| USB | 2x IP67 USB2.0 |
| LAN | 1x IP67 RJ45 |
| Power input | 1×IP67 9-36V DC |
| Other | 1×IP67 Power on/off button,WIFI |
| LCD panel | |
| Panel size | 15" |
| Display active area | 304(W)×228(H) mm /11.968x8.976 in |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Brightness (cd/m²) | 350 nits |
| Brightness control | PWM software to adjust brightness |
| Contrast ratio | 700:1 |
| View angle | 80°/80°/70°/70° (R/L/U/D) |
| Support color | 16.2M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Surface treatment | Anti glare |
| Luminousness | ≥90% |
| Touch controller IC | EETI ETR400 |
| Available touch drivers | Windows, Linux, Android, Mac |
| Touch bonding | Optical bonding |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power consumption | 26W |
| Power adapter | AC 100 ~ 240V input and DC [email protected] MAX output, 90W |
| Enclosure | |
| Material | SS 304 |
| Finish | Wire drawing |
| Color | Silver |
| Mounting | VESA mount 75/100mm |
| IP rating | Full panel IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage :-30 to 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 6kg / 13.227 lb Gross weight 8.5kg / 18.739 lb |
| Product dimension | 368.7×293×58mm / 14.515x11.535x2.283 in |
| Packing info | 1pcs/ctn 53×16×40cm / 20.866x6.299x15.748 in 8.5kg / 18.739 lb 2pcs/ctn 53×30×40cm / 20.866x11.811x15.748 in 17kg / 37.478 lb |
| Accessories | Power adapter, Power plug, Waterproof antenna, Waterproof LAN cable, Waterproof USB cable*2 |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
