Feature
Support Windows 10;
Support Docking charger docking extension;
Support NXP NFC(13.56M);
Support GPS navigation;
Support 1D/2D barcode scanner;
Support finger identification;
Rugged IP65 protection level;
Support 10000mAh pluggable battery;
Support UART port, RJ45 port and customized port;

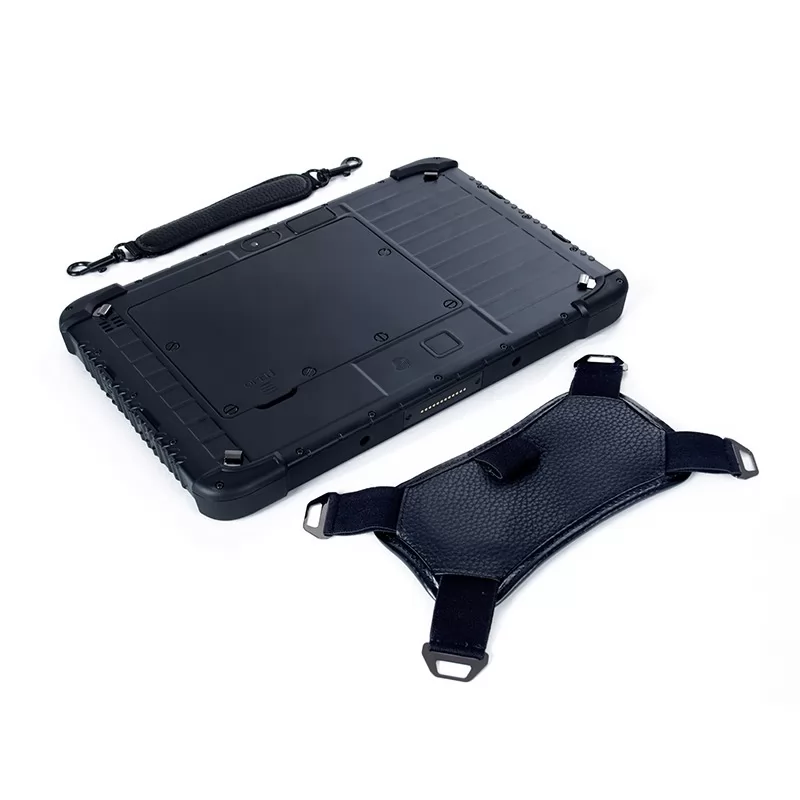

Support Wrist Strap and back jacket.
Specification
| Model:R-I16BMHH | |
| PC | |
| CPU | Intel cherry Trail Z8350, 1.33Ghz-1.92GHz |
| GPU | Intel HD Graphic(Gen7) |
| RAM | 4GB |
| SSD | 64GB |
| G_sensor | Gravity acceleration sensor |
| WIFI | WIFI 802.11(a/b/g/n/ac) Frequency 2.4G+5.8G dual band WIFI intel 3165D2WG |
| Bluetooth | BT4.2 (BLE) class 1, Transmission distance: 10m |
| 3G | Optional: FIBOCOM_H350 GSM/GPRS/EDGE Band(MHz):900/1800; WCDMA Band(MHz):900/2100, 1.Asia Pacific,Europe, 2.China Unicom 3G |
| 4G | EC25-EC LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 |
| GPS | Capture sensitivity: -160 dBm; Cool Start Time：<50second，Hot start time：<28seconds, frequency: 0.25 Hz ~10 MHz (configurable) |
| NFC | Optional: NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm |
| Camera | front 2.0MP, rear 5.0MP |
| Speaker | 8Ω/0.8W waterproof BOX speaker*1 |
| Mic | Sensitivity:-42db, output impedance 2.2kΩ |
| Operation System | windows 10 Home 32bit/ 64bit, Windows 10 Pro/IOT 32bit /64bit |
| LCD panel | |
| Panel size | 10.1", Optional SLR Sunlight visible film |
| Resolution | 800*1280 |
| Aspect ratio | 10:16 |
| Brightness (cd/m²) | 700 cd/m2 |
| Touch panel | |
| Touchscreen Type | 10 points Capacitive, G+G |
| Surface Hardness | 7H |

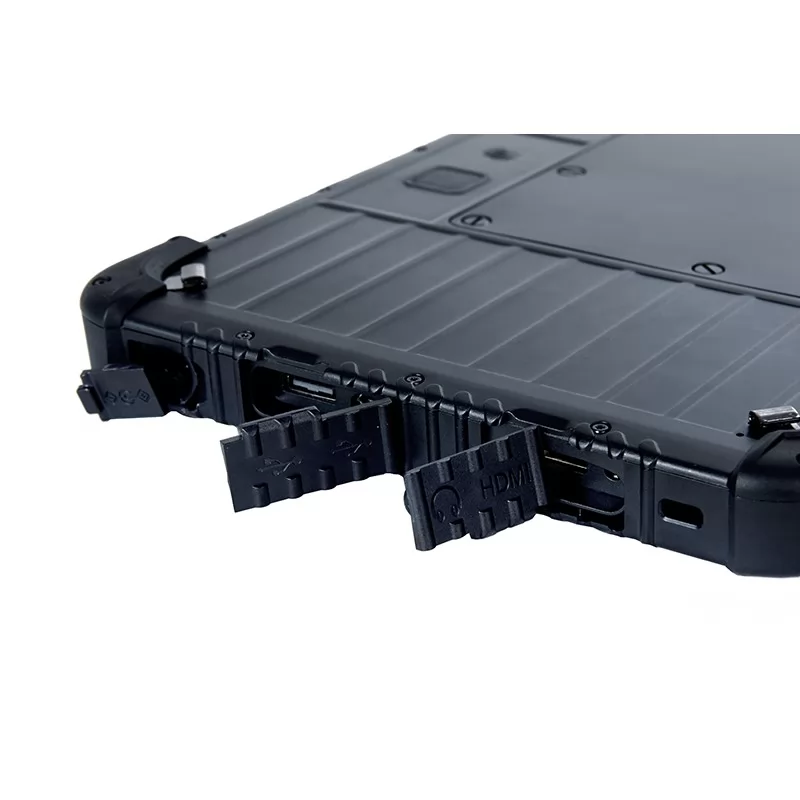

| Interface | |
| USB | 1*USB ,1*Micro USB |
| Pogo Pin | 1*12pin Pogo Pin |
| Audio Output | 1*3.5mm |
| HDMI | HDMI 1.4a Type C*1 |
| TF Slot | 1*TF Slot, max: 128G |
| SIM | 1*SIM |
| Power | 1*DC 5V 3A, Optional: Overvoltage protection of circuit,Max DC24V |
| DB9 PORT | 1*(RS232) TTL electrical level |
| RJ45 PORT | 1*(10/100 self-adaption) |
| Air outlet | 1*( build in small board for customer customized ), TLU1HPO2H0709J-50( tong mao Plug), LU1HR04H0709K(tong mao Plug) |
| OTG Cable | USB OTG to MICRO USB cable length: 45mm |
| USB Cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
| Power Supply | |
| Power Adaptor | AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A |
| Battery | Lithium-ion polymer battery, pluggable, dimension: 21.8*92.3*9.5mm, Optional: 2pcs |
| Capacity: 3.7V/10000mAh | |
| 8hrs(default 50% volumn，default200nit，play 1080P HD video) 7hrs(default 50% volumn，Maximum brightness，play 1080P HD video) | |
| Operating Environment | |
| IP grade | IP65 waterproof |
| Drop Height | 1.22cm composite wood floors, in operation status |
| Operate Temperature | -20 °C to 60 °C |
| Store Temperature | -30 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| Packing Details | |
| Net weight | 1222g |
| Gross weight | 2096g |
| Product Dimension | 280*187*22mm |
| Packing size | 384*222*64mm |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
| Color | Black or Black+Silver(frant and rear Panel: black, Decorate board:Silver) |
| Module extension (Optional) | |
| One-dimension barcode | MOTO SE655E100R ,Support Buzzer, Optical Position: 5mil, Scan speed: 50/s, Symbol system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 |
| Two-dimension barcode | Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
| Fingerprint | FPC1020(sensor, Compression type of capacitance) Fingerprint acquisition area: 10mm x10mm Resolution: 192x192pixel/508DPI |
| Optional Accessories | |
| Accessories | Docking Charger, Hand-strap, Vehicle Mount, Leather Cover, Back-strap, Shoulder-strap, Carry handle, 5V3A Car Charge, Removable Battery |
