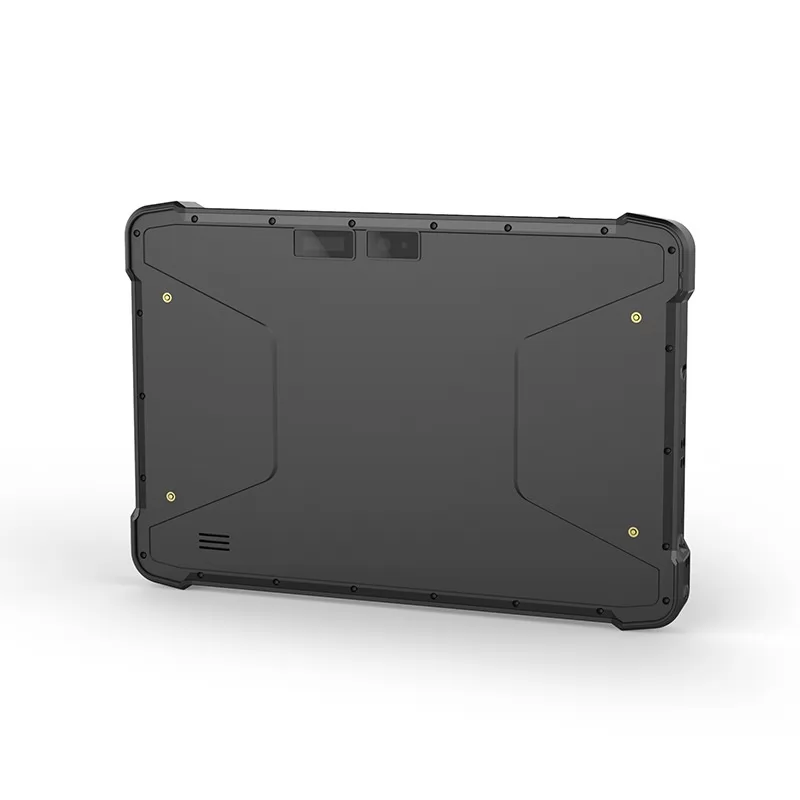

10.1 inches rugged tablet windows 10
10.1 inches rugged tablet windows 1010.1 inches rugged tablet windows 1010.1 inches rugged tablet windows 10
  • 10.1 inches rugged tablet windows 10
  • 10.1 inches rugged tablet windows 10
  • 10.1 inches rugged tablet windows 10

10.1 inches rugged tablet windows 10

Quick Details:

CPUIntel Cherrytrail Z8350RAM2G
Hard Disk32G SSDScreen10.1"
Brightness450nitsTouch TypeCapacitive
Battery3.7V/8000mAhIP GradeIP65



Inquire Now Back

Features

  1. support windows 10 system;

  2. support standard USB2.0 port;

  3. support docking charging docking extension;

  4. support NXP NFC(13.56M);

  5. support GPS navigation;

  6. support 1D barcode scanner/2D barcode scanner;

  7. rugged IP65 grade;

  8. support strap.


R-I11SGH

Model:R-I11SGH
PC
CPUIntel Cherrytrail Z8350, 1.44Ghz-1.92GHz
GPUIntel® HD Graphics
RAM2GB, Optional 4G
SSD32GB, Optional 64G/128G
G_sensorG_sensor
WIFIWIFI 802.11(a/b/g/n/ac)  dual frequency  2.4G+5.8G  WIFI intel 3165D2WG
BluetoothBT4.2 (BLE) class 1, Transmission distance: 10m
3GOptional: IC:H350_A30 frequency:WCDMA(900/2100MHz)  GSM(900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.76 Mbps
4GOptional: EC25-E: LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8
GPSOptional: U-blox NEO-7, support : GPS; Capture sensitivity: -160 dBm; Cool Start Time: <50 seconds, Hot start time: <28 seconds, frequency: 0.25 Hz~10 MHz
NFCOptional: NXP NFC 13.56MHz  support ISO/IEC 下14443A/14443B/15693/18092/mifare protocol, identification distance: 2-4cm
Camerafront 2.0MP with indicator light, rear 5.0MP
SpeakerBuilt-in 8Ω/0.8W waterproof speaker*1
MicSensitivity: -42db, output impedance 2.2kΩ
Operation Systemwindows 10 Pro 32bit, windows 10 Home/Iot 32bit/64bit
LCD panel
Panel size10.1"
Resolution800*1280 IPS
Aspect ratio16:10
Brightness (cd/m²)450 cd/m2
Touch panel
Touchscreen Typemultiple points capacity TP(5 points at Max), G+G
Surface Hardness6H
Interface
USB1*USB2.0*1 （Host）micr usb
Type C1*Type C
Audio Output1*3.5mm
HDMI1*HDMI 1.4a mini
TF Slot1*TF Slot, max: 128G
SIM1*SIM
Power1*DC 5V 3A, 3.5mm Power Connector, Optional (With overvoltage protection, maximum protective voltage is DC24V)
pogo pinOptional: 1*12pin
OTG cableUSB OTG turn MICRO USB cable  length 45mm
USB  cableUSB turn micro 5P L=1.2M, 4 wires with aluminium foil and shielding
Power Supply
Power AdaptorAC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
BatteryBuilt-in Li-polymer battery
Capacity: 3.7V/8000mAh
nearly 8 hours ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )
Operating Environment
IP gradeIP65 waterproof
Drop Height1.22cm  composite wood floors, in operation status
Operate Temperature-10 °C to 50 °C
Store Temperature-20 °C to 60 °C
HumidityHumidity: 95% Non-Condensing
Packing Details
Net weight1018g
Gross weight1867g
Product Dimension275.5*187.5*22mm
Packing size384*222*64mm
Other
Warranty1 year warranty
CertificateCE, FCC, RoHS
Colorblack (rear housing and front housing)
Module extension (Optional)
One-dimension barcode MOTO SE655E100R/Optical resolution: 5mil/scan speed:50 times/s serial port, Code system: UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
Two-dimension barcode Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Optional Accessories
AccessoriesDocking Charger, Hand-strap, Vehicle Mount, Carry handle, 5V3A Car Charge


R-I11SGF

Model:R-I11SGF
PC
CPUIntel Baytrail-T(Quad-core ),Z3735F, 1.33 GHz-1.83 GHz
GPUIntel® HD Graphics
RAM2GB
SSD64GB
G_sensorG_sensor
WIFIAP6255 WIFI 802.11b/g/n/ac   frequency 2.4G+5.8G
BluetoothBT4.1 (BLE) class 1 transmission distance：10m
3GIC:H350_A30 frequency:WCDMA(900/2100MHz)  GSM(900/1800MHz), HSDPA 7.2Mbps, HSUPA 5.76 Mbps
4GEC25-E: LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8
GPSU-blox NEO-7, support : GPS; Capture sensitivity: -160 dBm; Cool Start Time: <50 seconds, Hot start time: <28 seconds, frequency: 0.25 Hz~10 MHz (configurable)

NFCOptional: NXP NFC 13.56MHz  support ISO/IEC 下14443A/14443B/15693/18092/mifare protocol, identification distance: 2-4cm
Camerafront 2.0MP with indicator light, rear 5.0MP
SpeakerBuilt-in 8Ω/0.8W waterproof speaker*1
MicSensitivity: -42db, output impedance 2.2kΩ
Operation Systemwindows 10 Pro 32bit, windows 10 Home/Iot 32bit/64bit
LCD panel
Panel size10.1"
Resolution800*1280 IPS
Aspect ratio16:10
Brightness (cd/m²)400 cd/m2
Touch panel
Touchscreen Typemultiple points capacity TP(5 points at Max), G+G
Surface Hardness6H
Interface
USB1*USB 3.0, Micro 5pin USB*1
Type C1*Type C
Audio Output1*3.5mm
HDMI1*HDMI 1.4a mini
TF Slot1*TF Slot, max: 128G
SIM1*SIM
Power1*DC 5V 3A, 3.5mm Power Connector, Optional (With overvoltage protection, maximum protective voltage is DC24V)
pogo pin1*12pin (USB&Docking charging)
OTG cableUSB OTG turn MICRO USB cable  length 45mm
USB  cableUSB turn micro 5P L=1.2M, 4 wires with aluminium foil and shielding
Power Supply
Power AdaptorAC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
BatteryBuilt-in Li-polymer battery
Capacity: 3.7V/8000mAh
nearly 8 hours ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default )
Operating Environment
IP gradeIP65 waterproof
Drop Height1.22cm  composite wood floors, in operation status
Operate Temperature-10 °C to 50 °C
Store Temperature-20 °C to 60 °C
HumidityHumidity: 95% Non-Condensing
Packing Details
Net weight946g
Gross weight1740
Product Dimension275.5*187.5*22mm
Packing size384*222*64mm
Other
Warranty1 year warranty
CertificateCE, FCC, RoHS
Colorblack (rear housing and front housing)
Module extension (Optional)
One-dimension barcode MOTO SE655E100R/Optical resolution: 5mil/scan speed:50 times/s serial port, Code system: UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
Two-dimension barcode Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
Optional Accessories
AccessoriesDocking Charger, Hand-strap, Vehicle Mount, Carry handle, 5V3A Car Charge
