Functions
Support for Android 11 system.
Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.
6000mAh battery, 6 hours of machine endurance.• IP65 high protection level, in accordance with MIL-STD-810G.
Support GPS, Glonass, Beidou, more accurate positioning.
Support 13 million pixel auto focus camera, easy to collect images and video information.

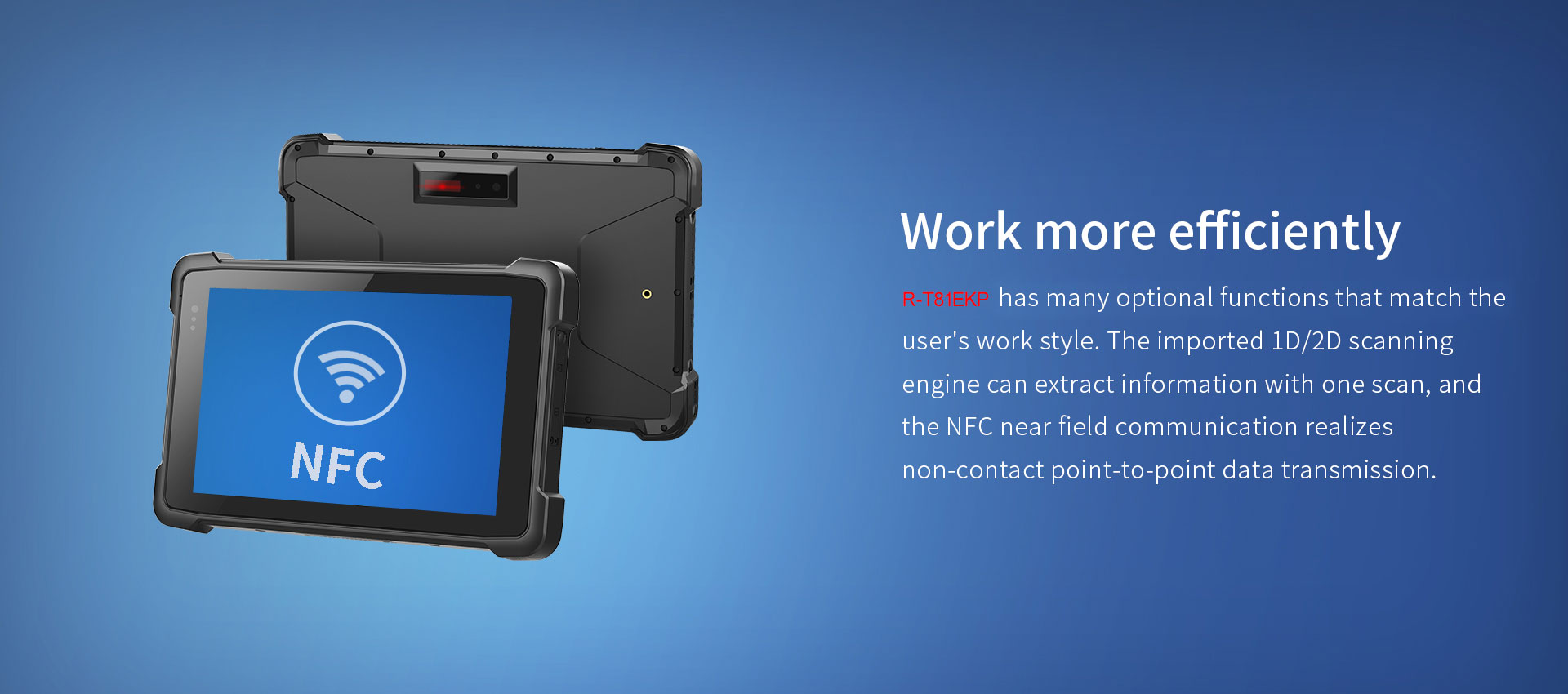

Support 1D/2D, NFC and other functional modules for free selection.
Specification
| Model:R-T81EKP GMS with non-Europe version | |
| PC | |
| CPU | MTK(Octa-Core), 2.0GHz |
| OS | Android 11 |
| RAM | 6GB |
| ROM | 128GB |
| Network connections | |
| WIFI | 2.4G+5G dual frequency, WiFi 802.11(a/b/g/n/ac) |
| Bluetooth | BT4.2 (BLE) |
| 3G/4G | LTE Cat 7 |
| GSM & WCDMA & TD-S(B34, B39) | |
| TDD(B38, B39, B40, B41) | |
| FDD（B1, B2, B3, B4, B5, B7, B8, B17, B20, B28a&b) | |
| Basic parameters | |
| Dimension | 227.5 x 150 x 21mm |
| Weight | device unit 680g |
| Device Color | black |
| LCD | 8 inch IPS 16:10, 800*1280 |
| Touch Panel | 5 points Capacitive, G+G |
| Camera | Front 5.0MP Rear 13.0MP |
| I/O | USB 2.0 x 1, Micro USB x 1 |
| SIM Card x 1, TF Card x 1 | |
| HDMI 1.4a Type C x 1 | |
| 12pins Pogo Pin x 1 | |
| Φ3.5mm standard earphone jack x 1 | |
| Φ3.5mm DC jack x 1 | |
| Power | AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A |
| GPS | support GPS, Glonass |
| Battery | |
| Capacity | 3.7V/6000mAh |
| Type | Built in polymer lithium ion battery |
| Endurance | 5.5hrs (50% volume sounds, 50% brightness, 1080P HD video display by default) |
| Reliability | |
| Operate Temperature | -10 °C ~ 50 °C |
| Store Temperature | -20 °C ~ 60 °C |
| Humidity | 95% Non-Condensing |
| IP Grade | IP65 |
| Optional modules | |
| NFC | Support ISO/IEC 14443A protocol, Card reading distance: 3-5cm |
| 1D | MOTO SE655E100R, Optical Position: 5mil, Scan speed: 50 times/s |
| 2D | Honeywell N3680, Optical Position: 5mil, Scan speed: 50 times/s |
