Features

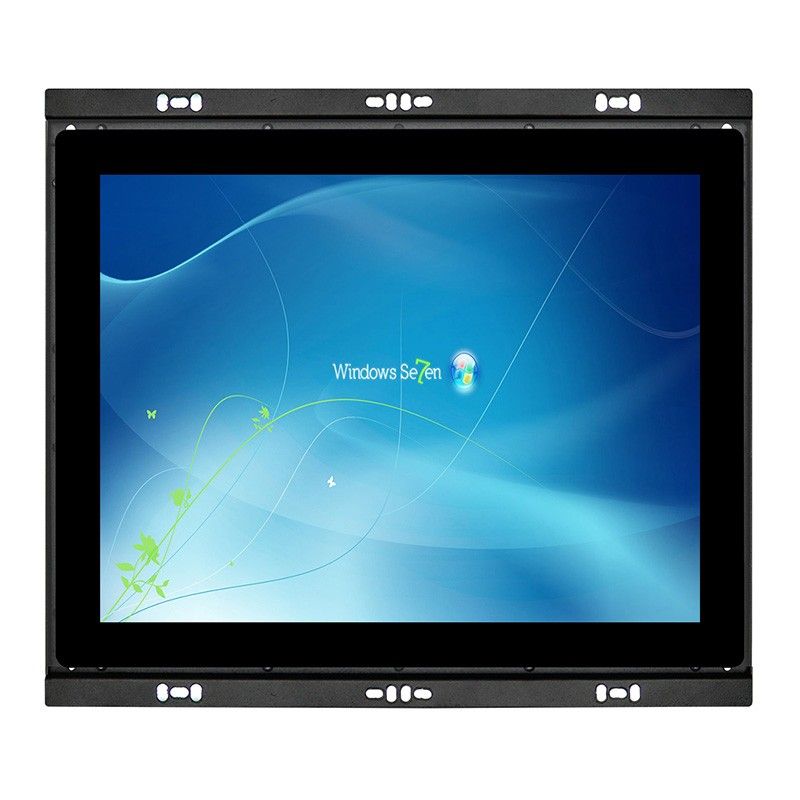

1. Open frame design.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5.1000 nits, sunlight readable.
6. Cover with AR glass, Anti glare, Anti UV
6. High performance mainboard, 7x24 continuous operation.
7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
8. Support wall mounting, embedded mounting, desk stand mounting etc.
Specification
| Panel size | 24" |

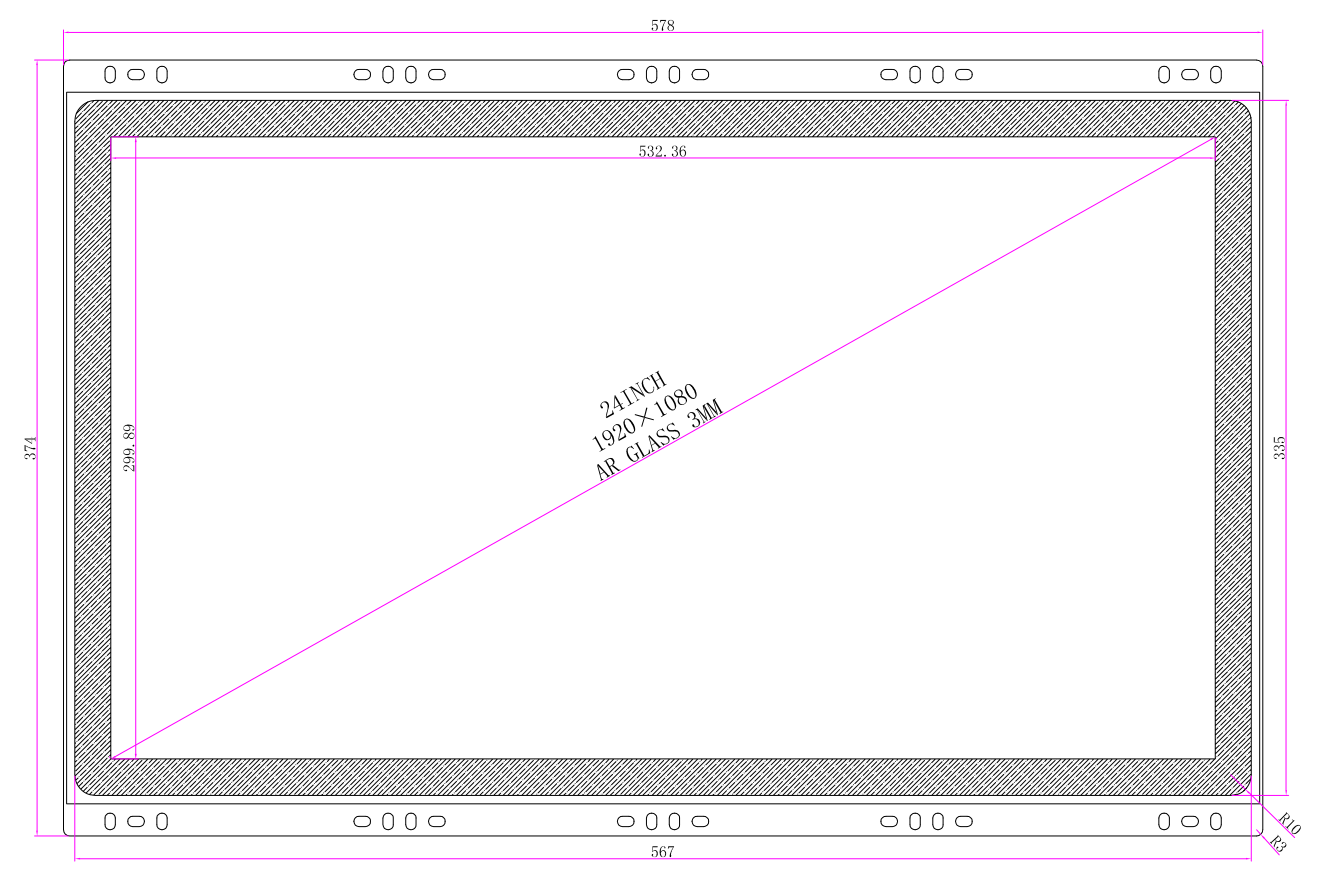

| Display active area | 531.36(W)x298.89(H) mm / 20.92x11.767 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits |
| Brightness control | OSD(Light sensor optional) |
| Contrast ratio | 5000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Treatment | AR UV protection |
| Surface Hardness | 7H |
| Luminousness | 85% |
| Touch Interface | USB (RS232 optional) |
| Touch controller IC | EETI 81 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air Bonding |
| Touch options | (5 wires restive touch, IR touch, no touch optional) |
| External I/O Ports | |
| Video input | 1×VGA, 1×DVI, 1×HDMI |
| Audio in/out | 1×3.5mm Line-out, 1×3.5mm Line-in |
| Touchscreen interface | 1×USB |
| Power connector | 1×Screwable 12V DC jack |
| Power Supply | |
| Working voltage | DC 12V (9-36V DC Optional) |
| Power consumption | 40W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| OSD | |
| Function Keys | 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文，简体中文 |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| Mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP rating | Front IP65 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 9.5kg Gross weight 13kg |

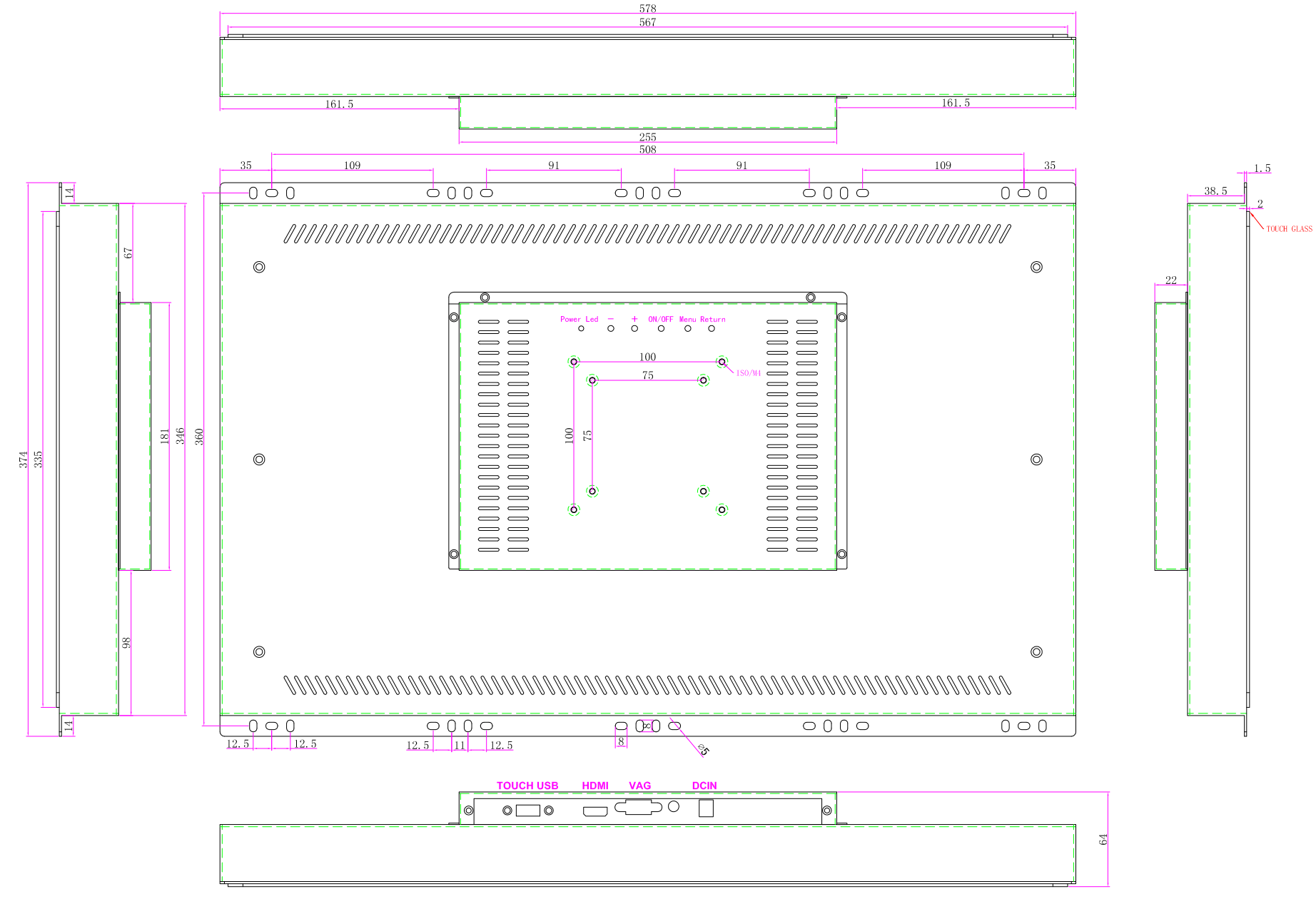

| Product Dimension | 580*374*64mm |
| Packing info | 1pcs/ctn 73*19*50cm/13kg 2pcs/ctn 73*36*50cm/26kg |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded mounting screws |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
