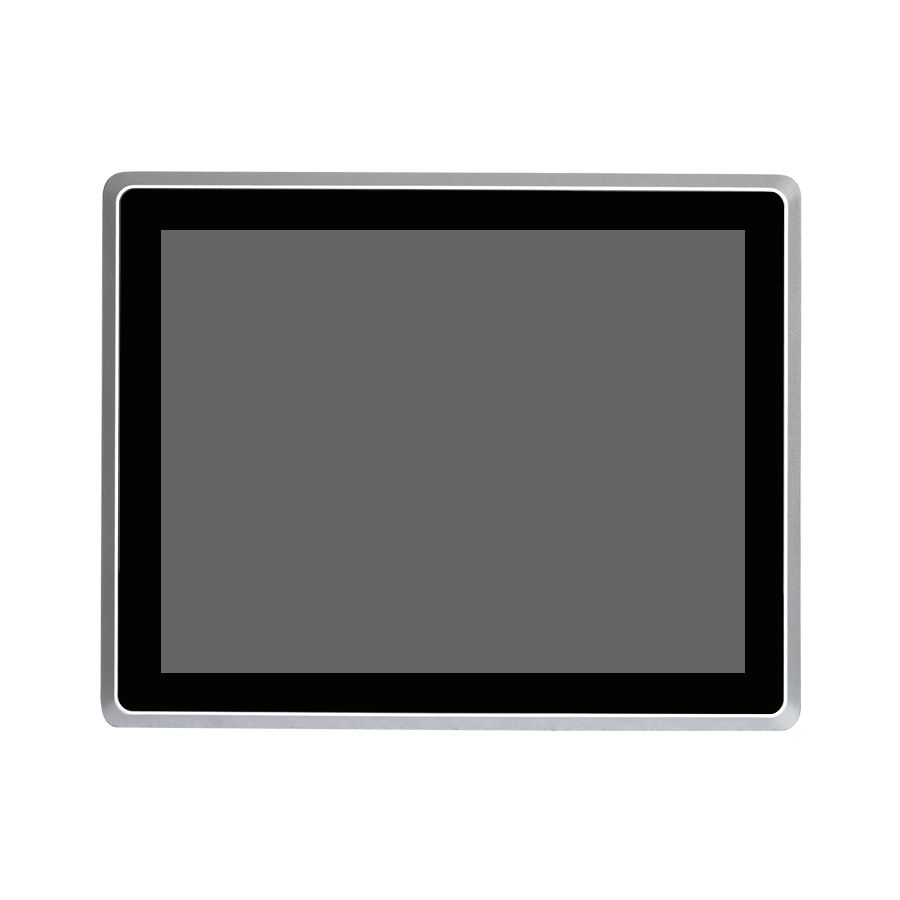

Industrial Touchscreen Android SC300E Feature:
1. Aluminum alloy frame with sandblasting and oxidation process, anti-UV and anti-discoloration treatment, IP65 waterproof front shell, narrow frame design
2. Industrial-grade LCD screen, full viewing angle, 1000 brightness visible under sunlight, PWM software to adjust brightness
3. 10 points capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface is treated with AG anti-glare treatment
4. EETI touch control solution, normal touch when there are water droplets on the touch screen
5. Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
Industrial Touchscreen Android SC300E Price Specification:
| PC | |
| CPU | Intel® Core i5-7200U, Dual Cores, Quad Threads, Base 2.5 GHz, Turbo 3.1 GHz, Optional J4125/J 6412, 8th/10th/12th i3 i5 i7 |
| Memory | 1* DDR4 supports 2133/2400MHz memory, maximum support 32G |
| Storage Capacity | 1* MSATA, 1* SATA 3.0, 1* SATA_PWR pin |
| Graphics | Intel(R) HD Graphics 620(128M) |
| Audio | High Definition Audio Device Intel(R) Display Audio |
| Network | Realtek RTL8111E |
| Wireless Network | WIFI, Bluetooth, 4G Optional |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| I/O | |

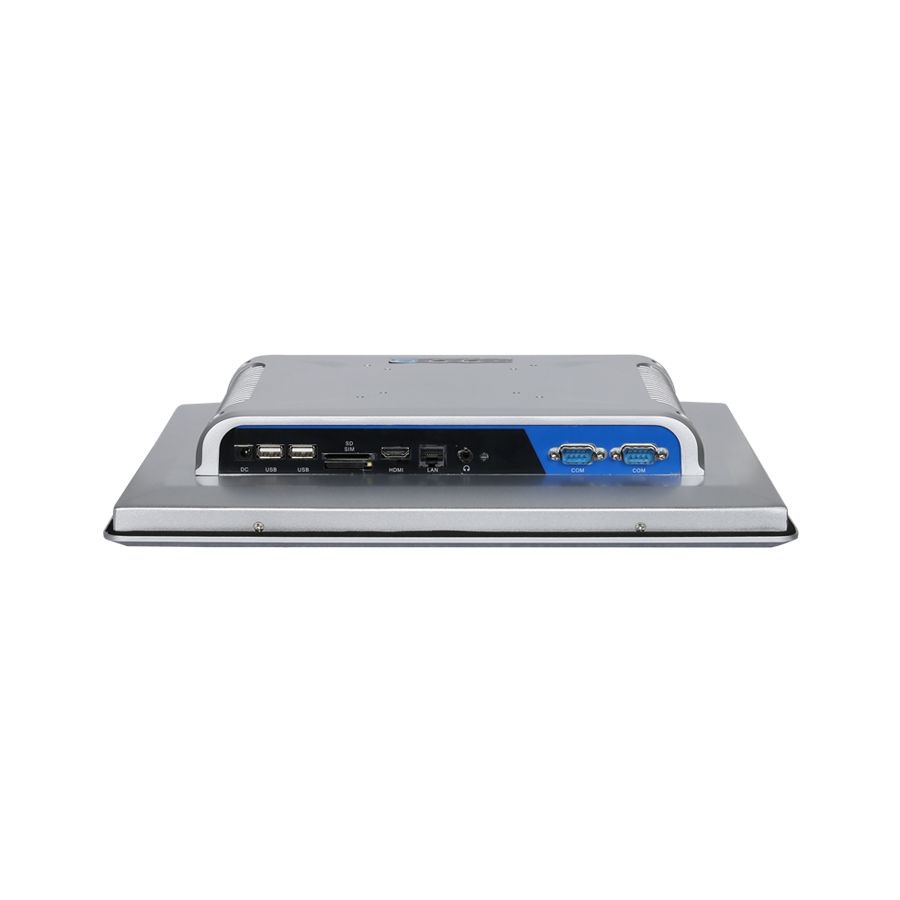

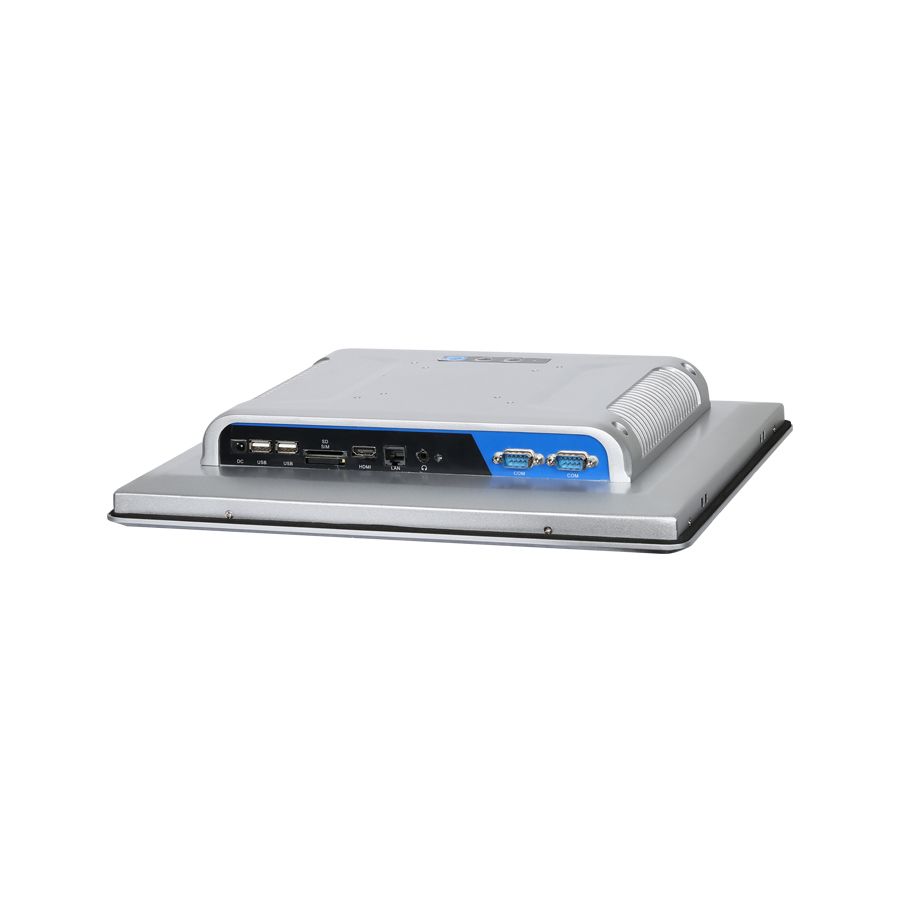

| USB | 2*USB2.0, 2*USB2.0 |
| COM | 2* COM RS232 |
| LAN | 1* RJ45 (2* RJ45 Optional) |
| Video Outputs | 1*VGA, 1*HDMI |
| Audio | 1* 3.5mm Line-out, 1* 3.5mm Line-in |
| Power input | 1* 12V DC jack, 1* 2PIN aviation lockable DC jack Optional |
| Other | 1* Power on/off button, 1* WIFI antenna jack male, 1*10PIN GPIO |
| LCD panel | |
| Screen diagonal | 10.1"-21.5" |
| Color | 16.7M colors |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | PWM Brightness Adjustment |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M colors |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 81 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air bonding(Optical bonding optional) |
| Touch optional | Resisive touch, non touch, IR touch optional |
| Power Supply | |
| Working voltage | DC 9V - 36V |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |

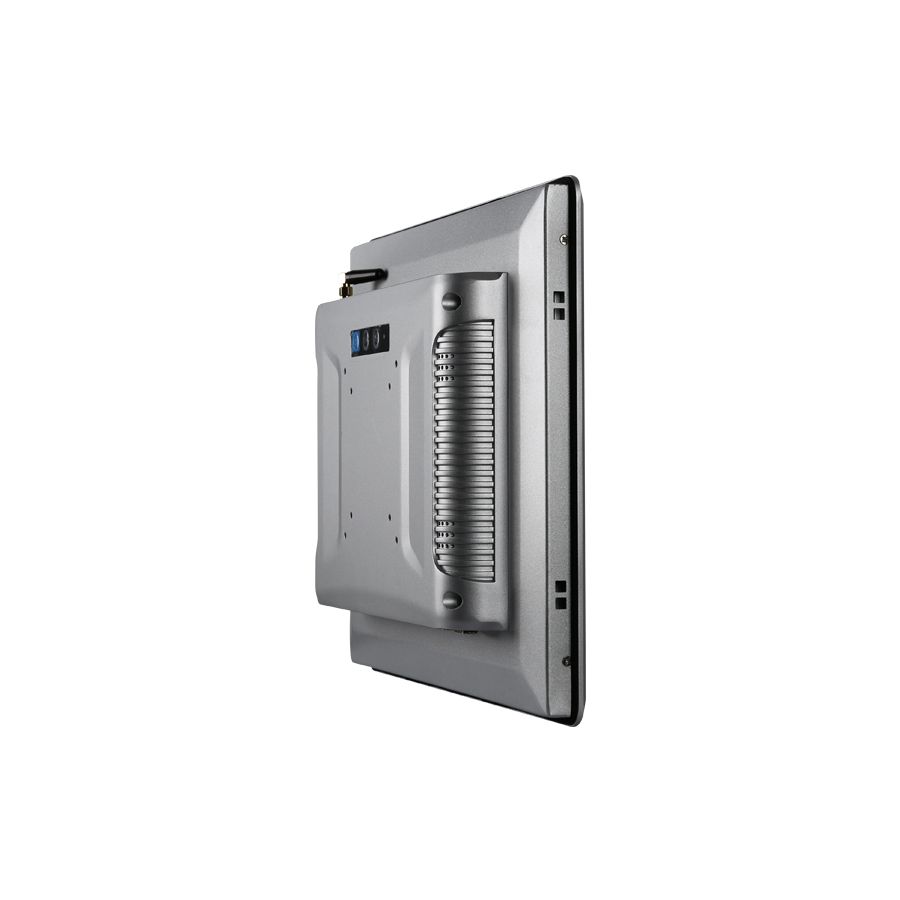

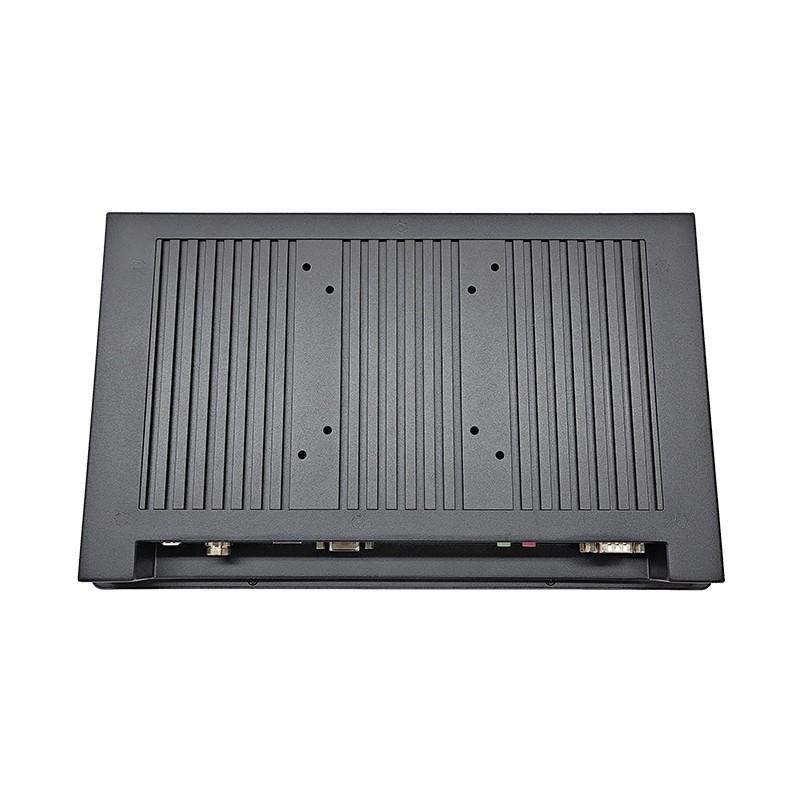

| VESA mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP grade | Front IP65 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C(-4℉) to 70°C(158℉), Storage: -30 °C(-22℉) to 80°C(176℉) |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Accessories | Power cable, Power supply, Embedded mount screws, Antenna, GPIO terminal connector |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1366*768 | 16:9 | no touch/capacitive/resistive |
| 10.4" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 11.6" | 1920*1080 | 16:9 | no touch/capacitive |
| 12.1" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 12.1" | 1280*800 | 16:10 | no touch/capacitive |
| 15" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 15.6" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 17" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 17.3" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 19" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 19" | 1440*900 | 16:10 | no touch/capacitive/resistive |
| 21.5" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
Components:
-Package included: Industrial Touchscreen Android SC300A, power adapter and power cord;
-Accessories or Parts: User manual, warranty card;
Certifications:
Quality Inspection:
FAQ:
1)What is the MOQ?
A: MOQ is 1 pcs.
Sample is available for customer to check the quality before bulk order.
2)Do you accept OEM?
A: Yes,OEM and ODM is warmly welcomed.
It is our company’s strength,we can customize the LCD monitor so that can fully meet customers’ requirements.
3)What payment methods does your company accept?
A: T/T, Western Union and Paypal;
4)What’s the delivery time?
A: Sample:5-15 working days. bulk order 15-30 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.
5)What are the shipping ways?
A: We will ship the goods according to customer’s demand.
Normally by DHL,UPS,Fedex,TNT.
For bulk order,we also can ship by air,by sea.

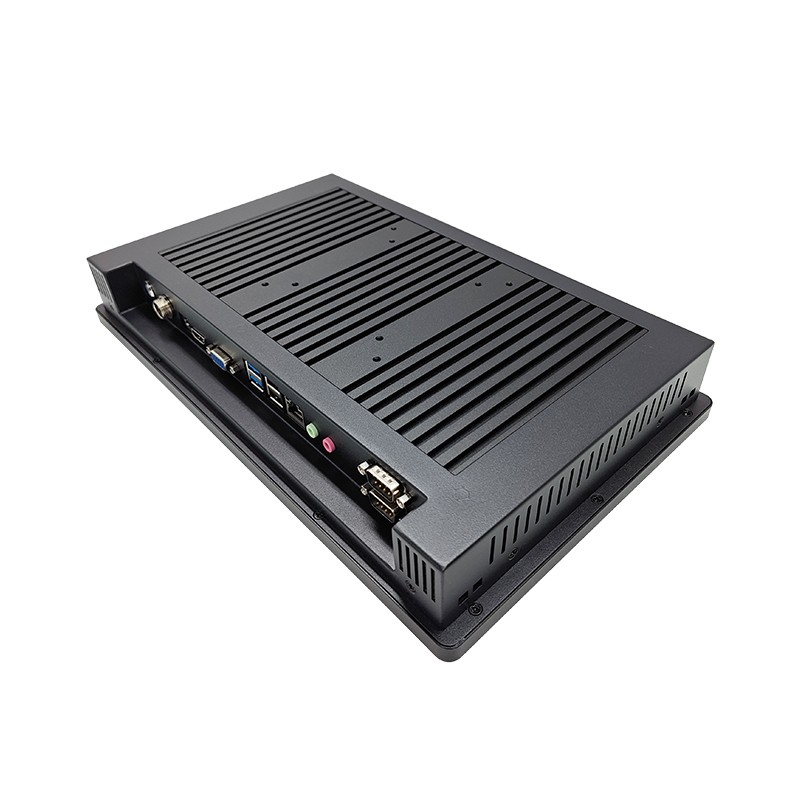

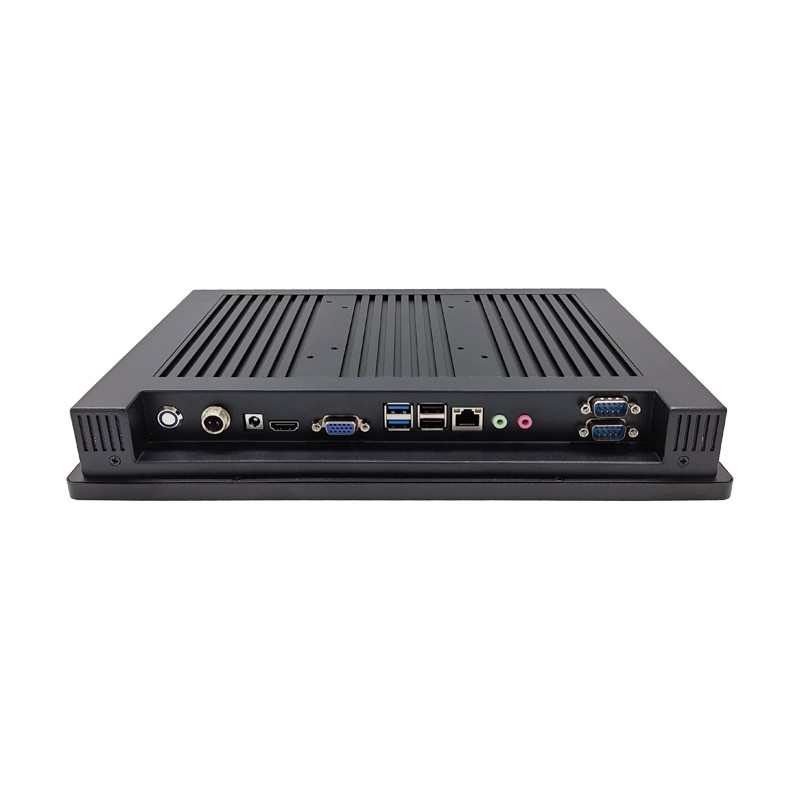

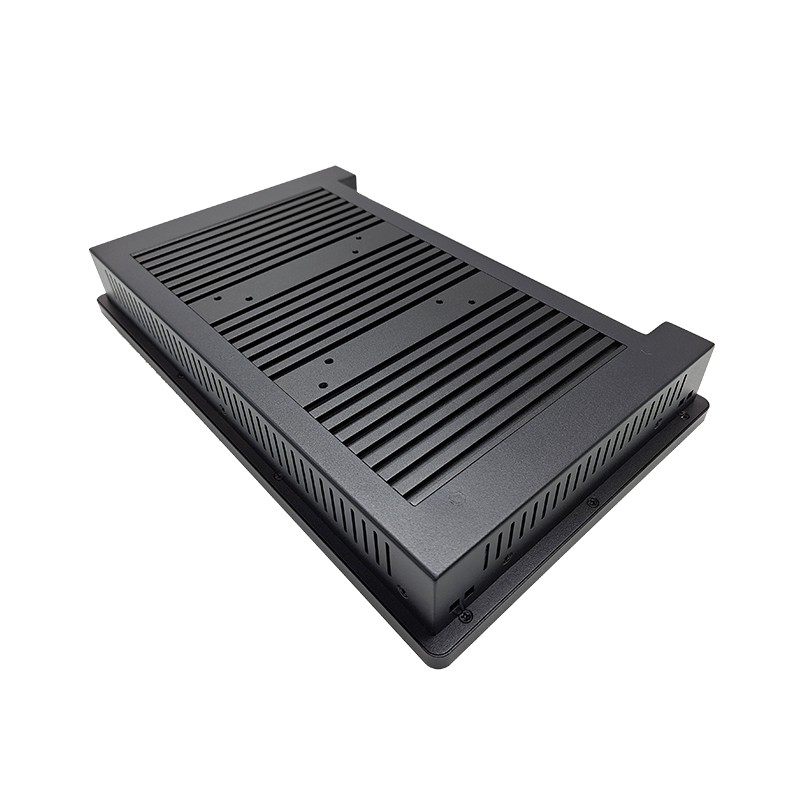

13.3" Capacitive touch PC
