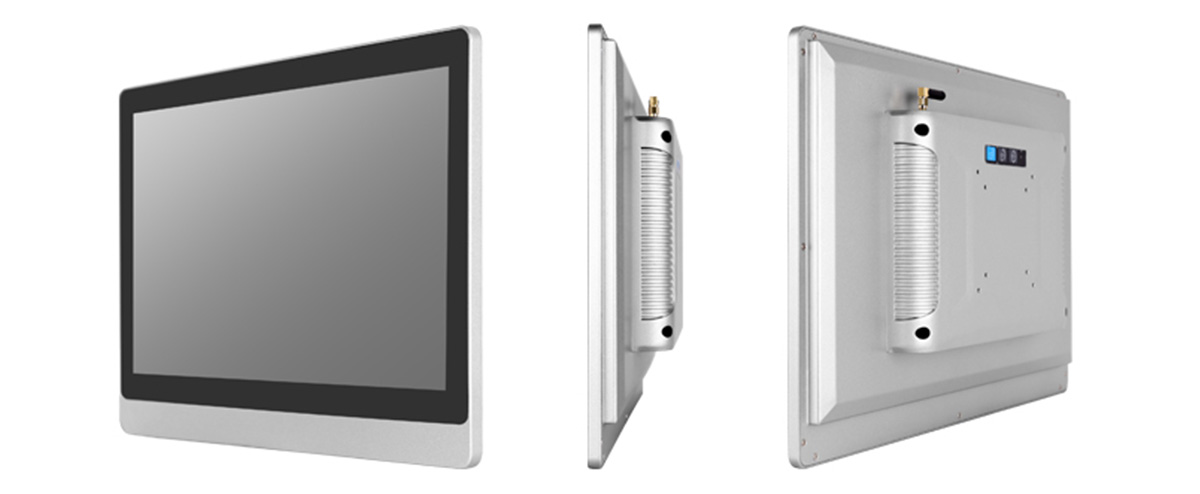

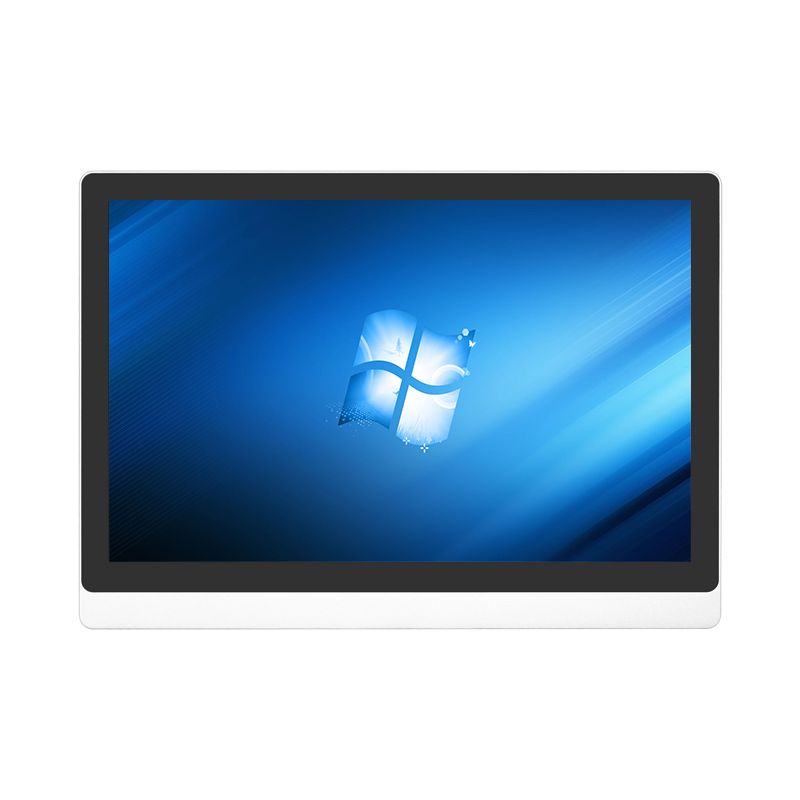

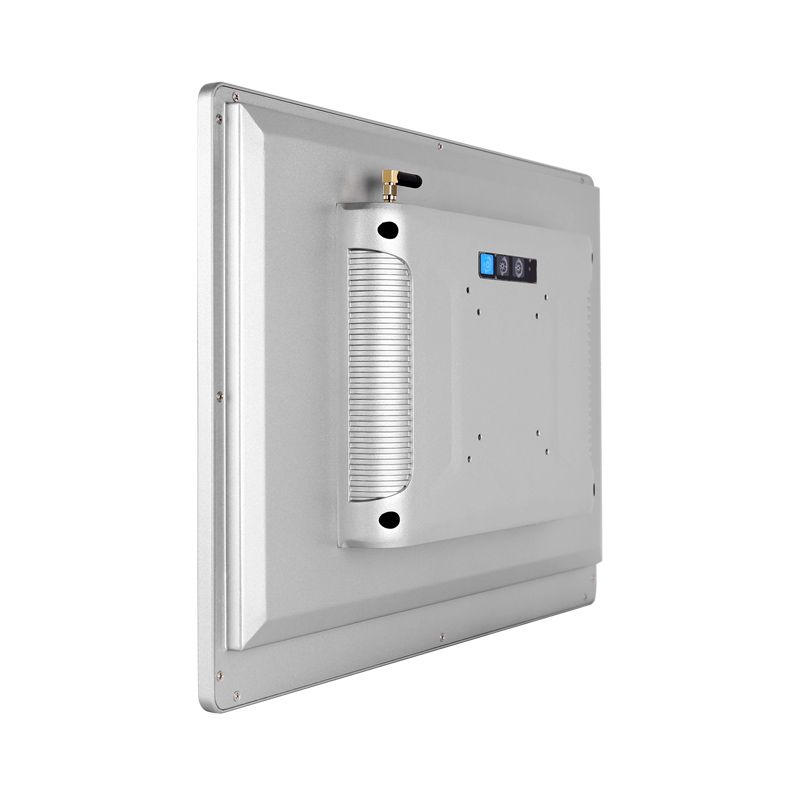

Industrial Panel PC SC400M Feature:
1. Super thin and ultra narrow bezel, Fully enclosed design, the whole PC is dustproof.
2. Seamless design, front panel IP65 waterproof.
3. Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. Support wall mounting, desk stand, embedded mounting.
8. 3 COM optional, RS232/RS422/RS485 optional.
Industrial Panel PC SC400M Specification:
| PC | |
| CPU | Intel Core i7-1250U, 10 core, 4.7GHz, fanless, Optional J4125/J6412, 6th/8th/10th/12th i3 i5 i7 |
| Memory | 8G |
| Hard Drive Capacity | 256G SSD |
| Hard Drive Optional | SSD: 128GB, 512GB, 1TB, 2TB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |

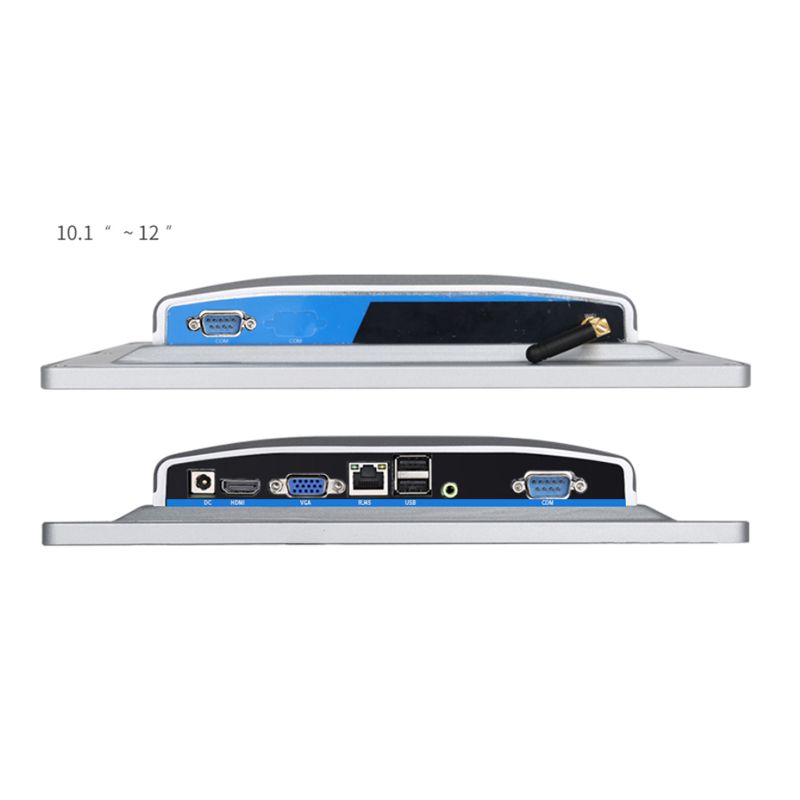

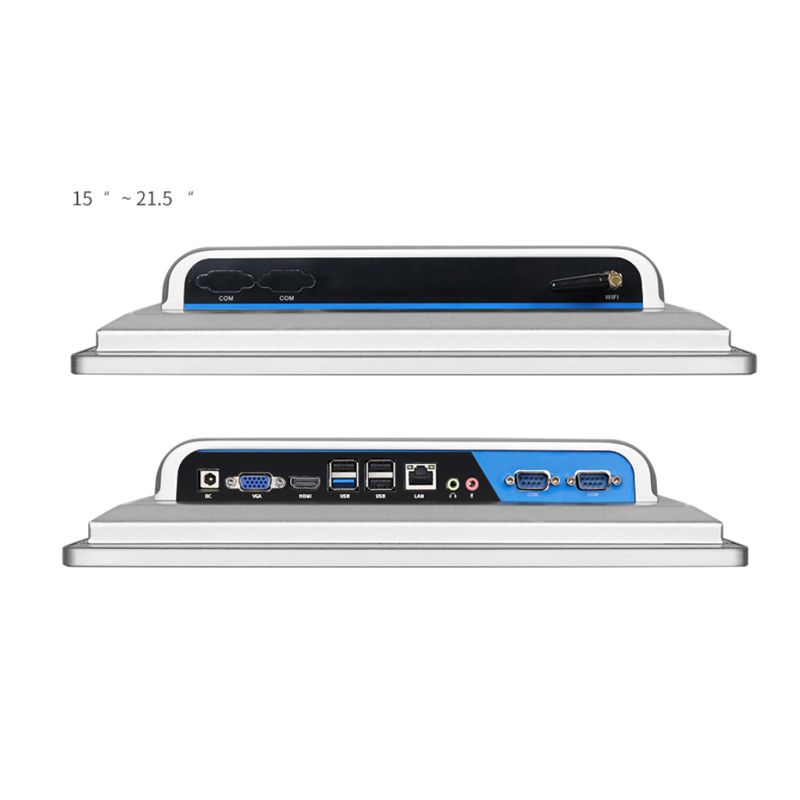

| I/O Interface | 2xUSB 2.0, 2xCOM RS232 |
| 1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 10.1"-21.5" |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 cd/m2 |
| Response time | 5ms |
| Backlight type | LED |
| Backlight life time | ≥50K hours |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch options | 5 wire resistive touch |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |

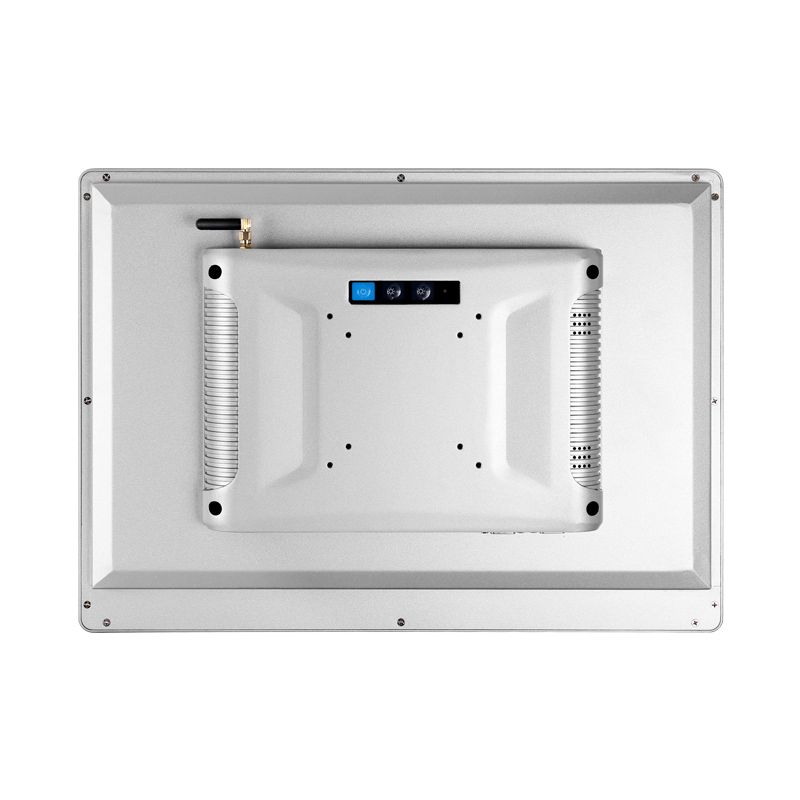

| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Other | |
| Mounting way | wall mounting bracket (optional) |
| desk stand holder (optional) | |
| Accessories | Power adapter, power cord, user manual, warranty card |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |

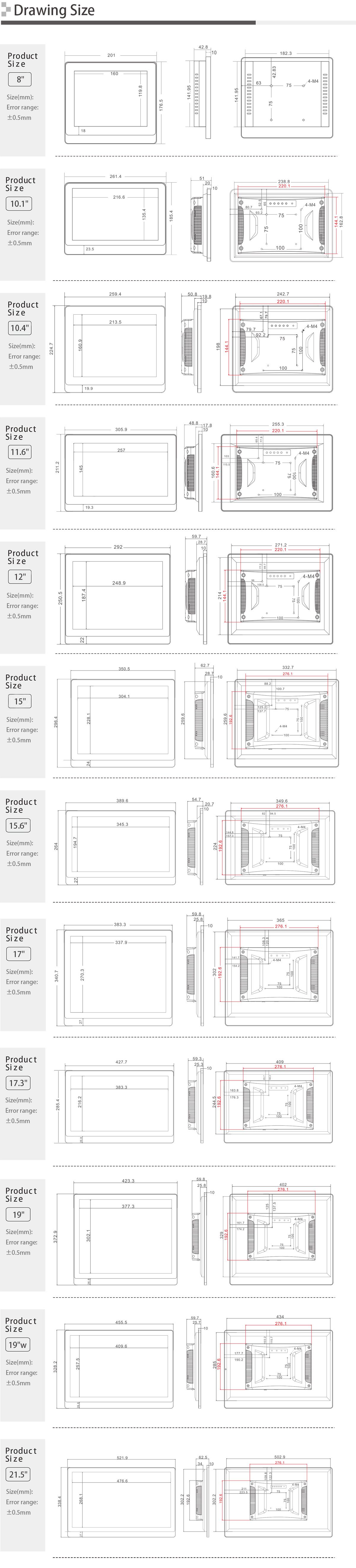

Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 8" | 1024*768 | 4:3 | no touch/capacitive/resistance |
| 10.1" | 1280*800 | 16:10 | no touch/capacitive/resistance |
| 10.4" | 1024*768 | 4:3 | no touch/capacitive/resistance |
| 11.6" | 1920*1080 | 16:9 | no touch/capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | no touch/capacitive/resistance |
| 15" | 1024*768 | 4:3 | no touch/capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | no touch/capacitive/resistance |
| 17" | 1280*1024 | 5:4 | no touch/capacitive/resistance |
| 17.3" | 1920*1080 | 16:9 | no touch/capacitive/resistance |
| 19" | 1280*1024 | 5:4 | no touch/capacitive/resistance |
| 19" | 1440*900 | 16:10 | no touch/capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | no touch/capacitive/resistance |
Components:
-Package included: Industrial Panel PC SC400X, Power adapter, Power cord;
-Accessories or Parts: VGA/HDMI Video cable, Touch cable;
Industrial Panel PC SC400M Manufacturing process:
Certifications:
Where can Industrial Panel PC SC400M be used?
What after-sales service do we provide?
1. We offer a life-long maintenance that is free in the first year.
2. In the first year after you received the products , if there is quality problem happening to the products,
pls send us the pictures or video to showing the fault phenomenon, so can help
our technicians to analyze the cause of problem, then we will send you the necessary spare parts
and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us,
we will repair it and resend it to you in one week. If the defective product can't be
repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free warranty.
5. After the first year of free warranty, we will charge you the factory cost for the
replaced accessories, free for maintenance.
6.
Pls feel free to contact our customer service team via Service hotlike.
After receipt of your complaint feedback, we will appoint the qualified
person to contact you within 12 hours and solve your complaint.
FAQ:
1)What is the MOQ?
A: MOQ is 1 pcs.
Sample is available for customer to check the quality before bulk order.
2)Do you accept OEM?
A: Yes,OEM and ODM is warmly welcomed.
It is our company’s strength,we can customize the LCD monitor so that can fully meet customers’ requirements.
3)What payment methods does your company accept?
A: T/T, Western Union and Paypal;
4)What’s the delivery time?
A: Sample:5-15 working days. bulk order 15-30 working days.
For customized products,delivery time is negotiable.
We will try our best to meet your delivery time.
5)What are the shipping ways?
A: We will ship the goods according to customer’s demand.
Normally by DHL,UPS,Fedex,TNT.
For bulk order,we also can ship by air,by sea.
