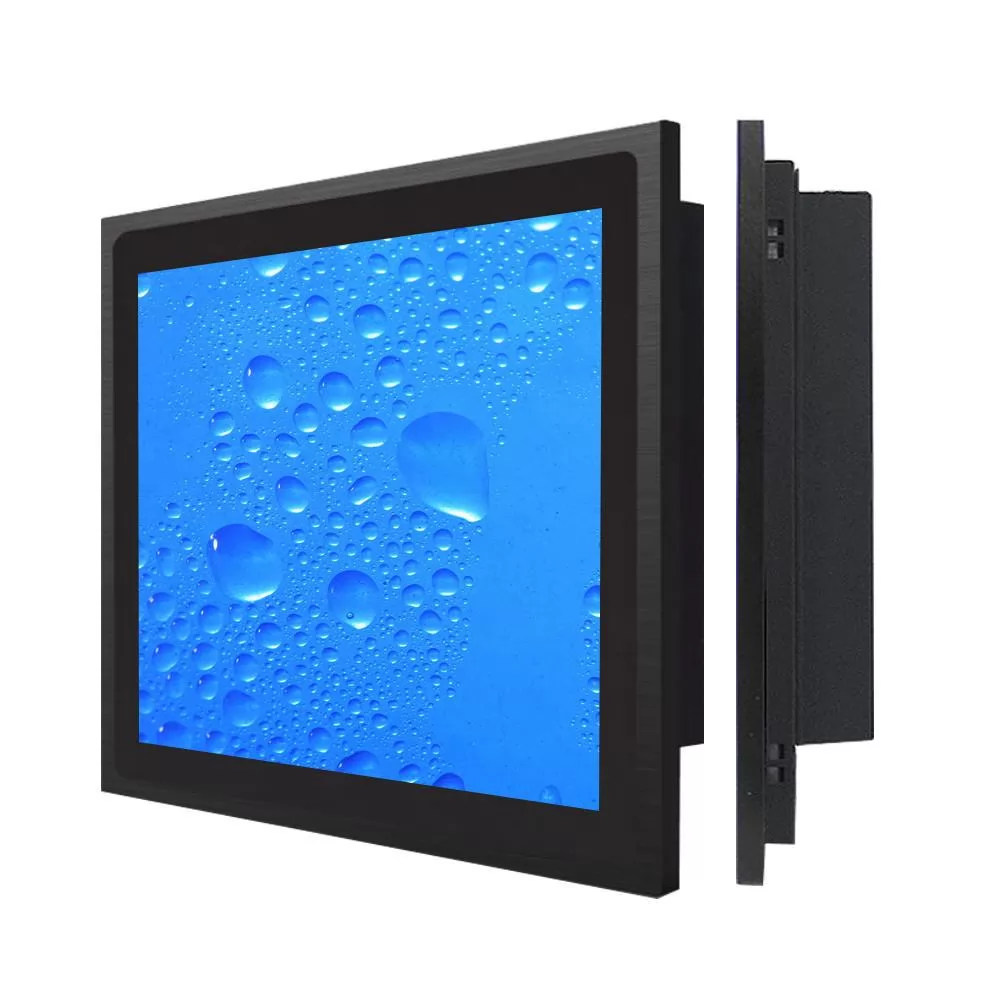

Features:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. High performance motherboard, 7x24 continuous operation.
5. Support wall mounting,embedded mounting,desk stand mouting etc.
Specification:
| PC | |
| CPU | Intel® Celeron J1900 (I3/I5/I7 optional) |
| Chipset | Intel Valley View SSA-CUnit |
| Memory | 2G DDR3, ( Max. 8G) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 3×USB 2.0, 1×USB 3.0, 2 x COM RS232 |
| 1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 10.1"-21.5" |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Backlight type | LED |
| Backlight life time | ≥50K hours |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch options | 5 wire resistive touch |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Other | |
| Mounting (options) | open frame |
| embedded mounting screws | |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Accessories | Power adapter, embedded screws, user manual, warranty card |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
