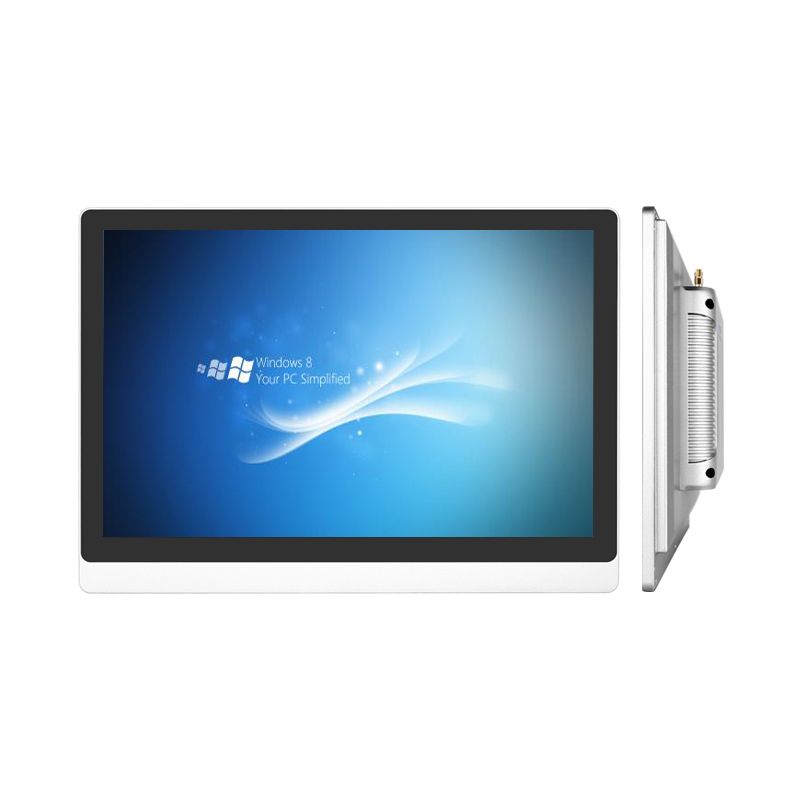

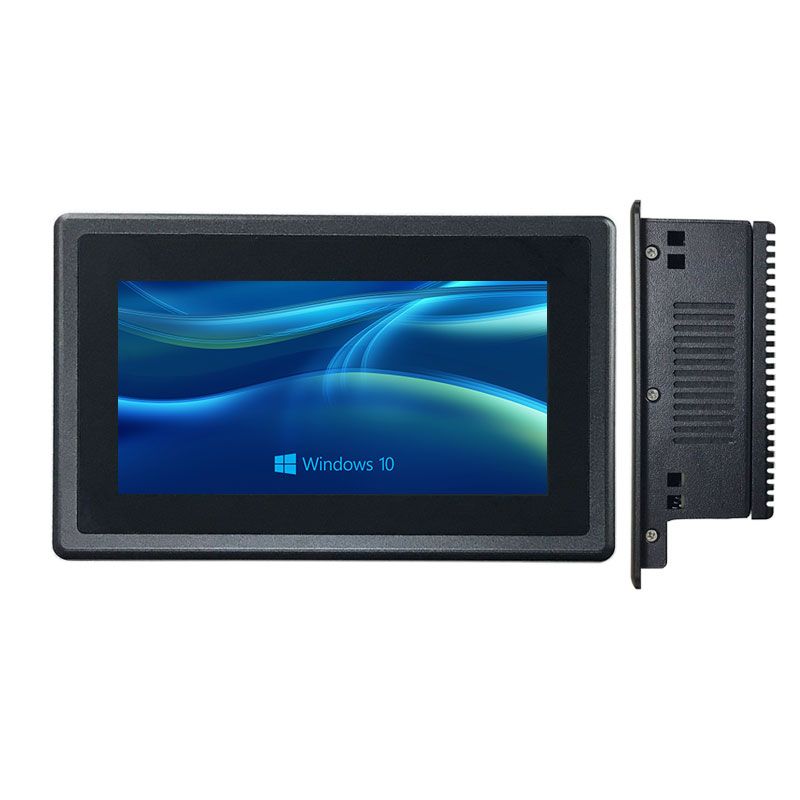

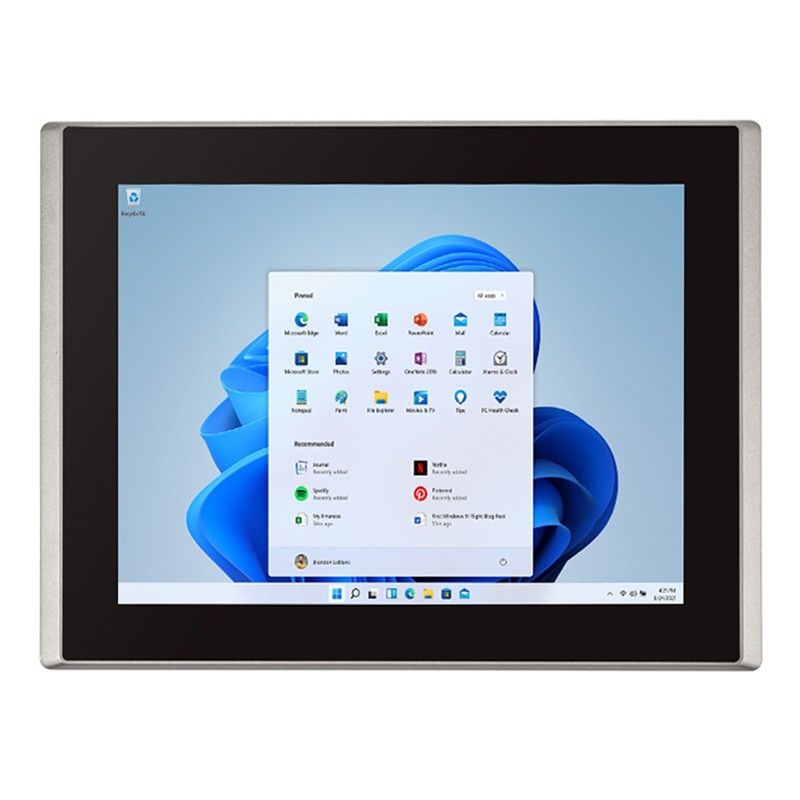

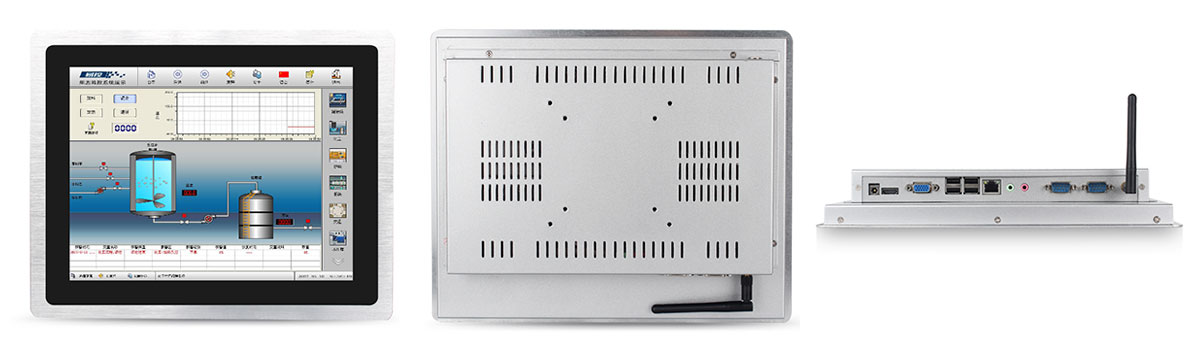

Industrial Panel PC SC103M Feature:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. High performance motherboard, 7x24 continuous operation.
5. Ultra-thin front bezel 3mm, ideal for embedded mounting.
Industrial Panel PC SC103M Specification:
| PC | |
| CPU | Intel® Celeron J1900 (I3/I5/I7 optional) |
| Chipset | Intel Valley View SSA-CUnit |
| Memory | 2G DDR3, (Max. 8G) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2×USB 2.0, 2×USB 3.0, 2 x COM RS232 |
| 1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 7"-21.5" |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+nits |
| Response time | 5ms |
| Backlight type | LED |
| Backlight life time | ≥50K hours |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch options | 5 wire resistive touch |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Accessories | Power adapter, embedded screws, user manual, warranty card |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 7" | 1024*600 | 16:9 | no touch/capacitive/resistive |
| 8" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 10.1" | 1280*800 | 16:10 | no touch/capacitive/resistive |
| 10.4" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 13.3" | 1920*1080 | 16:9 | no touch/capacitive |
| 12.1" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 12.1" | 1280*800 | 16:10 | no touch/capacitive/resistive |
| 15" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 15.6" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 17" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 17.3" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 19" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 19" | 1440*900 | 16:10 | no touch/capacitive/resistive |
| 21.5" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
Components:
-Package included: Industrial Panel PC SC203X, power adapter and power cord;
-Accessories or Parts: User manual, warranty card;
How to install the Industrial Panel PC SC103M ?
Certifications:
What after-sales service do we provide?
1. We offer a life-long maintenance that is free in the first year.
2. In the first year after you received the products , if there is quality problem happening to the products,
pls send us the pictures or video to showing the fault phenomenon, so can help
our technicians to analyze the cause of problem, then we will send you the necessary spare parts
and teach you how to repair it, free of charge.
3.If we can't find out the cause of failure, you can return the defective product to us,
we will repair it and resend it to you in one week. If the defective product can't be
repaired, we will send you a new one for replacement, free of charge.
4. Please note that man-made damage is out the scope of free warranty.
5. After the first year of free warranty, we will charge you the factory cost for the
replaced accessories, free for maintenance.
6.
Pls feel free to contact our customer service team via Service hotlike.
After receipt of your complaint feedback, we will appoint the qualified
person to contact you within 12 hours and solve your complaint.
