Our company specializes in the production of industrial computer displays and independently develops a variety of fanless panel pcs. You can choose the one that suits you according to your current situation, or contact us to provide you with professional solutions.

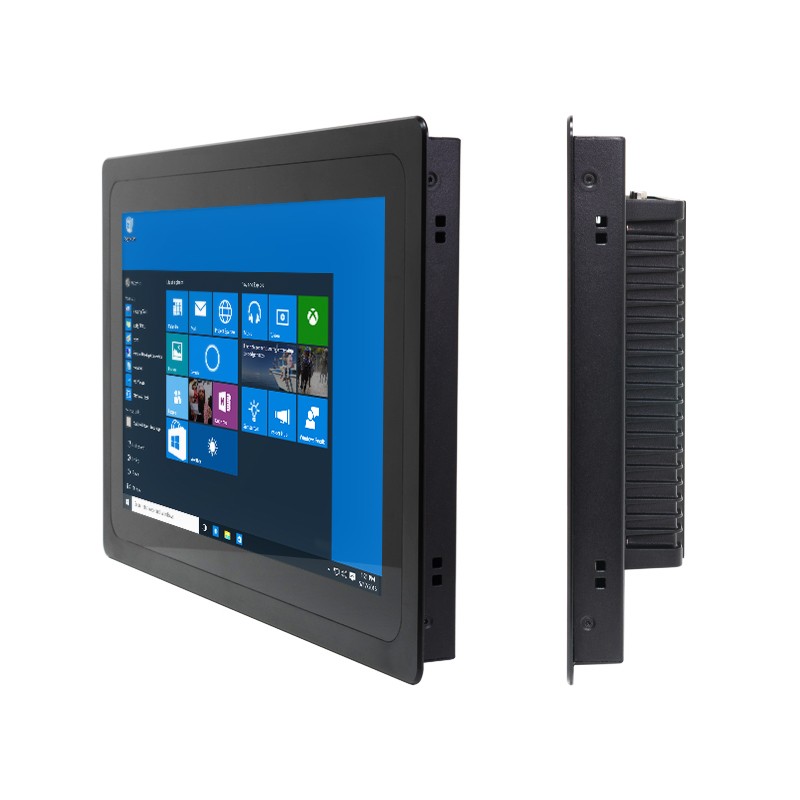

Features of Fanless Industrial Panel Pc
Fanless Design: The fanless industrial panel PC operates silently and efficiently without any moving parts, preventing dust buildup and reducing the need for maintenance.
Seamless & Durable Construction: Its fully enclosed design makes it dustproof, while the aluminum alloy shell provides superior heat dissipation and mechanical properties.
Wide Viewing Angle: The industrial-grade LCD panel offers a wide viewing angle and a high brightness of 300 nits, ensuring excellent visibility even in bright environments.
High-Performance Touch Screen: Featuring a multi-point PCAP touch panel, this fanless panel PC provides high sensitivity, fast response, and is protected by 2mm tempered glass for added durability.
24/7 Operation: Designed for continuous 24/7 operation, this panel PC is built to handle the demands of industrial automation and other high-performance tasks.
Application of Fanless Industrial Panel Pc
Our fanless industrial panel PCs are perfect for a wide range of industries including:
Industrial Automation: Ideal for factory control systems and process monitoring.
Outdoor Use: With IP65 front panel protection, it's built to withstand tough outdoor conditions.
Retail & Kiosks: Perfect for self-service kiosks, digital signage, and point-of-sale systems.
Healthcare: With its fanless design, it operates quietly in sensitive medical environments.
Why Choose Our Fanless Panel PCs?
Silent Operation: Enjoy the benefits of a fanless design, offering quieter operation compared to traditional systems.
Durability: The rugged aluminum alloy construction ensures longevity and protection in demanding environments.
Custom Solutions: Whether you need a specific size, storage capacity, or touch type, our fanless industrial panel PCs can be customized to fit your needs.
Long-Term Support: Backed by a 1-year warranty and CE, FCC, RoHS certification.
Specification
| Model:SC900M | |
| PC | |
| CPU | Intel® Celeron J4125, Quad core, 2.4GHz, Fanless |
| Memory | 4G DDR4 (8G optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 32G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI&Bluetooth/4G LTE Optional |

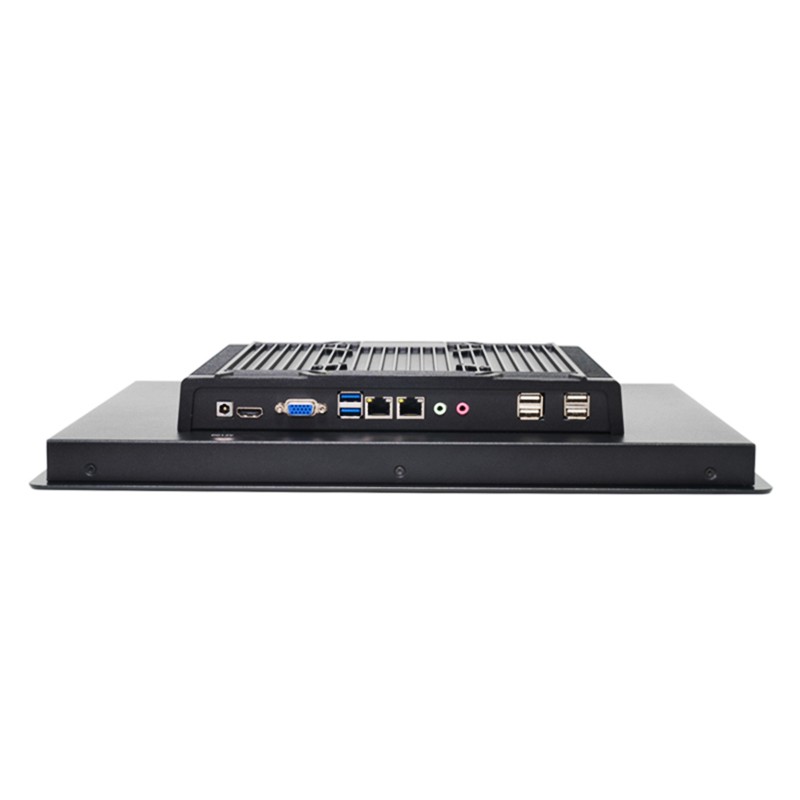

| I/O Interface | 2xUSB 3.0, 4xUSB 2.0, 2xCOM RS232 |
| 1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC/ Phoenix terminal | |
| Operation System | Support Windows 10/11, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 10.1" to 21.5" |
| Resolution | 1024*768,1280*800,1280*1024,1366*768,1440*900,1920*1080 |
| Aspect ratio | 4:3,5:4,16:9,16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 300 nits |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | (5 wire resistive touch optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12 |
| Power consumption | ≤25W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 70°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Other | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
