Features:
1. Aluminum alloy frame sandblasting oxidation process, anti-UV and anti-discoloration treatment, Full IP67 waterproof, narrow frame design, Gimble Mount design, support side M10 bracket installation
2. Industrial-grade LCD screen, full viewing angle, 1500 brightness visible in the sun, knob to adjust brightness
3. Touch button OSD
4. Isolated power input, support DC9-36V
5. 10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface AG anti-glare treatment

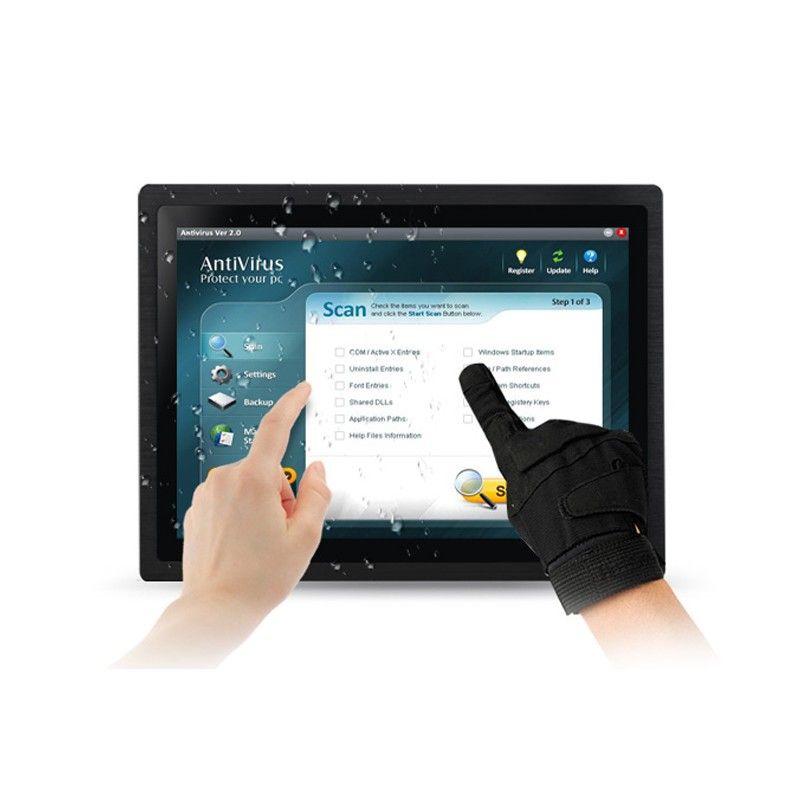

6. EETI touch control solution, normal touch when there are water droplets on the touch screen
7. Adopt industrial-grade components, 7x24 hours work, support wide temperature operation -20℃~70℃
8. Optical bonding between LCD and touch screen
9. With dimmer design, can adjust the brightness from 100% to 0
Specification:
| Model:SL156W | |
| LCD panel | |
| Panel size | 10.1"-32" |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | Dimmer/Knob, can adjust brightness from 100% to 0 |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 81 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch optional | Resistive touch, IR touch, non touch Optional |

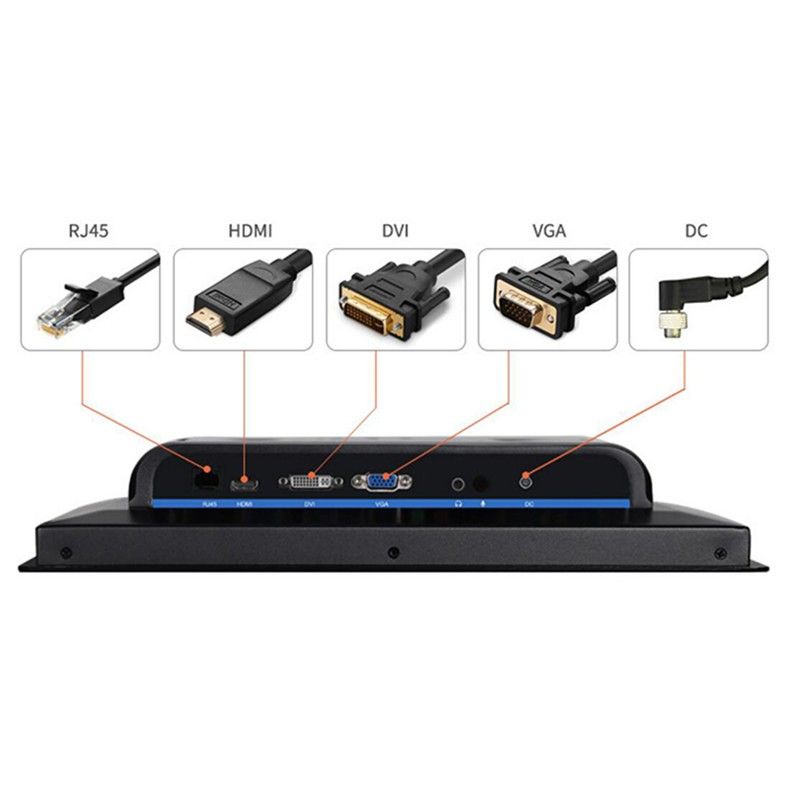

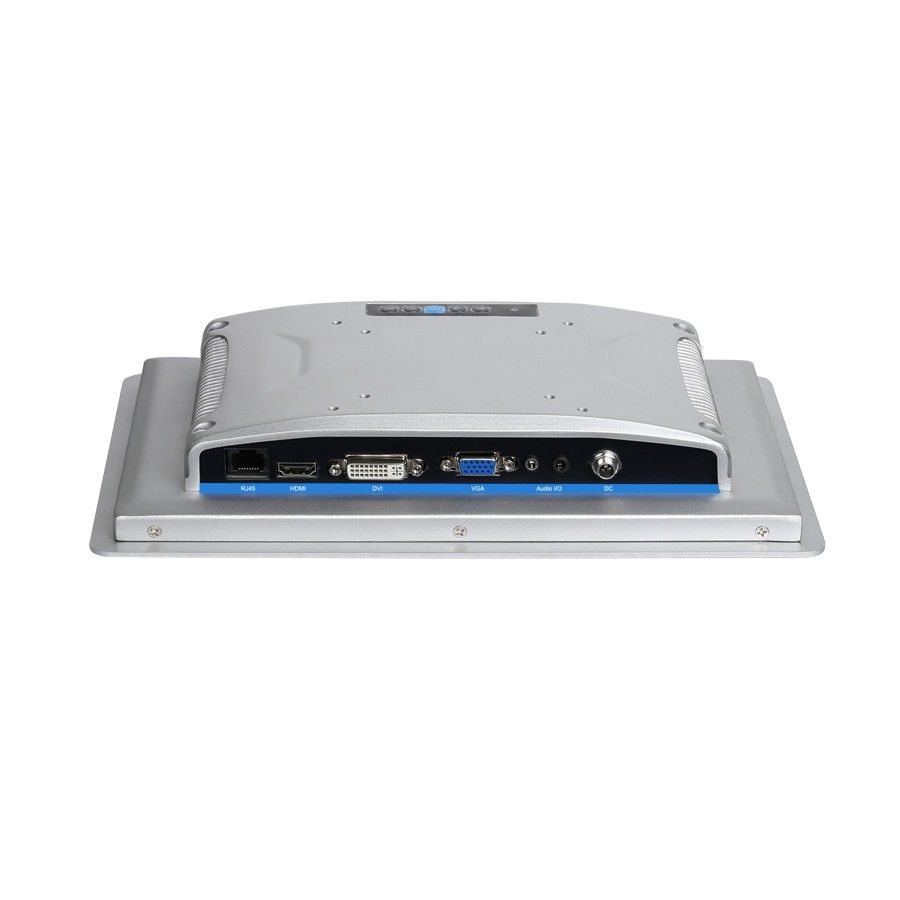

| External I/O Ports | |
| Video input | 1*IP67 HDMI |
| Touchscreen interface | 1*IP67 USB |
| Power connector | 1*IP67 DC 9-36V |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power consumption | 30W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| OSD | |
| Function Keys | 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文，简体中文 |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black, others optional |
| Mounting | VESA mount 75x75/100x100mm, Panel mount |
| IP rating | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Accessories | Power plug, Power supply, Waterproof USB touch cable, Waterproof HDMI cable |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1366*768 | 16:9 | no touch/capacitive/resistive |
| 10.4" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 11.6" | 1920*1080 | 16:9 | no touch/capacitive |
| 12.1" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 12.1" | 1280*800 | 16:10 | no touch/capacitive |
| 15" | 1024*768 | 4:3 | no touch/capacitive/resistive |
| 15.6" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 17" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 17.3" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
| 19" | 1280*1024 | 5:4 | no touch/capacitive/resistive |
| 19" | 1440*900 | 16:10 | no touch/capacitive/resistive |
| 21.5" | 1920*1080 | 16:9 | no touch/capacitive/resistive |
15.6 inch IP67 waterproof dimmer monitor
