Features:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.

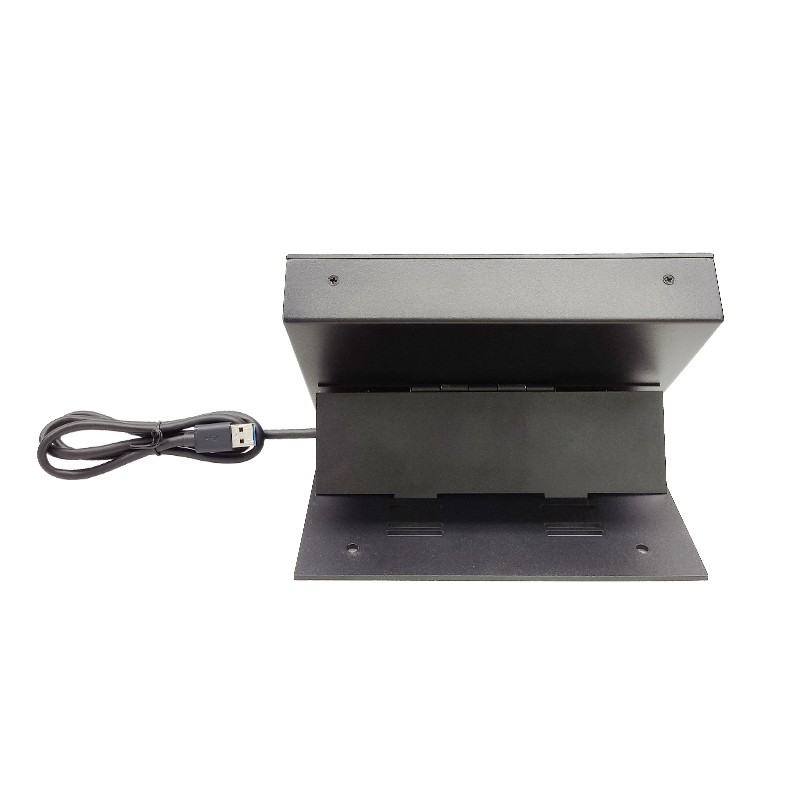

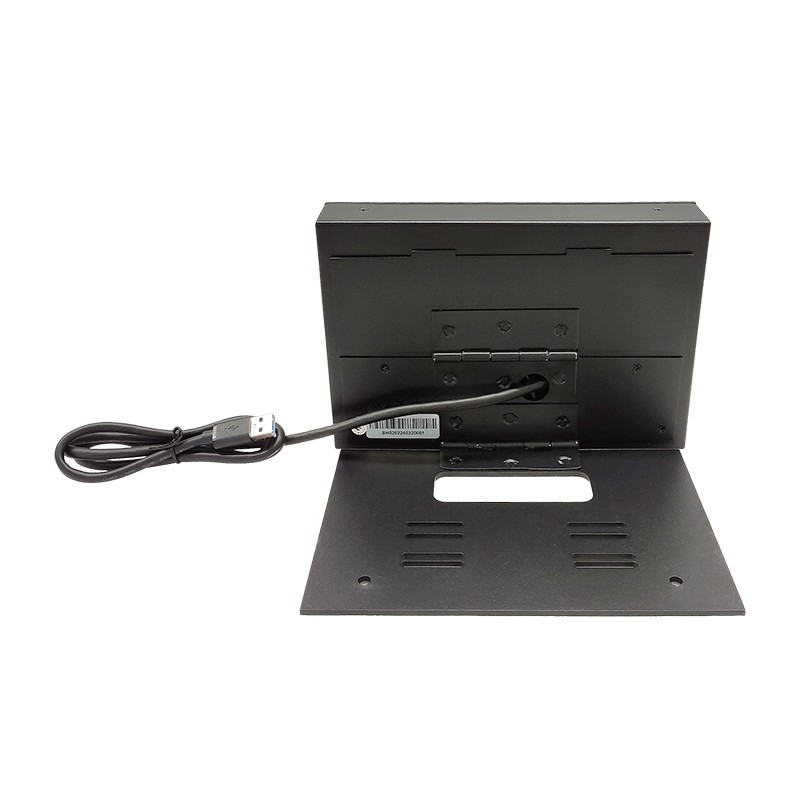

4. Three in one cable, USB port with touch, DC, Signal together.
5. With stand optional.
6. High performance mainboard, 7x24 continuous operation.
7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
Specification

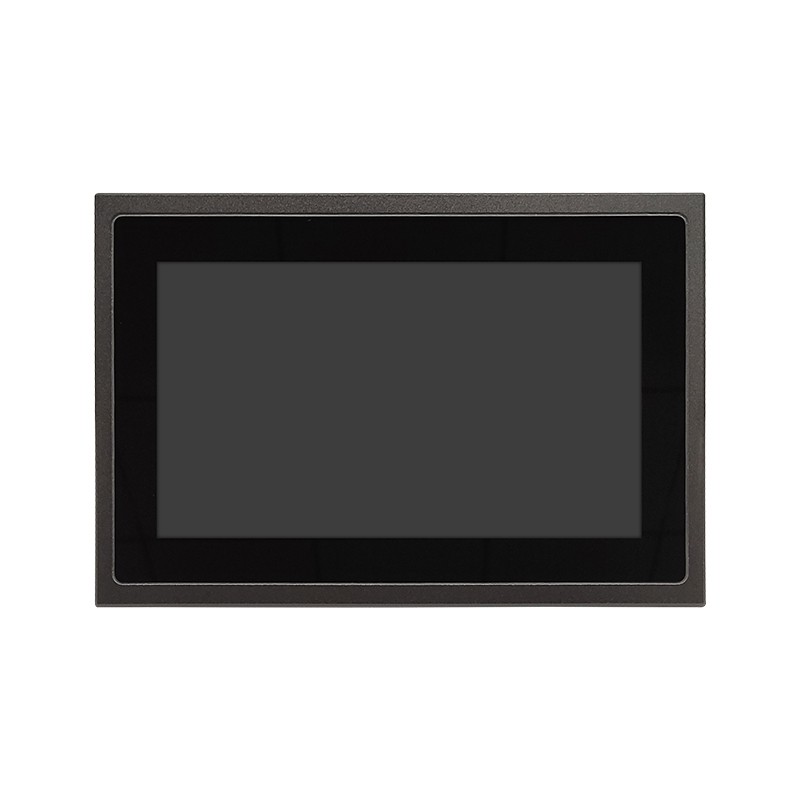

| Model:SL07 | |
| LCD panel | |
| Panel size | 7" |
| Display active area | 157.21(W)x89.49(H) mm / 6.189x3.523 in |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 300 nits(1000 nits optional) |
| Brightness control | OSD |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/60°/70° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 30K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | N/A |
| Luminousness | ≥90% |
| Touch controller IC | ILITEK5200 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air Bonding |
| Touch options | (5 wires restive touch, IR touch optional) |
| External I/O Ports | |
| USB | Integrated USB touch, DC input, Signal input |
| OSD | |
| Function Keys | 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文，简体中文 |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| Mounting | VESA mount 75*75mm |
| IP rating | Front panel IP65 |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 to 80°C, storage: -30 to 80°C |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Net weight | 1.6kg |
| Gross weight | 2.3kg |
| Product Dimension | 194.1mm*129.6mm*47mm |
| Packing size | 45×33×16cm |

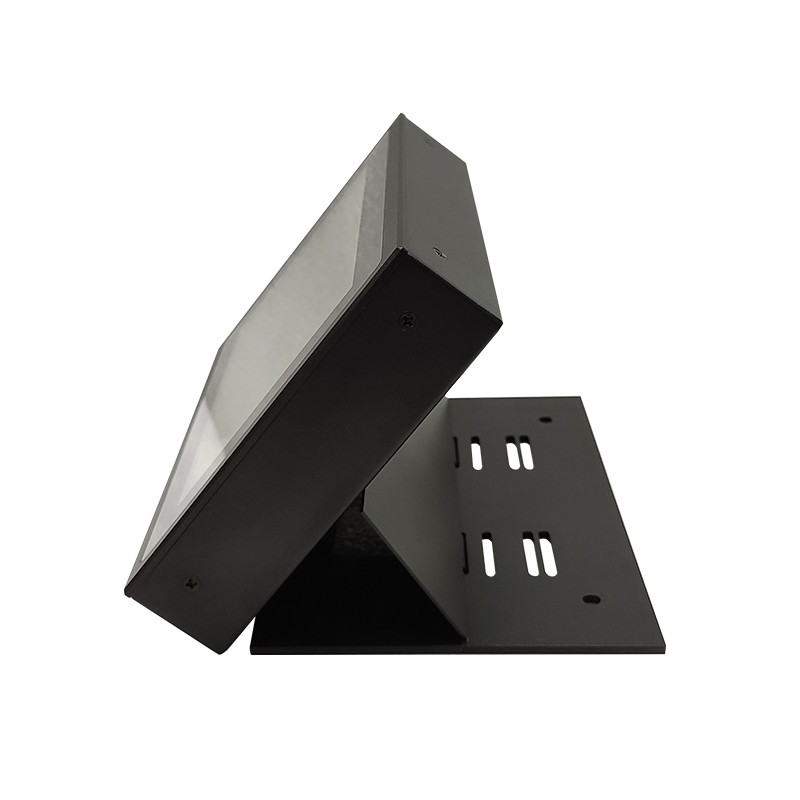

| Accessories | Table stand optional |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
