Features:
1. Aluminum alloy frame with sandblasting oxidation process, anti-UV and anti-discoloration treatment, front IP65 waterproof
2. Industrial-grade LCD screen, full viewing angle
3. 10-point capacitive touch screen, protective layer is 2mm tempered glass (chemically strengthened), hardness reaches 7H
4. Custom emergency button hole
5. Custom side handle
6. Custom keyboard tray
7. Use industrial-grade components, work 24/7
Specification
| LCD panel | |
| Panel size | 23.8" |
| Display active area | 527.04(W)x296.46(H) mm / 20.75x11.672 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 300 nits |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | N/A |
| Luminousness | ≥85% |
| Touch controller IC | ILITEK5200 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air bonding(Optical bonding optional) |
| Touch options | (5 wires restive touch, IR touch, non touch optional) |
| External I/O Ports | |
| Video input | 1×VGA, 1×DVI, 1×HDMI |
| Audio in/out | 1×3.5mm Line-out, 1×3.5mm Line-in |
| Touchscreen interface | 1×USB |
| Power connector | 1×Screwable 12V DC jack, 1× 3-pins Phoenix Terminal 12V DC |
| Power Supply | |
| Working voltage | DC 12V (9-36V DC Optional) |
| Power consumption | 22W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| OSD | |
| Function Keys | 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文，简体中文 |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black, Silver, White, other color optional |
| Mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP rating | Front panel IP65 |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -10 °C ~ 60°C (14°F ~140°F) Storage: -20 °C ~ 70°C (-4°F ~158°F) |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Weight | Net weight 8.4kg |

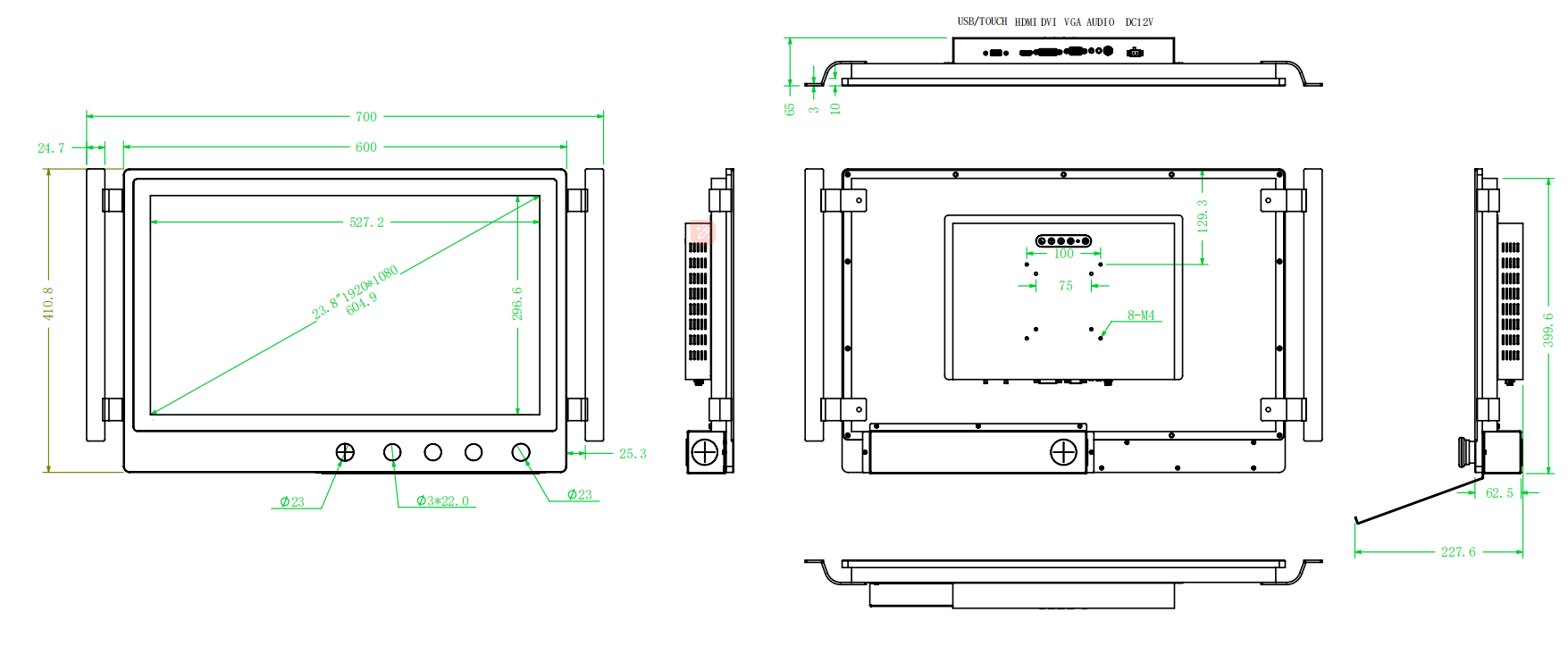

| Product Dimension | 700*410.8*62.5mm |
| Packing info | 1pc/ctn 84*19*58cm 16kg |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded mounting screws |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
