Features
1. Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , Full IP67 waterproof and dustproof, Waterproof connector, and additional mounting strips are added on the side
2. Industrial LCD panel, full view angle, 1000nits sunlight readable, with light sensor for auto dimming brightness
3. 10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment

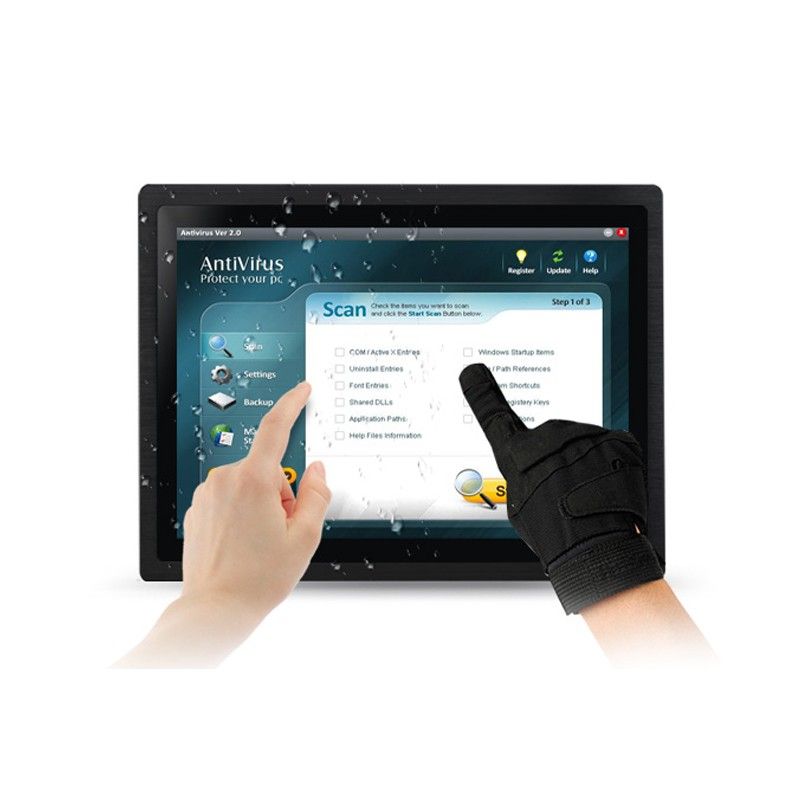

4. EETI waterproof solution, the touch function can work well with drop water on the screen
5.The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F)
6. Optical bonding between touch screen and LCD
7. The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
Specification
| Model:SL133W | |
| LCD panel | |
| Panel size | 13.3" |
| Display active area | 293.76(W)x165.24(H) mm/11.565x6.506 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch optional | Resistive touch, IR touch Optional |

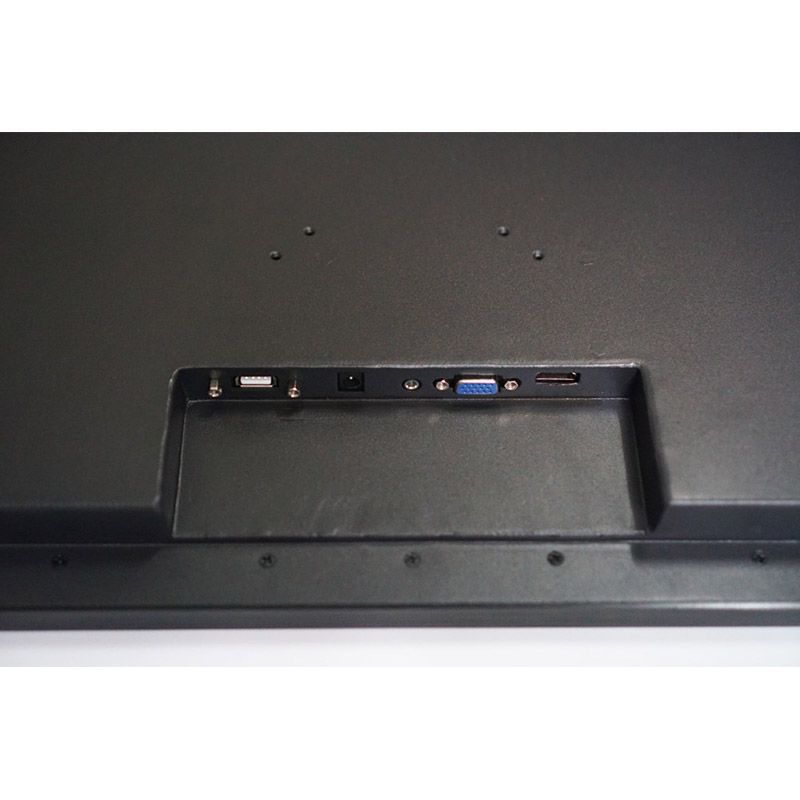

| External I/O Ports | |
| Video input | 1*IP67 HDMI |
| Touchscreen interface | 1*IP67 USB |
| Power connector | 1*IP67 DC 9-36V |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power consumption | 25W |
| Power adapter | AC 100 ~ 240V input and DC [email protected] MAX output, 90W |
| OSD | |
| Function Keys | 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文，简体中文 |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black, others optional |

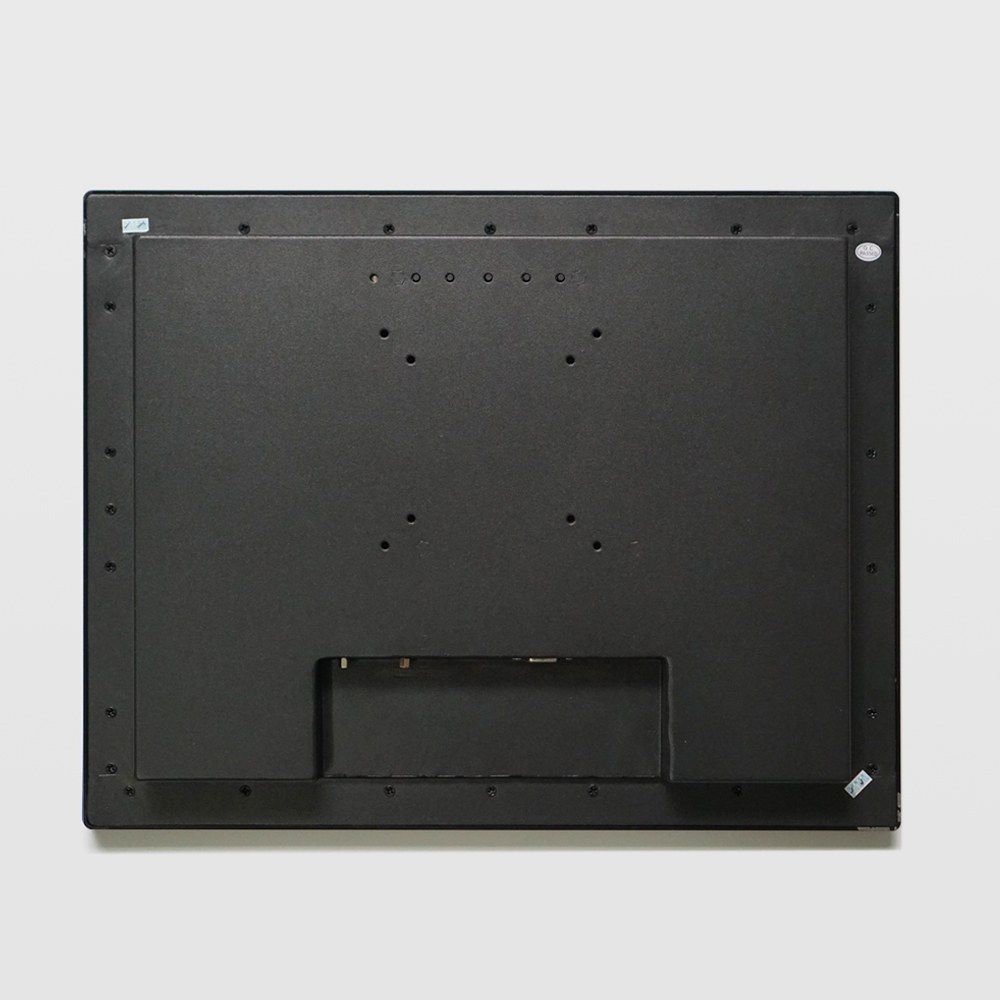

| Mounting | VESA mount 75/100mm, Panel mount |
| IP rating | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Net weight | Net weight 5kg (11.023 lb) Gross weight 7kg (15.4324 lb) |

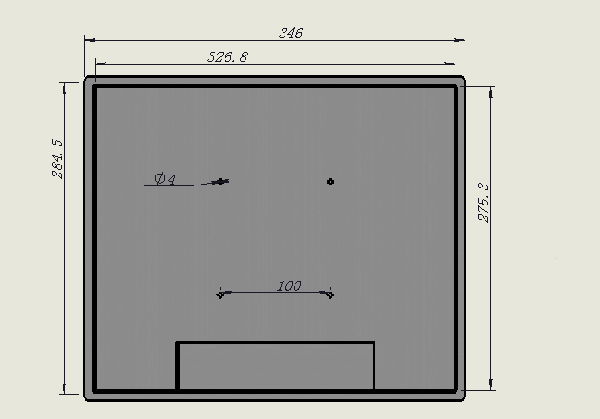

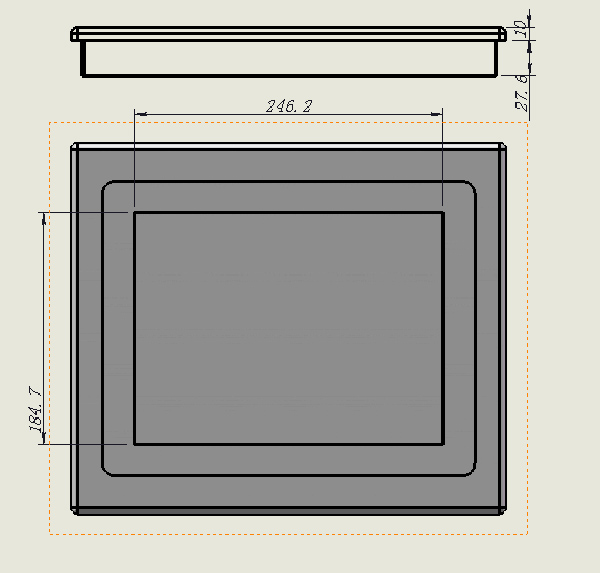

| Product Dimension | 355.4mm*227mm*47mm (13.992x8.937x1.85 in ) |
| Packing info | 1pcs/ctn 52*12*42cm (20.472x4.724x16.535 in ) 7kg (15.4324 lb) 2pcs/ctn 52*26*42cm (20.472x10.236x16.535 in ) 15kg (33.0693 lb) |

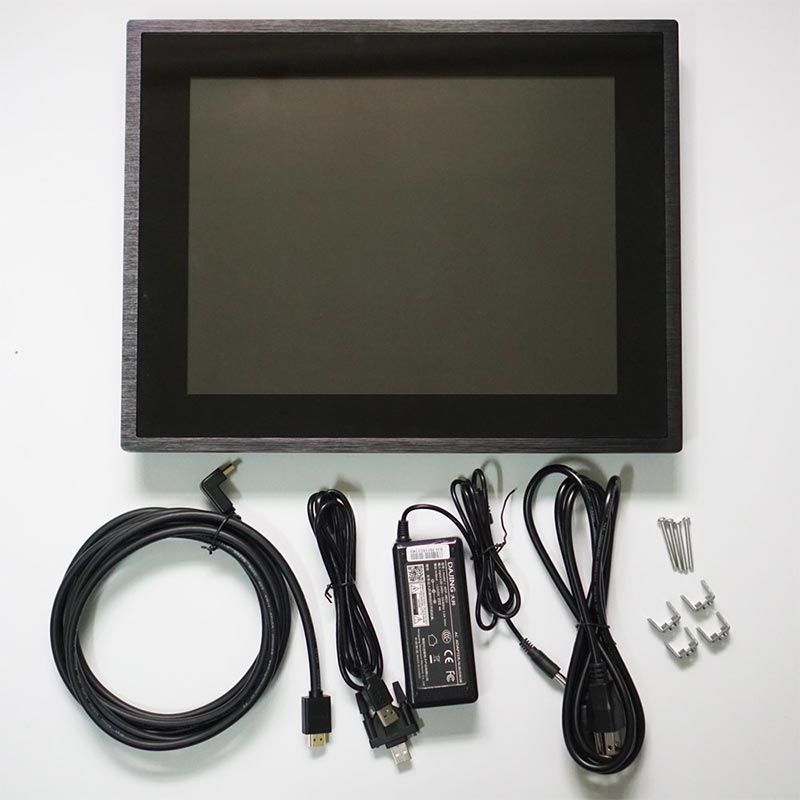

| Accessories | Power plug, Waterproof Power supply, Waterproof USB touch cable, Waterproof HDMI cable, Embedded mount screws |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
