Features:
1. Aluminum alloy surface frame and heat sink plate are sandblasted and oxidized, anti-UV and anti-discoloration treatment, and the whole machine is IP68 waterproof
2. Industrial-grade LCD screen, full viewing angle, 1000 brightness, can be used in sunlight, PWM software can adjust the brightness
3. 10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface is treated with AG anti-glare treatment
4. EETI touch control solution, normal touch when there are water droplets on the touch screen
5. The touch screen and LCD screen are bonded using a full bonding process.
6. Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
7. The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
Specification:
| Model | SC110A |
| PC | |
| CPU | RK3568 Quad-core 64-bit Cortex-A55 architecture, based on high-end 22nm process, Base 2.0GHz |
| Memory | 4G (2G/8G Optional) |
| Storage | eMMC 64G (16G/32G/64G/128G Optional) |
| Decoding Resolution | Support maximum 2048*1536 |

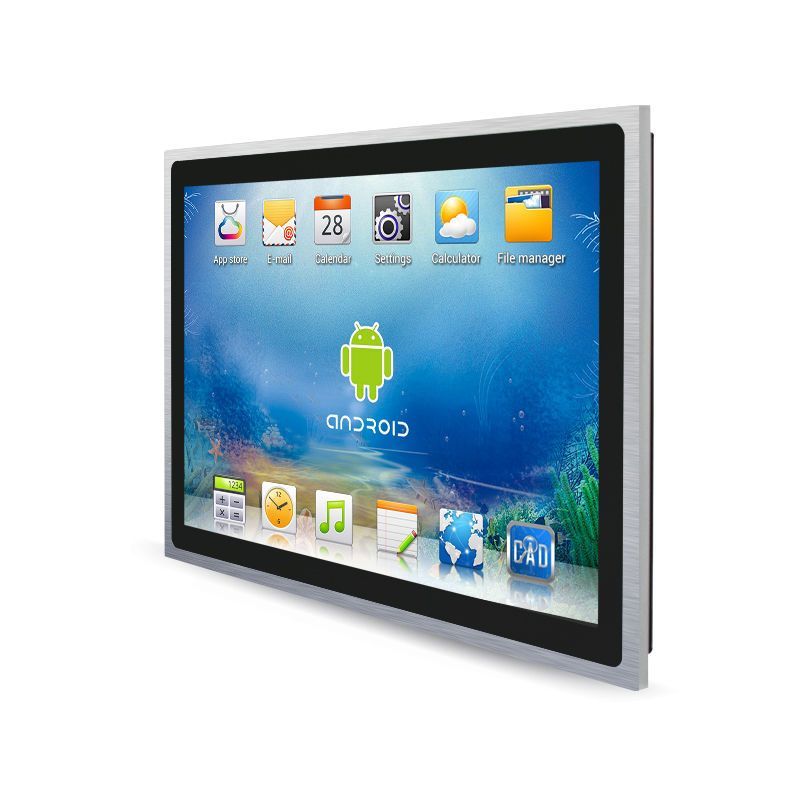

| Operation System | Android 12 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | RJ45, WIFI, 3G, 4G , TD-LTE (optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB,FLV,MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc. |
| Audio Format | MP3,WMA,AAC,etc. |
| RTC Real Time Clock | YES |

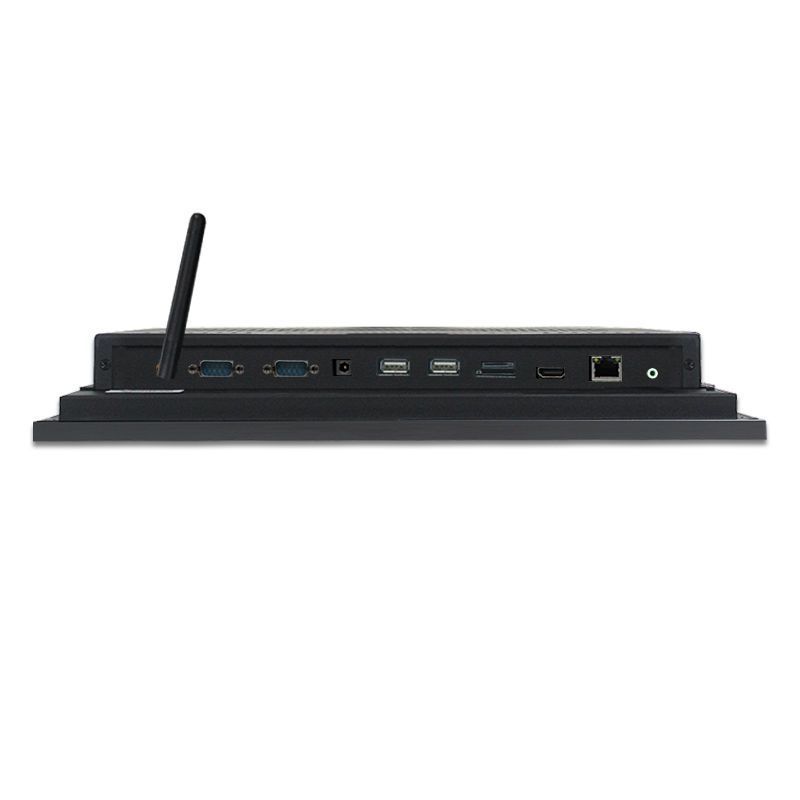

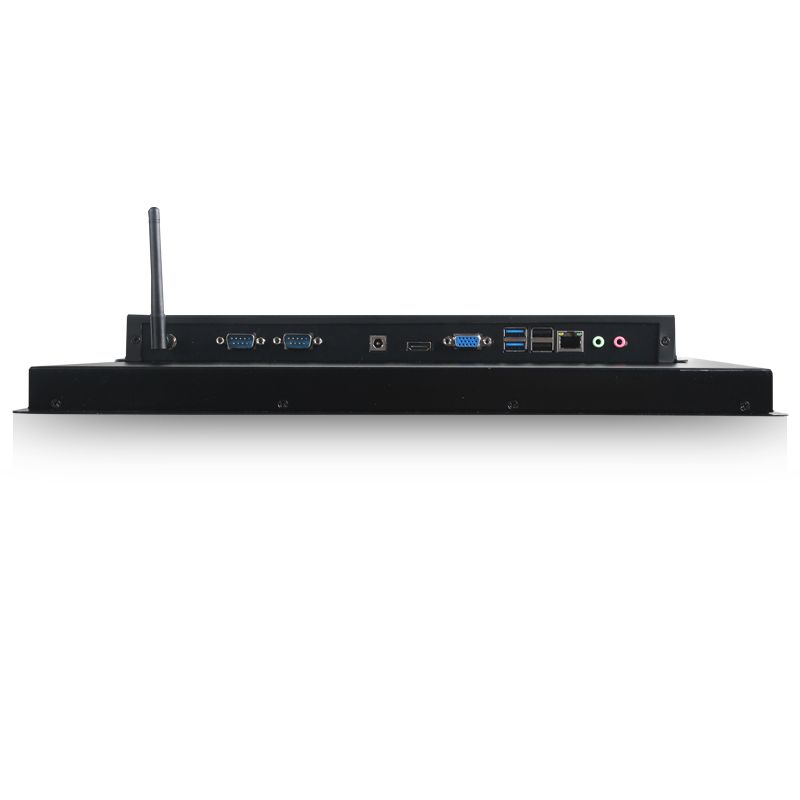

| I/O | |
| USB | 1*IP68 USB |
| LAN | 1*IP68 RJ45 |
| Video Outputs | 1*IP68 HDMI |
| Power input | 1*IP68 DC9-36V |
| Other | 1*IP68 WIFI+BT 1*IP68 GPS 1*IP68 4G |
| LCD panel | |
| Panel size | 7" - 21.5" |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | PWM software adjustment |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Surface hardness | 7H |
| Touch response time | <5ms |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥80% |
| Touch controller IC | EETI 81 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch options | 5 wire resistive touch, non touch, IR touch optional |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| Enclosure | |
| Material | Aluminum alloy panel, heat sink plate + galvanized cold-rolled plate back shell |
| Finish | Aluminum frame, aluminum heat sink: sandblasting oxidation, anti-UV and anti-discoloration treatment Rear shell: electrostatic powder spraying |
| Color | Black, other color optional |
| Mounting | VESA mount 75/100 |
| IP grade | Full IP68 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Accessories | Waterproof adapter, waterproof network cable, waterproof USB cable, waterproof HDMI cable, antenna stick |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |

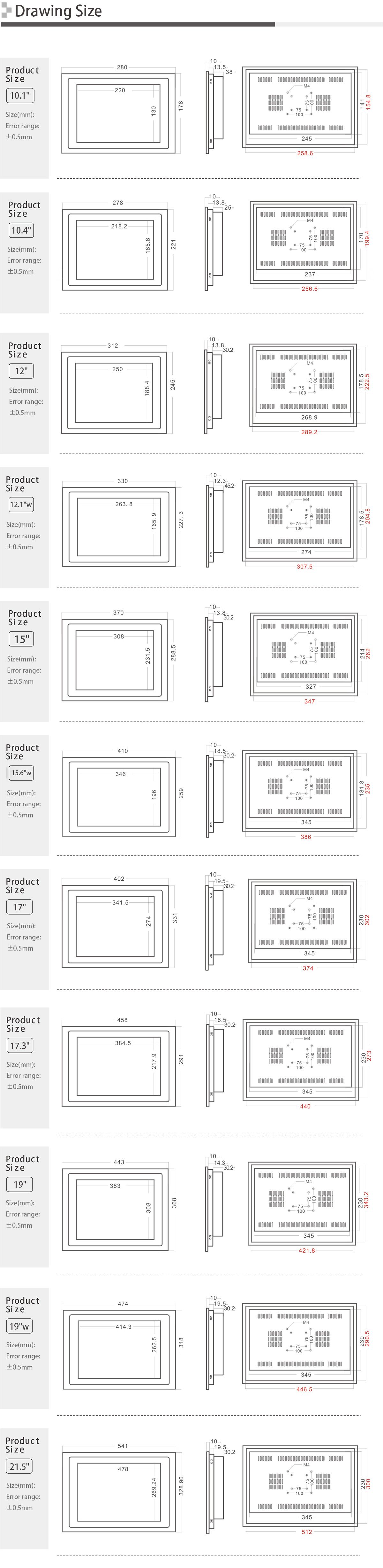

Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
12.1" IP68 waterproof PC
