Features
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Cover with 4mm glass AR glass, Anti glare, Anti UV.
4. 1000 cd/m2, sunlight readable, with light sensor for auto dimming.
5. High performance motherboard, 7x24 continuous operation.
6. With wifi, bluetooth.
7. Android 7.1 system.
Specification
| Model: SC215A | |
| PC | |
| CPU | RK3399, Dual Cortex-A72 + Quad Cortex-A53, 2.0GHz |
| Memory | 4GB DDR3 |
| Storage | 16GB EMMC |
| Decoding Resolution | Support 1080P |
| Operation System | Android 7.1 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | RJ45, WIFI, 3G, 4G, TD-LTE (optional) |
| Image Format | JPEG/BMP/GIF/PNG |
| Video Format | RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc. |
| Audio Format | MP3, WMA, AAC, etc. |
| RTC Real Time Clock | YES |
| I/O Interfaces | |
| USB | 2xUSB |
| LAN | 2xRJ45, 10M/100M adaptive ethernet |
| HDMI | 1xHDMI , support 1080p |
| Card Slot | 1x TF card slot |
| DC | 1xDC |
| Phoenix terminal | 1xPhoenix terminal |
| LCD panel | |
| Panel size | 21.5" |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness | 1000 cd/m², sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Response time | 30ms |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Cover with 4mm glass AR glass, Anti glare, Anti UV | |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Appearance | Flat panel |
| Material | Aluminum alloy |
| Color | Black, Silver |
| VESA mounting | 75x75mm/100x100mm |
| IP grade | Front IP65 waterproof |
| Operating Environment | |
| Working temperature | -20°C to 70°C |
| Storage temperature | -30°C to 80°C |
| Relative humidity | 5-85% (npn-condensing) |
| Vibration resistance | 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration, 11ms period |
| Packing Details | |
| Net weight | 7 kg |
| Gross weight | 9 kg |
| Product dimension | 53.7x32.85x4.8 cm |
| Packing size | 73x45x19 cm |
| Accessories | Power adapter, power cord, Phoenix terminal cord |
| Other | |
| Mounting way | Embedded mounting screws (Optional) |
| Wall mounting brackets (Optional) | |
| Desk stand holder (Optional) | |
| Customization (optional) | 3G, 4G, Webcam, RFID reader etc. Optional |
| Warranty | 1 year warranty |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |

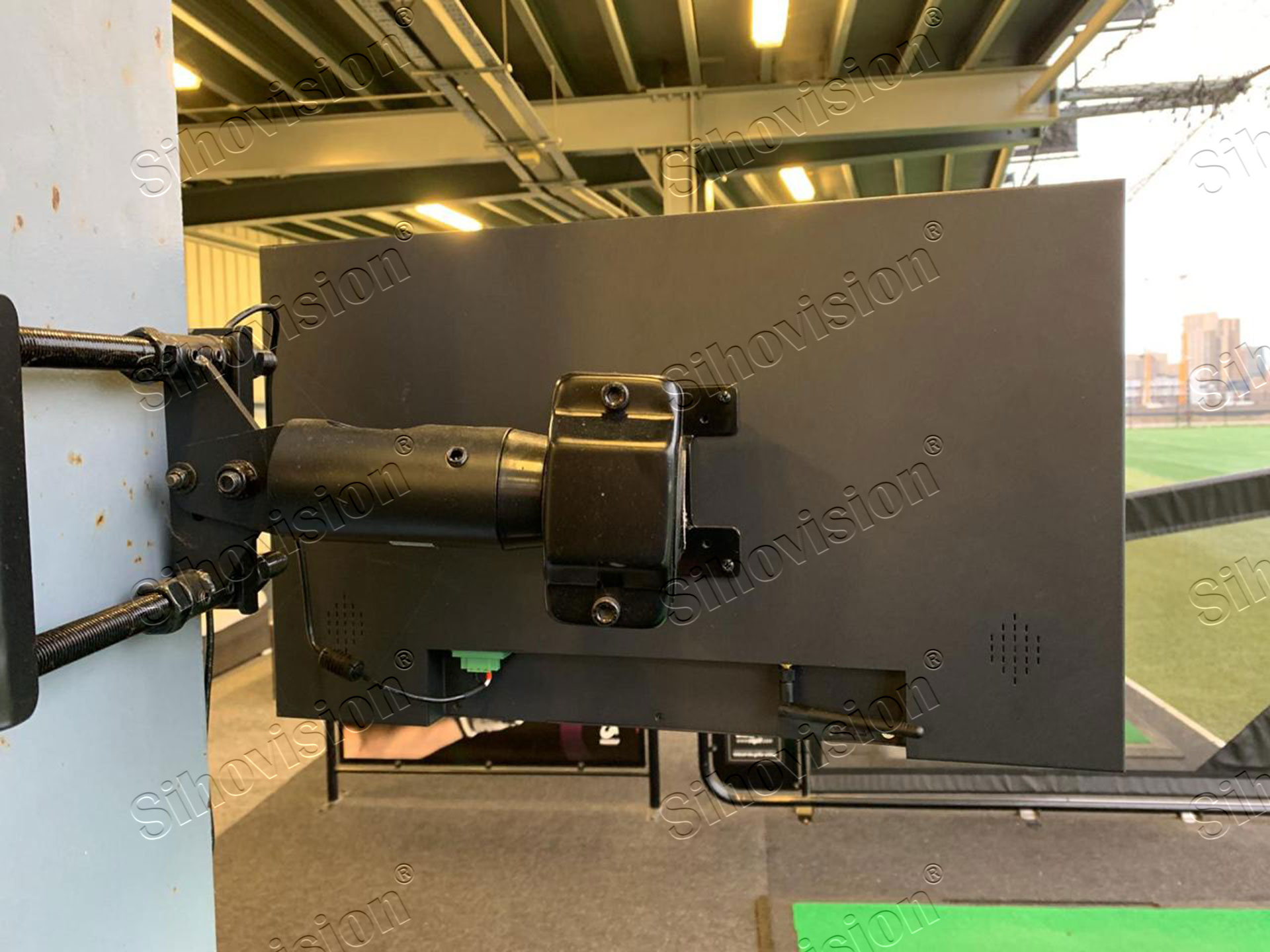

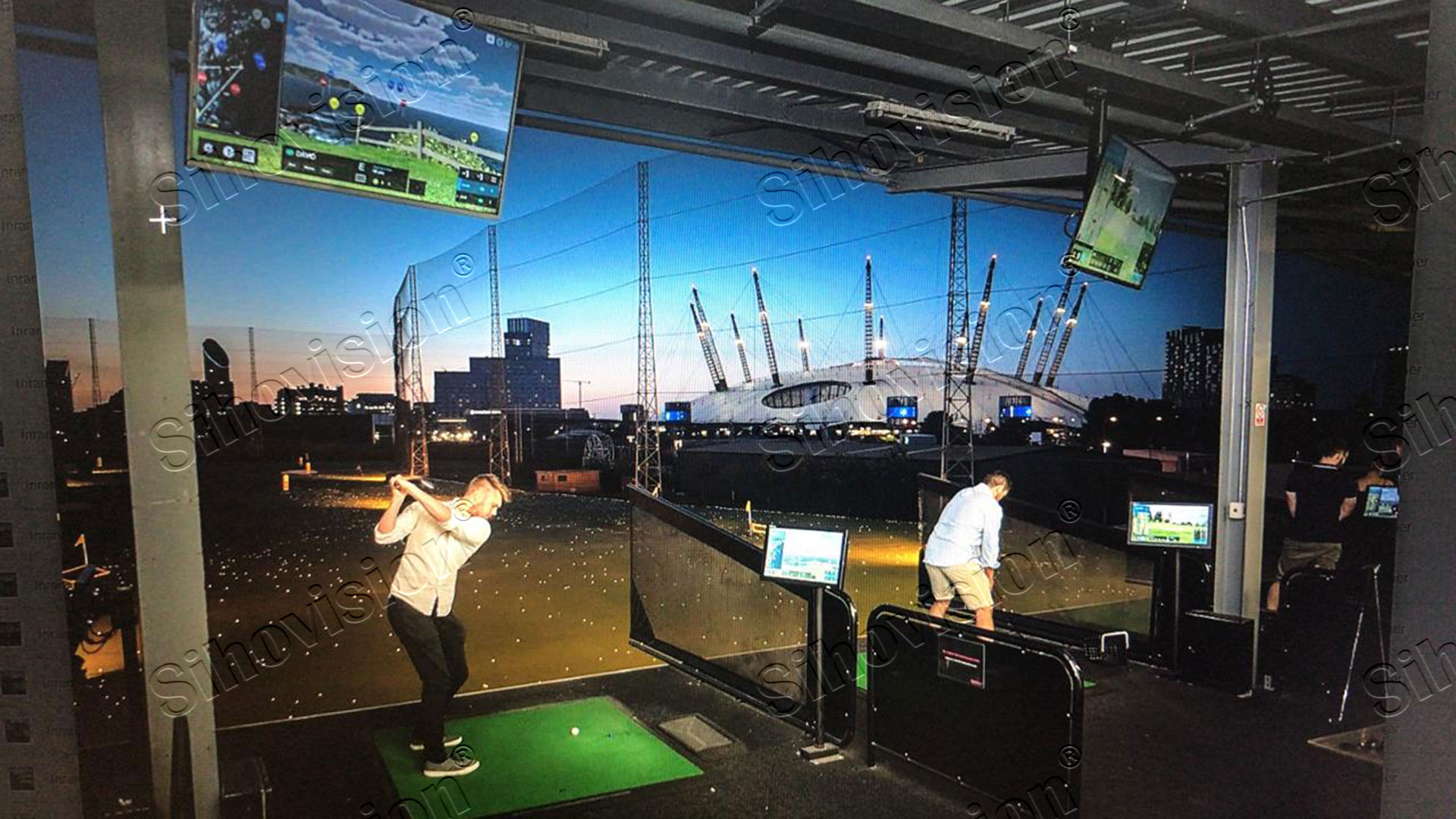

For Golf Practices The Field:
