Features
1. Aluminum alloy surface frame and heat sink plate are sandblasted and oxidized, anti-UV and anti-discoloration treatment, Full IP68 waterproof
2. Industrial-grade LCD screen, full viewing angle, 1000 brightness sunlight readable, PWM software adjust the brightness
3.10-point capacitive touch screen, the protective layer is 2mm tempered glass (chemically strengthened), the hardness reaches 7H, and the surface is treated with AG anti-glare treatment
4. EETI touch control solution, touch well with water drop on the touch screen
5. Optical bonding between LCD and touch screen
6. Use industrial-grade components, work 24/7, and support wide temperature operation -20-70℃
7. The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
Specification
| Model | SC100A |
| PC | |
| CPU | RK3588, Octa-core(8 Cores) 64-bit big and small core architecture, quad-core Cortex-A76 + quad-core Cortex-A55, built on high-end 8nm process, maximum main frequency 2.4GHz. |
| GPU | ARM Mali-G610 MC4, supports OpenGL ES 1.1/2.0/3.1/3.2, OpenCL 1.1,1.2,2.0, Vulkan 1.1,1.2, Embedded high-performance 2D graphics acceleration module |
| NPU | 6TOPS AI computing power, triple-core architecture, support int4/int8/int16/FP16/BF16/TF32 |
| Memory | 2G/4G /8G Optional |
| Storage | eMMC 16G/32G/64G/128G Optional |
| Vedio | Support H.265/H.264/AV1/VP9/AVS2 video decoding, up to 8K@60FPS; support H.264/H.265 video encoding, up to 8K@30FPS |
| Display | Supports multiple displays, up to 8K@60FPS; supports EDP/DP/HDMI2.1/MIPI multiple display interfaces* |
| Video input | Supports multi-camera input (4*4lanes or 4*2lanes+2*4lanes) MIPI CSI-2 and DVP interfaces; 32MP ISP, supports HDR and 3DNR; supports HDMI2.0 input, up to 4K@60FPS |
| Network | 2 port 10/100/1000M Adaptive Ethernet RJ45 connector + 4-Pin POE header |

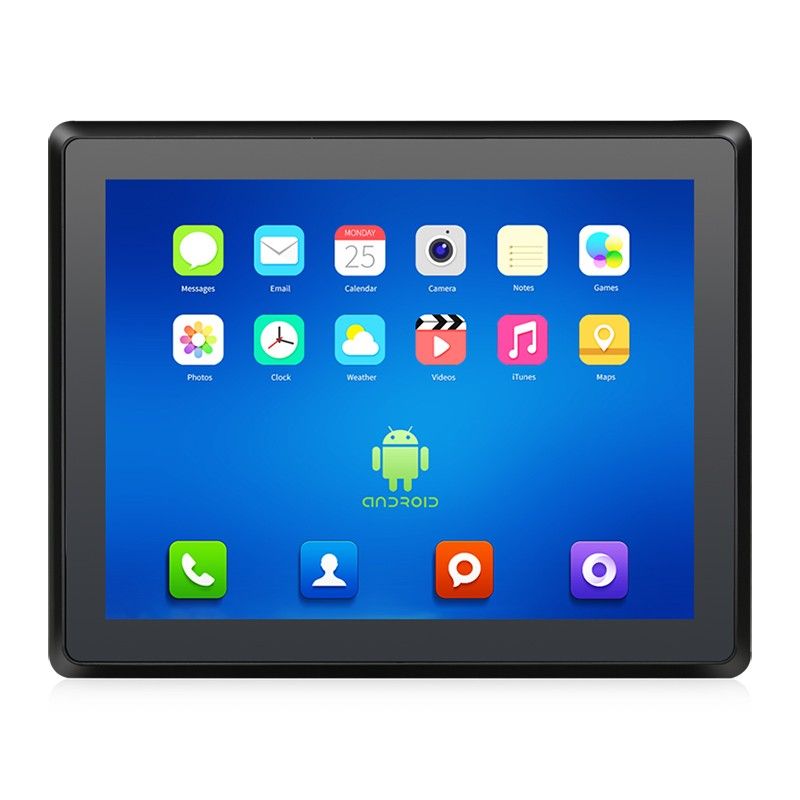

| Operation System | Android 12 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Wireless Network Support | WIFI, 3G, 4G , TD-LTE, GPS (optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB,FLV,MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc. |
| Camera | Build in Camera optional |
| RTC Real Time Clock | YES |

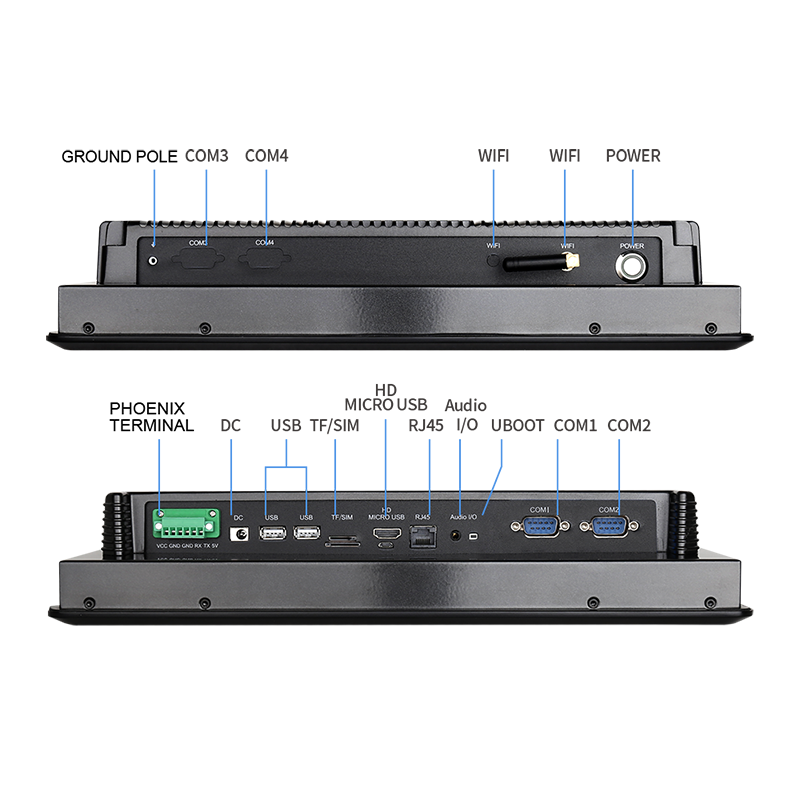

| I/O | |
| USB | 2*IP68 USB |
| LAN | 1*IP68 RJ45 |
| COM | 1*IP68 RS232 |
| Video Outputs | 1*IP68 HDMI |
| Other | 1*IP68 WIFI+BT 1*IP68 GPS 1*IP68 4G |
| LCD panel | |
| Panel size | 7" - 21.5" |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Brightness control | PWM software adjustment |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Surface hardness | 7H |
| Touch response time | <5ms |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥80% |
| Touch controller IC | EETI 81 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding |
| Touch options | 5 wire resistive touch, non touch, IR touch optional |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| Enclosure | |
| Material | Aluminum alloy panel, heat sink plate + galvanized cold-rolled plate back shell |
| Finish | Aluminum frame, aluminum heat sink: sandblasting oxidation, anti-UV and anti-discoloration treatment Rear shell: electrostatic powder spraying |
| Color | Black, other color optional |

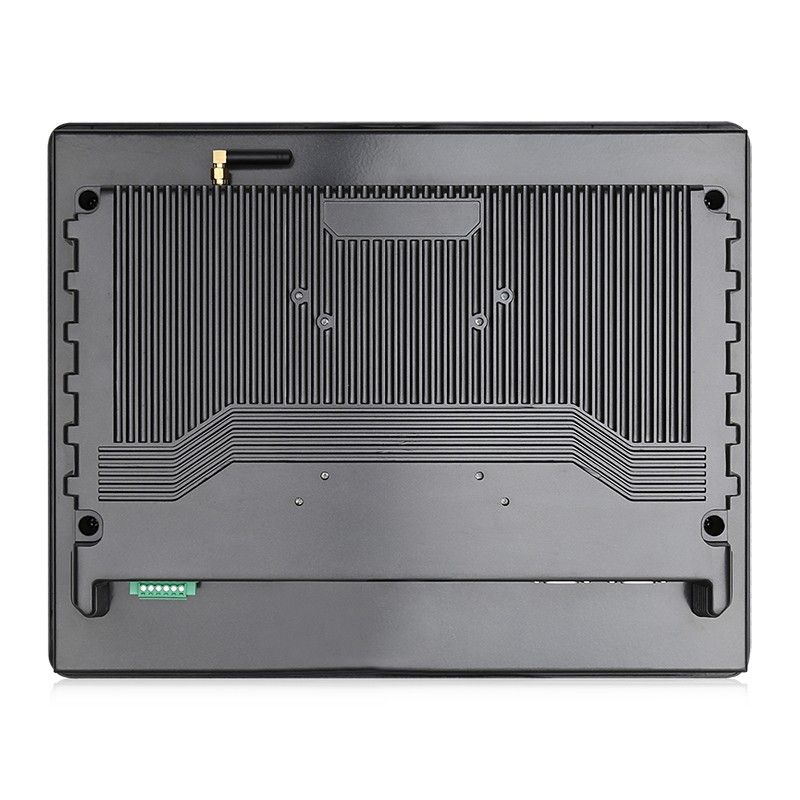

| Mounting | VESA mount 75/100 |
| IP grade | Full IP68 waterproof |

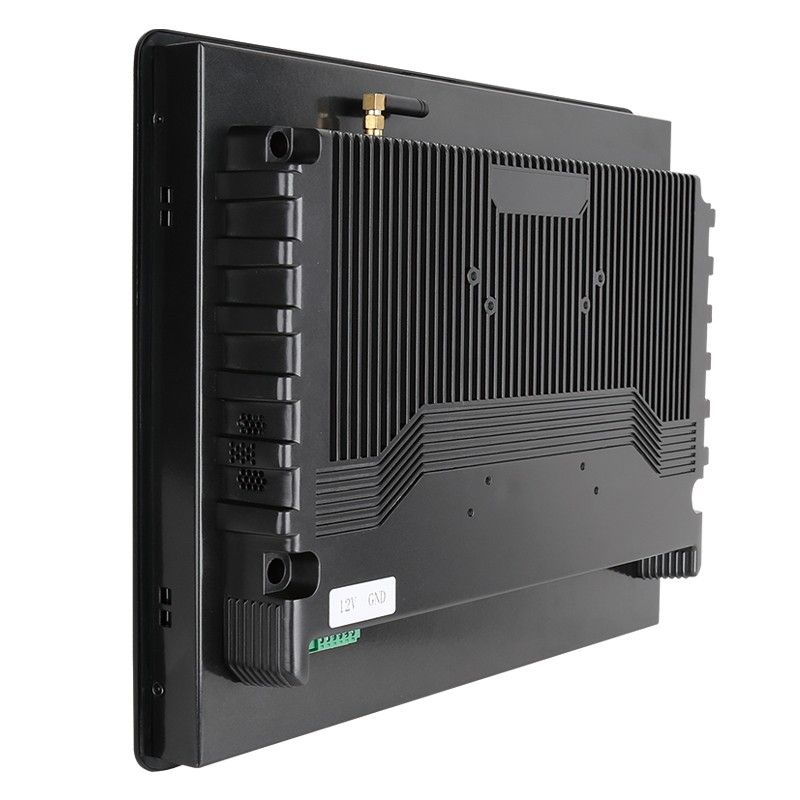

| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Accessories | Waterproof adapter, waterproof network cable, waterproof USB cable, waterproof HDMI cable, antenna stick |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |

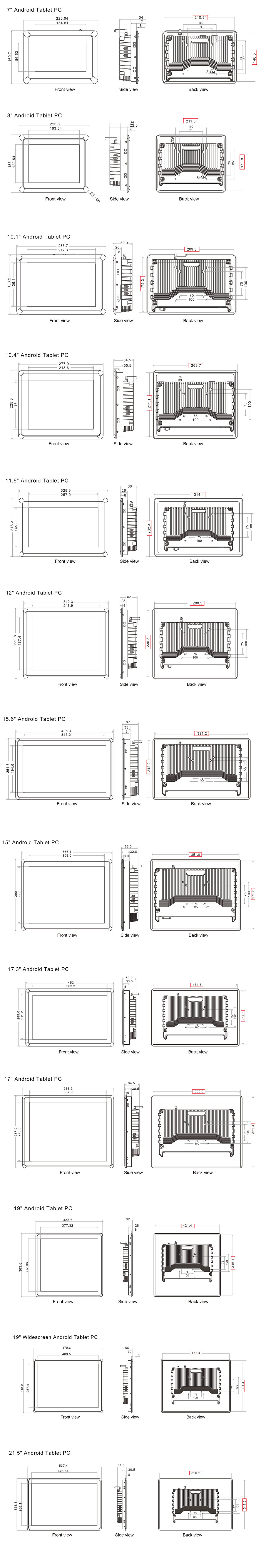

Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 7 | 1024*600 | 16:9 | capacitive/resistance |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
