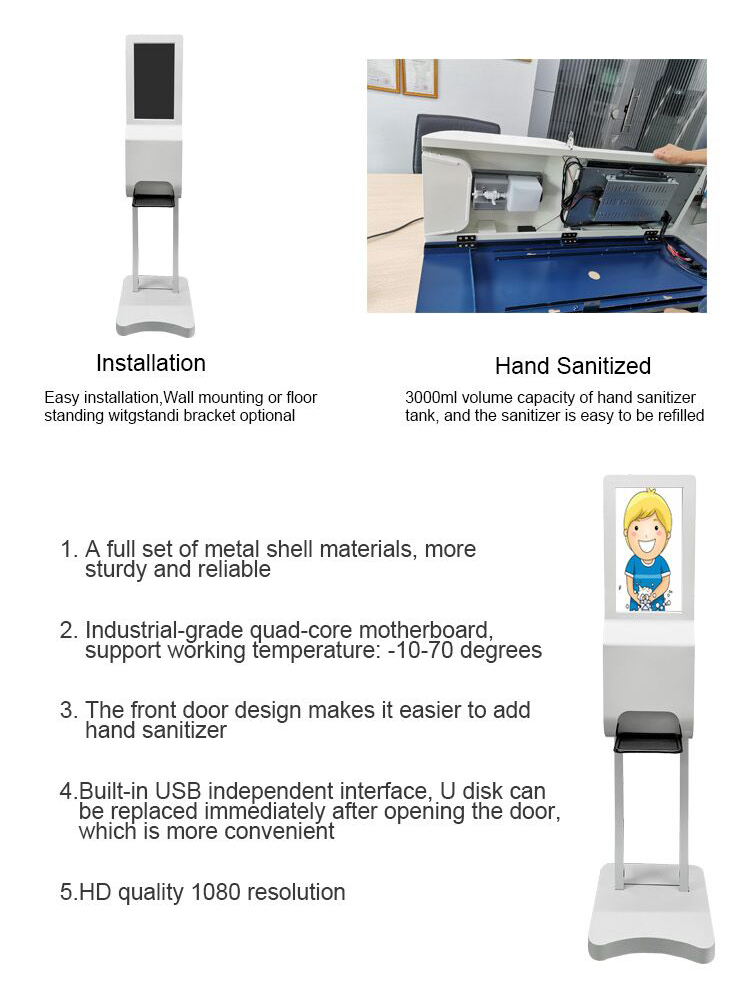

Features
1. Full metel enclosure design, solid and stable
2. Industrial grade motherboard, 7x24 continuous operation
3. The front door open design makes it easier to add hand sanitizer
4. Auto disinfectant dispense: Liquid , foam, spray
5.Auto sensing UV disinfection
6.Built-in USB interface, U-disk can be replaced easily after opening the rear door.
Specification
| 21.5inch Digital Signage with Auto Disinfectant Dispenser (Model: SC215D) | |
| PC | |
| CPU | A40i, RK3288 (optional) |
| RAM | 1GB/2GB/4GB |
| EMMC | 8GB/16GB/32GB/64GB |
| Decoding resolution | Max. 1080P |
| USB port | 2*USB |
| Network | Ethernet RJ45, WiFi, 3G/4G data(optional) |
| Audio output | Two-channel stereo |
| Video format | MPEG2,AVI,MP4,DIV,TS,TP,TRP,MKV MOV,DAT,ASF,WMV,RM,RMVB |
| Picture format | JPEG, PNG |
| Speaker | 5W speaker |
| OS | Android 7.1 |
| LCD Panel | |
| Size | 21.5" TFT LCD |
| Display Ratio | 16:9 |
| Resolution | 1920*1080 Full HD |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 89/89/89/89 |
| Touch Screen option | IR touch, capacitive touch |
| Software | |
| Server | CMS |
| U-disk playing | Support |
| Auto Dispenser | |
| Volume | 1000ml/3000ml optional |
| Dispense mode | Auto dispense: Liquid , foam, spray |
| UV-lamp | Auto sensing: UV disinfection |
| Power Supply | |
| External Power Supply | AC100-240V 50/60HZ |
| Sensor Power Supply | Battery or DC12V |
| Power consumption | 20W |
| Enclosure | |
| Material | Galvanized Steel Sheets |
| Color | Red , Black, white, color can be customized |
| Operating Environment | |
| Operating Temperature | -10°C to +70°C |
| Operating Humidity | 5% to 100% |
| Packing Details | |
| Net weight | 20KG |
| Gross weight | 25KG |
| Product dimension | 107*26.8*11.2cm |
| Packing size | 116*47*20cm |
| Accessories | Power adapter,WIFI antenna, key*2 , warranty card |
| Others | |
| Installation | Wall mounting or floor stand bracket optional |
| Working life time | 60,000 hours |
| Warranty | 1 year warranty |
