High brightness touch screen monitor/displays provide a bright and vibrant solution for window advertising and brightly lit environments. The displays are manufactured using premium LCD panels and incorporate a slimline housing with options available up to 1000 nits brightness.
Our high brightness monitor features waterproof stainless steel enclosures. These are ideal for factory wash-down environments. Additionally, they are perfect for outside use in challenging weather. Get a quote about High Brightness Touch Screen Monitor.
Features of High Brightness Touch Screen Monitor
1. Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof, Sealed I/O with cable set included.
2. Industrial LCD panel, (high brightness 1000 nits, sunlight readable optional). Cover with 2MM AG glass for anti glare and vandalproof.
3. Adopt industrial 5 wire resistive touch screen or 10 points capacitive touch stable, durable, anti-interference.
4. Wide Temperature Range: operating: -20°C to 70°C, storage: -30°C to 80°C.
5. High performance mainboard, 7x24 continuous operation.
6. Support wide voltage: 12V to 36V DC input.
7. With waterproof speaker on the back case.
8. With button on the bezel, to adjust the brightness.
Advantages
1.EFFECTIVE WINDOW DISPLAYS
Our LCD high brightness display is manufactured specifically to perform in brightly lit environments, even in direct sunlight. They are ideally suited to a number of digital signage applications in bus / train stations, airports, and retail store windows.
2.SIMPLE SETUP
Our high brightness LCD panels are quick and easy to set up, coming complete with an integrated Media Player for USB playback or just as a monitor for connecting your own Media Player or PC. Alternatively, connect a digital TV tuner via HDMI to create a high brightness TV for use in brightly lit environments like pubs, bars and restaurants.
Specification of High Brightness Touch Screen Monitor
| LCD panel | |
| Panel size | 7" |
| Display active area | 157.21(W)x89.49(H) mm/6.189x3.523 in |
| Resolution | 1024*600 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | OSD |
| Contrast ratio | 800:1 |
| View angle | 80°/80°/60°/70° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Resistive touch |
| Surface Hardness | 3H |
| Surface treatment | Anti glare |
| Luminousness | ≥80% |
| Touch controller IC | EETI ETR4000 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air Bonding |
| Touch optional | Capacitive touch, IR touch optional |
| External I/O Ports | |
| Video input | 1× IP65 HDMI |
| Audio in/out | 2 xIP65 2x8Ω2W Speakers |
| Touchscreen interface | 1×IP65 USB |
| Power connector | 1×IP65 9~36V DC |
| Power Supply | |
| Working voltage | DC 9~36V |
| Power consumption | 10W |
| Power adapter | AC 100 ~ 240V input and DC [email protected] MAX output, 40W |
| OSD | |
| Function Keys | 2 Keys: Up/Down |
| Menu Functions | Brightness |
| Support languages | English |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Black |
| Mounting | VESA mount 75*75mm |
| IP rating | Full IP65 |
| Cooling system | Passive - Fanless |
| Design | Open frame design(3mm bezel design optional) |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Weight | Net weight 0.8kg (1.76 lb) Gross weight 1.8kg (3.96 lb) |

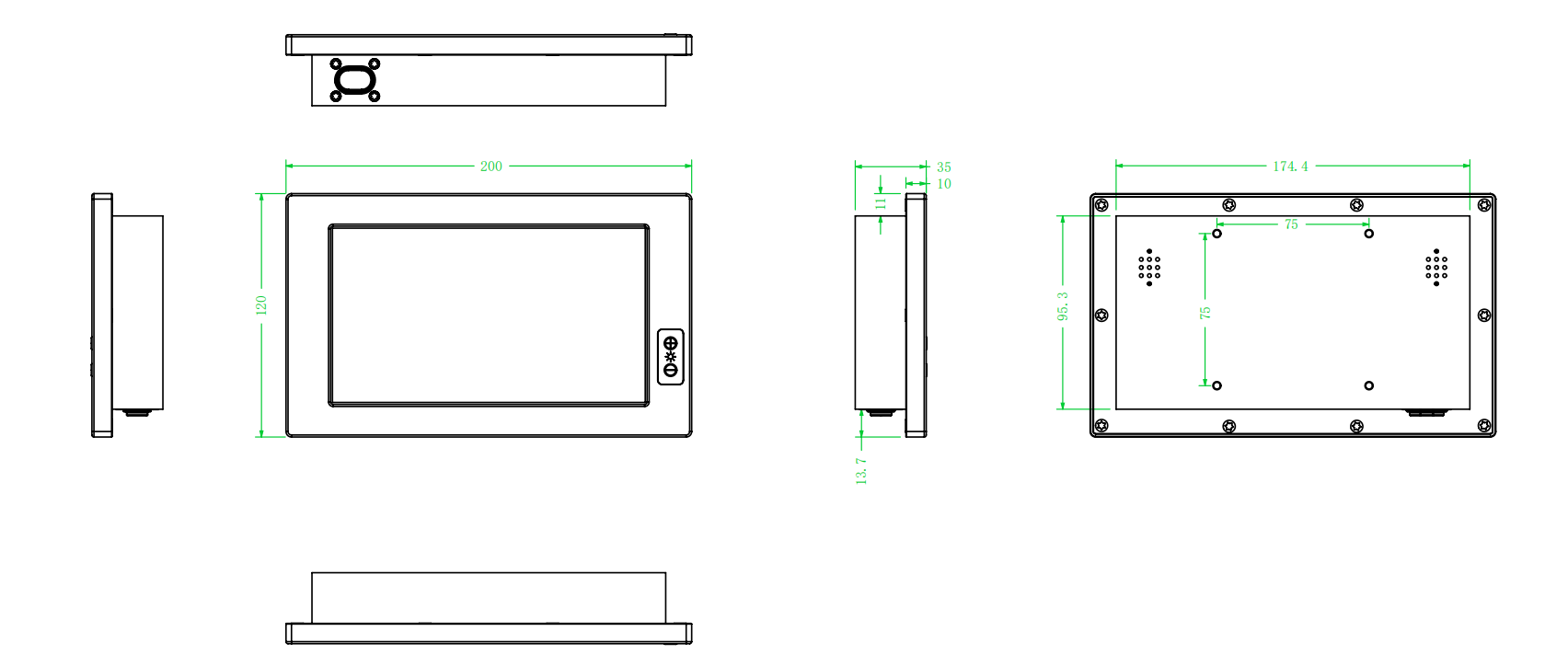

| Product Dimension | 205mm*125mm*35mm (8.07×4.921×1.378 in ) |
| Packing info | 1pcs/ctn 24×21×11.5cm (9.44×8.26×4.52 in ) 1.8kg (3.968 lb) 10pcs/ctn 58×26×44cm (22.83×10.23×17.33 in ) 20kg (44.09 lb) |
| Accessories | Power adapter, power cord |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
Contact us for more information.
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
Do You Want to Choose the Best High Brightness Touch Screen Monitor?
As a high brightness touch screen monitor manufacturer, we have a high-tech work shop. We have a complete quality management system of Full IP65 High Brightness Touch Monitor. Choose us, you can be get most careful and thoughtful service! Our products are very popular, if you are interested in our products, please contact us as soon as possible.
Sihovision's series of High Brightness touch screen monitors are designed for commercial and industrial applications such as kiosks, gaming machines, ATM Machines, aviation simulators, industrial equipment, control panels/keypad applications, and vending machine displays where a high bright LCD can combat the ambient lighting to give you a crisp and definitive picture. If you are interested in our products, please feel free to contact us.
