Features
Robust and durable, all-metal enclosure, sealing design, full IP67 waterproof, Sealed I/O with cable set included.
Industrial LCD panel, 1000 nits. sunlight readable. Anti glare.
Adopt EETI waterproof touch solution. touch can work well with drop water on the screen.
Optical bonding technology.
Wide Temperature Range: operating: -20 to 70°C, storage: -30 to 80°C.
High performance mainboard, 7x24 continuous operation.
Specification
| Model:SL300W | |
| LCD panel | |
| Panel size | 7" ~ 21.5"" |
| Resolution | 1024*768, 1280*800, 1280*1024, 1366*768, 1920*1080 |
| Aspect ratio | 4:3, 5:4, 16:9, 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Surface treatment | Anti glare |
| Contrast ratio | 1000:1 |
| View angle | 85°/85°/85°/85° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points ) |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (5 wires restive touch optional) |
| Singal Ports | |
| HDMI | 1xHDMI |
| DVI | optional |
| VGA | optional |
| Audio in/out | optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc. |
| Support OS | Windows XP, Windwows /7/8/10, Linux, Mac OS X, Android, ect. |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V (9-36V optional) |
| Power consumption | ≤28W |
| Enclosure | |
| Material | aluminium alloy front bezel + High strength cold rolled steel back case |
| Color | Black, white, Silver, color can be customized |
| VESA mounting | 75x75 mm |
| IP-grade | Full IP67 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | operating: 10% to 90%, storage: 5% to 90% |
| Other | |
| Mounting (options) | 1) wall brackets for wall-mounting, VESA 75×75 mm |
| 2) stable metal holder to support the monitor | |
| Warranty | 1 year warranty |
| Accessories | Power adapter, Waterproof Power cord, Waterproof HDMI/USB cable, Wall mount |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |

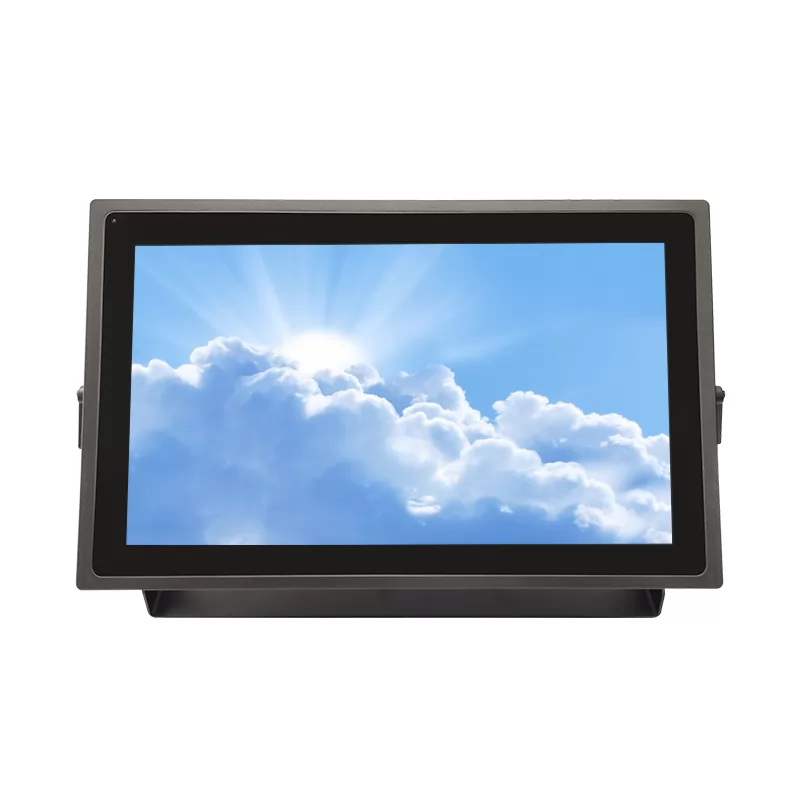

10.1 inch waterproof monitor
