Features:
1. Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , Full IP67 waterproof and dustproof
2. Industrial LCD panel, full view angle, 1000nits sunlight readable, with light sensor for auto dimming brightness optional
3. 10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment
4. EETI waterproof solution, the touch function can work well with drop water on the screen
5.The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F)
6. Optical bonding between touch screen and LCD
7. Grooved waterproof strip design, The front frame and rear shell are sealed with waterproof tape, and the machine can be disassembled for inspection and maintenance without affecting the waterproof performance.
Specification
| LCD panel | |
| Panel size | 21.5" |
| Display active area | 476.064(W)x267.786(H) mm/18.743x10.543 in |
| Resolution | 1920*1080 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | Light sensor for auto dimming |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥85% |
| Touch controller IC | EETI 80 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Optical bonding/Air bonding optional |
| Touch optional | Resistive touch, IR touch, Non touch Optional |
| External I/O Ports | |

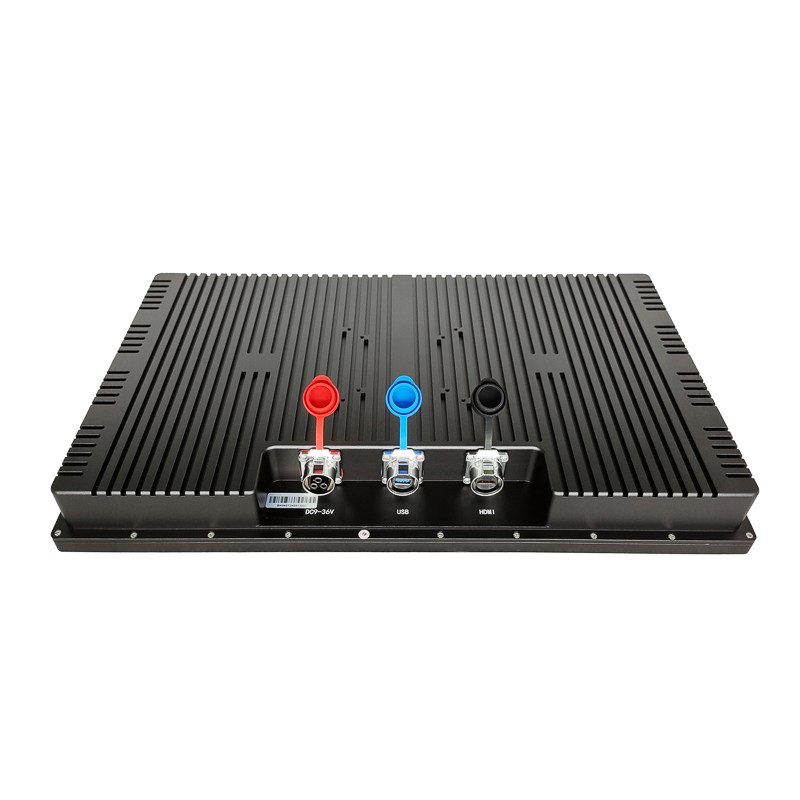

| Video input | 1*IP67 HDMI |
| Touchscreen interface | 1*IP67 USB |
| Power connector | 1*IP67 DC 9-36V |
| Power Supply | |
| Working voltage | DC 9-36V |
| Power consumption | 47W |
| Power adapter | AC 100 ~ 240V input and DC [email protected] MAX output, 90W |
| OSD | |
| Function Keys | 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文，简体中文 |
| Enclosure | |
| Material | Aluminium alloy bezel+ Aluminium alloy Housing |
| Finish | Front bezel+Housing: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment |
| Color | Black, others optional |
| Mounting | VESA mount 75x75/100x100mm, M10 screws holes on side, support gimble mount |
| IP rating | Full IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C~80°C (-22°F ~176°F) |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Net weight | Net weight 8.3kg |
| Product Dimension | 531.1mm*318mm*57mm |
| Packing info | 1pc/ctn 67*18*47cm 12kg 2pcs/ctn 68*38*49cm 25kg |
| Accessories | Power plug, Waterproof Power supply, Waterproof USB touch cable, Waterproof HDMI cable |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
