Features:
Front aluminum alloy bezel with sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment , front IP65 waterproof and dustproof.
Industrial LCD panel, full view angle.
10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness.
EETI waterproof solution, the touch function can work well with drop water on the screen.
The monitor is built with industrial-grade components, 7x24 continuous operation, wide temperature operation -20 °C ~ 70°C (-4°F ~158°F).
Specification
| Model:SL156 | |
| LCD panel | |
| Panel size | 15.6" |
| Display active area | 343.5(W)×192.8(H) mm / 13.52 in × 7.590 in |
| Resolution | 3840*2160 |
| Aspect ratio | 16:9 |
| Brightness (cd/m²) | 600 nits |
| Brightness control | Light sensor |
| Contrast ratio | 1500:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Support Color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | Projected Capacitive Touch (up to 10 points ) |
| Surface Hardness | 7H |
| Surface treatment | Anti glare (chemical etching) |
| Luminousness | ≥90% |
| Touch controller IC | EETI 81 |
| Available touch drivers | Windows, Linux, Android, Mac, etc |
| Touch bonding | Air bonding |
| Touch options | (5 wires restive touch, IR touch optional) |

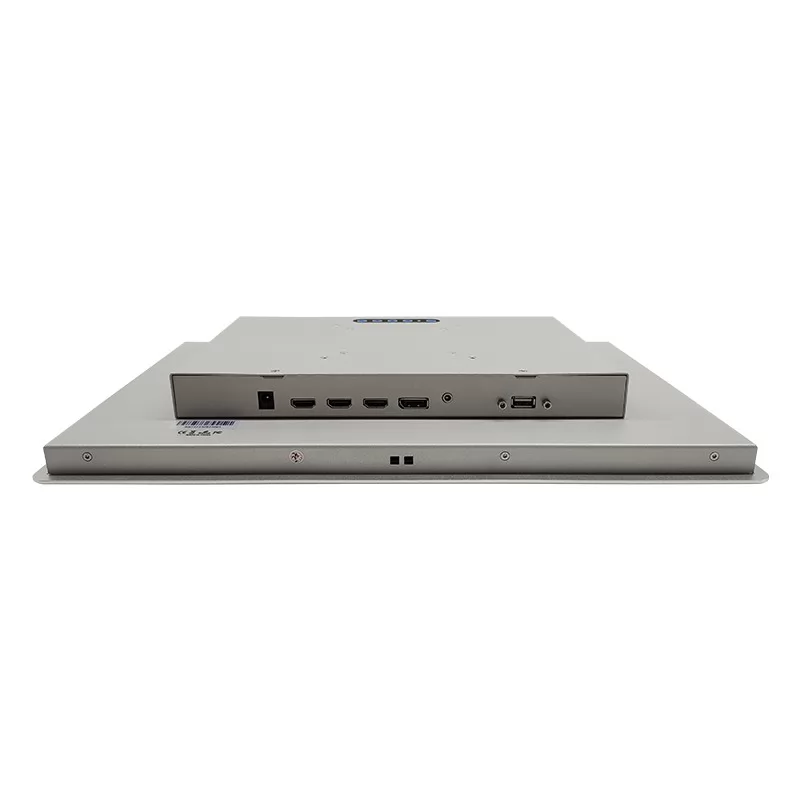

| External I/O Ports | |
| Video input | 1*HDMI2.0 2*HDMI1.2 1*DP |
| Audio out | 1×3.5mm Line-out |
| Touchscreen interface | 1×USB |
| Power connector | 1× 12V DC jack |
| Power Supply | |
| Working voltage | DC 12V |
| Power consumption | 20W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| OSD | |
| Function Keys | 5 Keys: Power/Menu/Up/Down/Return |
| Menu Functions | Brightness, Contrast, Screen Setting, Color Temp, OSD Language, Auto Adjust, Reset etc. |
| Support languages | English, Français, Español, Português, Deutsch, Italiano, Nederlands, Svenska, Suomi, Polski, čeština, Русский, 한국어,日本語, 繁體中文，简体中文 |
| Enclosure | |
| Material | Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing |
| Finish | Front bezel: Sandblasting+Hard Anodizing, UV-protection and Anti-discoloration treatment Rear housing: powder coated |
| Color | Silver |
| Mounting | VESA mount 75*75/100*100mm, Panel mount |
| IP rating | Front panel IP65 |
| Cooling system | Passive - Fanless |
| Design | 3mm bezel design(open frame design optional) |
| Operating Environment | |
| Temperature Range | Operating: -20 °C ~ 70°C (-4°F ~158°F) Storage: -30 °C ~ 80°C (-22°F ~176°F) |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Weight | Net weight 3.4kg Gross weight 4.9kg |
| Product Dimension | 420*267*50mm |
| Packing info | 1pcs/ctn 51×17×40cm 5.5kg 2pcs/ctn 51*32*40cm 11kg |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ DP cable, embedded mounting screws, wall mounting brackets |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
