Feature

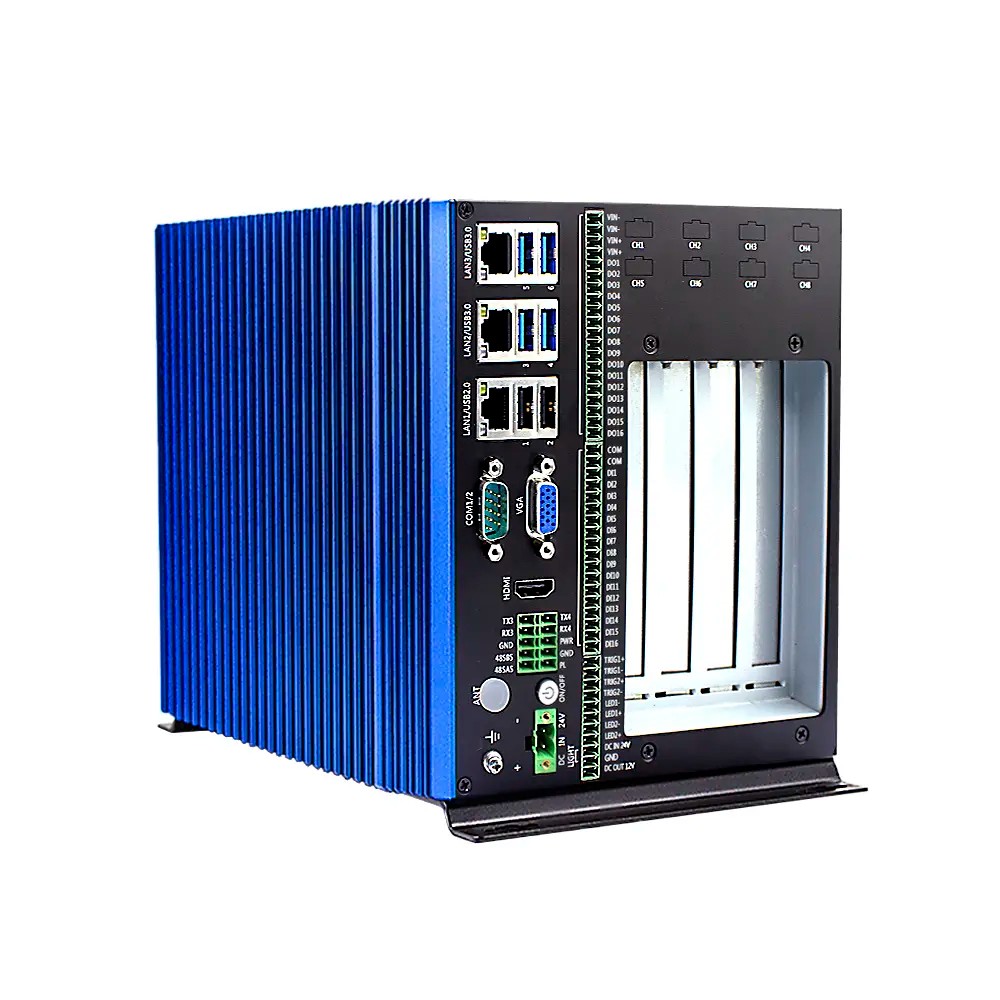

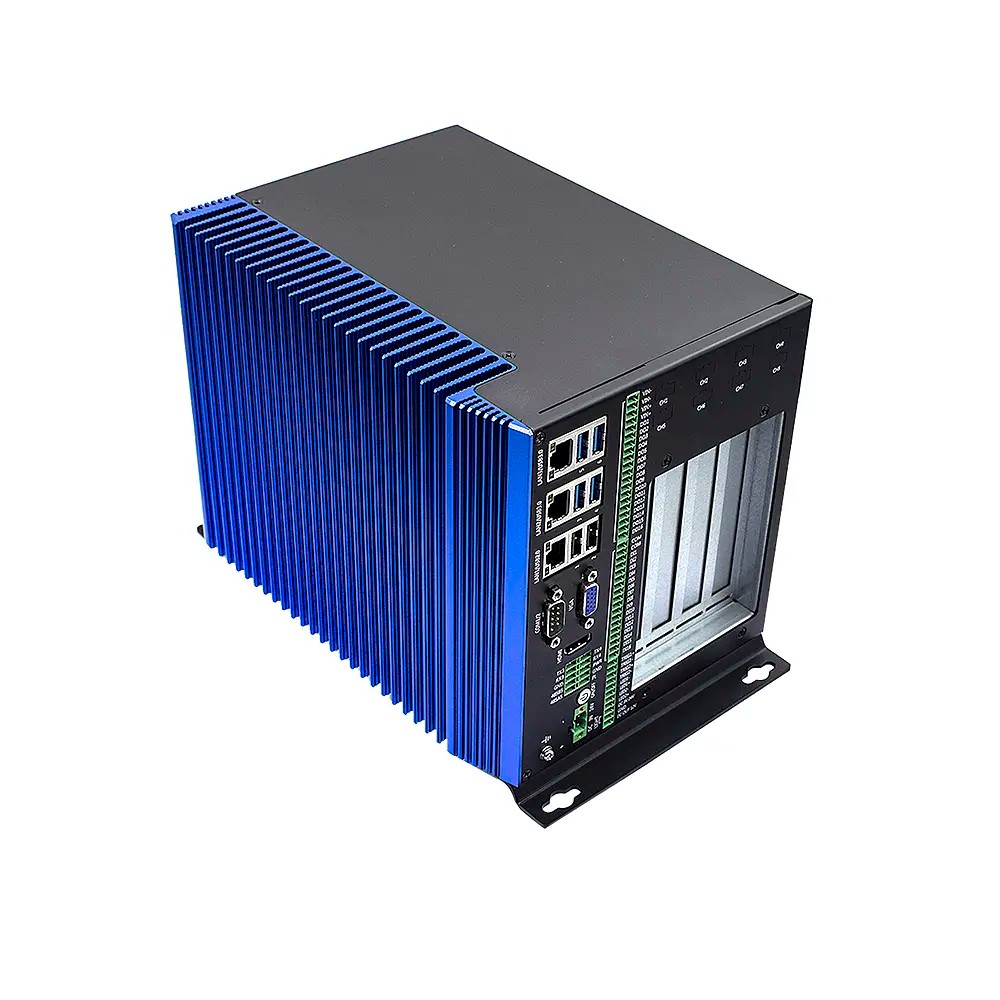

SM709-5-IO is a high-performance embedded industrial machine. It supports Intel 6th, 7th, 8th and 9th generation I3/I5/I7/I9 series CPUs; it is equipped with one DDR4-2133~3200MHz SO-DIMM memory slot, the memory capacity is determined by the CPU, and the maximum memory capacity is 32GB; it provides VGA and HDMI interfaces for display; and it adopts the Intel i225 chip to provide three Gigabit Ethernet interfaces for network; SM709-5-IO also provides other rich interfaces, such as five serial ports, 4* USB 3.0 ports, and 3* Gigabit Ethernet interfaces. SM709-5-IO also provides other rich interfaces, such as 5* serial ports, 4* USB 3.0 ports and 3* USB2.0 ports (1 built-in), 2* SATA sockets 7+15pin and 1* mSATA port, 16*DI and 16DO, 2*Light Trigger and 2*Light Interface (can be changed to 8*Light Interface), 1* PCIe X16 connector, 2*Light Trigger and 2*Light Interface, and 1* PCIe X16 connector internally. 1* PCIe X16 interface for function expansion. The whole machine is suitable for various embedded applications with high performance, fanless and rich expansion interfaces.
Specification
| SM709-5-IO | ||||||||
| system hardware | processing unit | model number | kernel (computer science) | main frequency | Maximum RWD | Maximum memory | (computing) cache | power wastage |
| I9-9900 | 8C16T | 3.1GHZ | 5.0GHZ | 128GB | 16MB | 65W | ||
| I5-9600 | 6C6T | 3.1GHZ | 4.6GHZ | 128GB | 9MB | 65W | ||
| I5-8500 | 6C6T | 3.0GHZ | 4.1GHZ | 128GB | 9MB | 65W | ||
| I7-9700 | 8C8T | 3.0GHZ | 4.7GHZ | 128GB | 12MB | 65W | ||
| I3-9100 | 4C4T | 3.6GHZ | 4.2GHZ | 64GB | 6MB | 65W | ||
| I5-7500 | 4C4T | 3.4GHZ | 3.8GHZ | 64GB | 6MB | 65W | ||
| I7-6700 | 4C8T | 3.4GHZ | 4.0GHZ | 64GB | 8MB | 65W | ||
| I5-6500 | 4C4T | 3.2GHZ | 3.6GHZ | 64GB | 6MB | 65W | ||
| I5-6400 | 4C4T | 2.7GHZ | 3.3GHZ | 64GB | 6MB | 65W | ||
| I3-6100 | 2C4T | 3.7GHZ | 3.7GHZ | 64GB | 3MB | 51W | ||
| random access memory (RAM) | 260-Pin DDR4-2133-3200MHz SO-DIMM Single-Channel Memory, Maximum Memory Capacity 32GB | |||||||
| operating system | Win10 64-bit 21H2+ with Ubuntu 20.04 | |||||||
| Nanqiao district of central Chongqing municipality, formerly in Sichuan | Q150 | |||||||
| display card (computer) | Integrated Graphics INTEL HD Graphics 630/650 | |||||||
| bios (software) | AMI BIOS | |||||||
| watchdog | Supports 256 levels (0~255), programmable | |||||||
| power supply | electricity supply | DC IN 24V, standard product shipped with 24V/4A power adapter.24V/6.25A power adapter for Gen 8 and Gen 9 CPUs/with IO/with graphics card | ||||||
| activation method | Power-on/Key-triggered power-on (default power-on/key-triggered power-on can be set via BIOS or hardware) | |||||||
| power switch | 1* Whole switch with light | |||||||

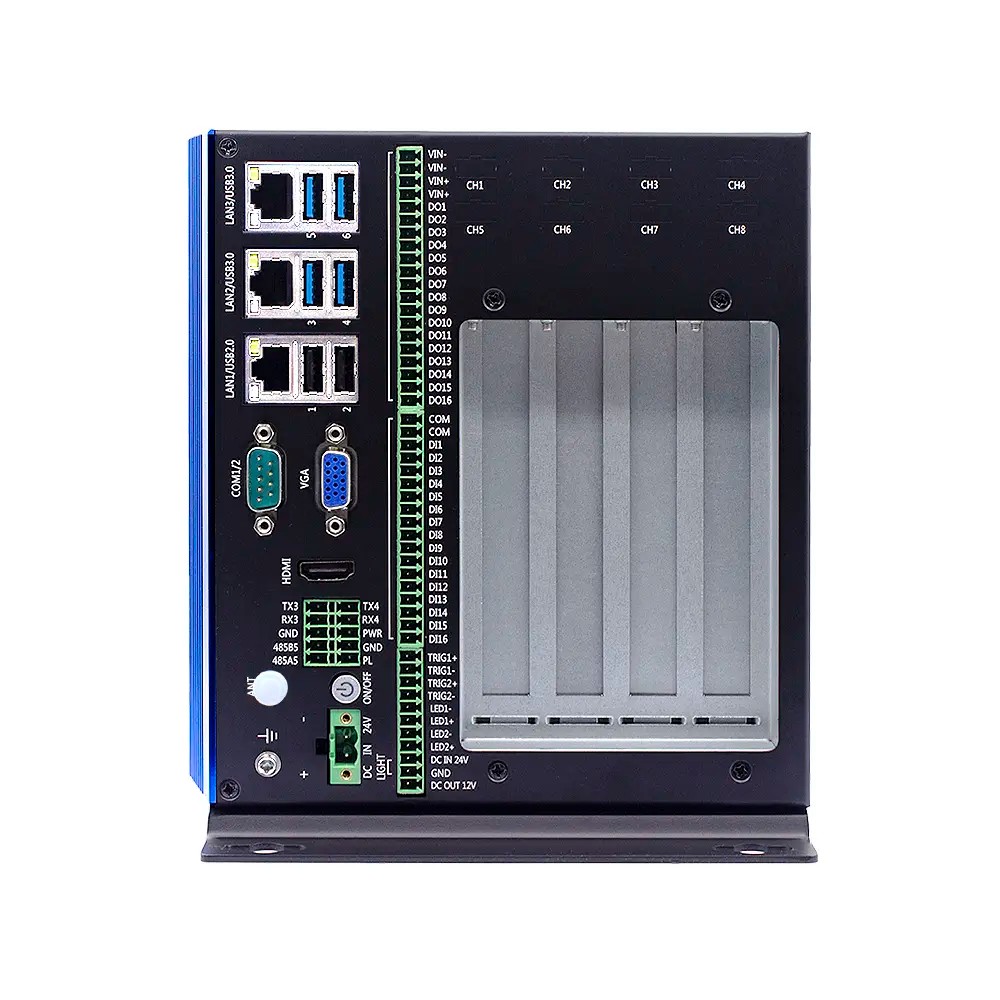

| panel interface | display mode | 1*VGA: Maximum resolution up to 4096 * 2304 @ 60 Hz | ||||||
| 1*HDMI: Maximum resolution up to 4096 * 2304 @ 60 Hz | ||||||||
| COM1/2 | Default 1*3 wires RS-232, using a standard DB-9 holder (can be customized 2*3 wires RS-232, need to buy our Division with)(line only) | |||||||
| RS-232 | 2*RS-232 with green Phoenix terminal | |||||||
| RS-485 | 1*RS-485 for green Phoenix terminal | |||||||
| PL | 1* Power indicator for green Phoenix terminal with indicator (5V) | |||||||
| PWR | 1* Remote switch | |||||||
| LAN | 3*Gigabit Ethernet port, using Intel I225 chip, support Wake-on-LAN, speed:10/100/1000Mbps | |||||||
| USB | 4*USB3.0, 2*USB2.0 | |||||||
| built-in interface | SATA | 2*SATA interface (factory customizable 2*2.5" SATA3.0), support 2.5" hard drive(128GB/256GB/500GB/1TB available), plus to go up to a 3.5" hard drive can be customized. | ||||||
| mSATA | 1*miniPCIe slot, support mSATA (capacity 64/128/256/480/512GB...) (Optional) | |||||||
| SW2 | Clock reset, 1 x 1*4PIN 2.54mm pitch pin | |||||||
| USB | 1*Single layer heightened USB2.0 docking station with dongle connection | |||||||
| 1 x 1*6pin white docking station (USB2.0 port) | ||||||||
| PCI/PCIEexpansion slot | PCX-9468-B4 | 1*PCIe X4 slot (PCIE X2 signaling) | ||||||
| 1*PCIE X16 slot (PCIE X16 signaling) | ||||||||
| 2*PCI slots | ||||||||
| dependability | operating temperature | -20℃～60℃ (excluding electronic disk) | ||||||
| Storage temperature | -40℃～85℃ (excluding electronic disk) | |||||||
| relative humidity | 5% to 90% non-condensing (excluding electronic disk) | |||||||
| Vibration during operation | System Mount SSD/mSATA: 3 Grms, IEC 60068-2-64 Random 5 ~ 500 Hz | |||||||
| Shock during operation. | System Mount SSD/mSATA: 30 G, IEC 60068-2-27 | |||||||
| structure | Installation | Vertical mounting | ||||||
| Vertical size | With stand: 278.74*194.66*172.5mm(L*W*H) | |||||||
| Weight | Approx. 5.1Kg (excluding accessories and packaging) | |||||||
| Certification | Related Certificates | CE, FCC, ROHS | ||||||
| IO Board | ||
| panel interface | GPIO | 16*DI, NPN/PNP mode input DC 10V-30V |
| 16*DO, output voltage DC 10-30V, rated current 500mA per circuit (depending on supply voltage) | ||
| TRIG | 2* Light source triggering | |
| DC IN 24V | External power supply interface for light source | |
| CH | Default 2* light source interface, can be changed to 8* light source interface, single channel light source rated current 1A | |
| DC OUT 12V | 1*12V output, can support up to 1A current | |
