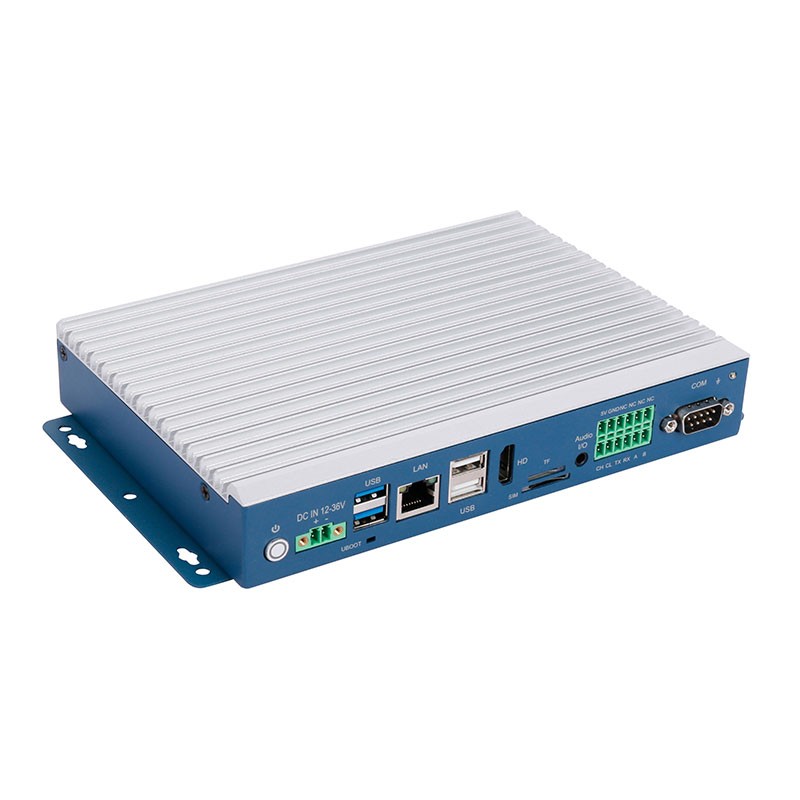

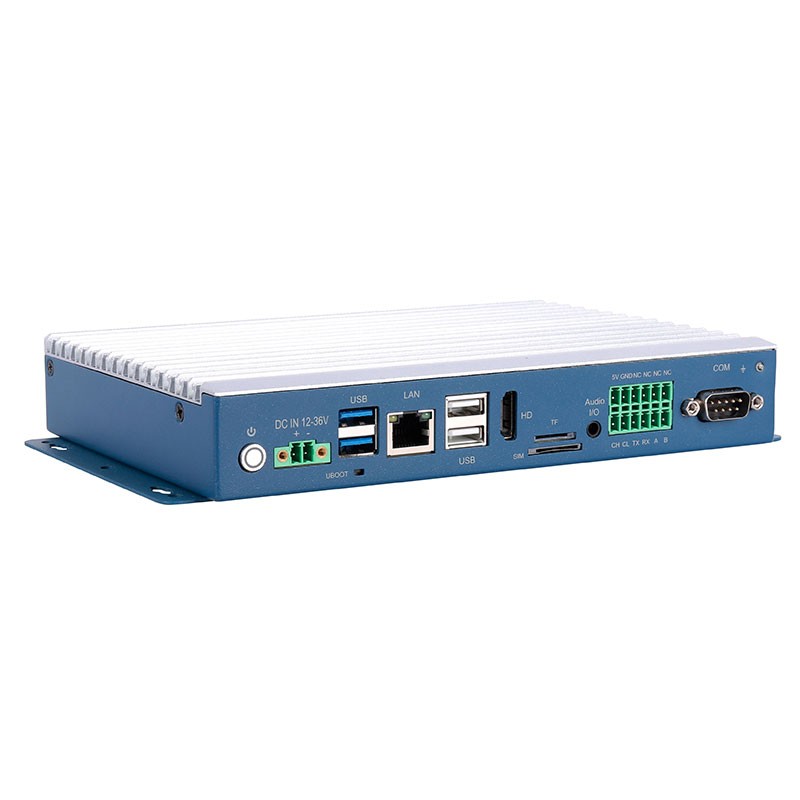

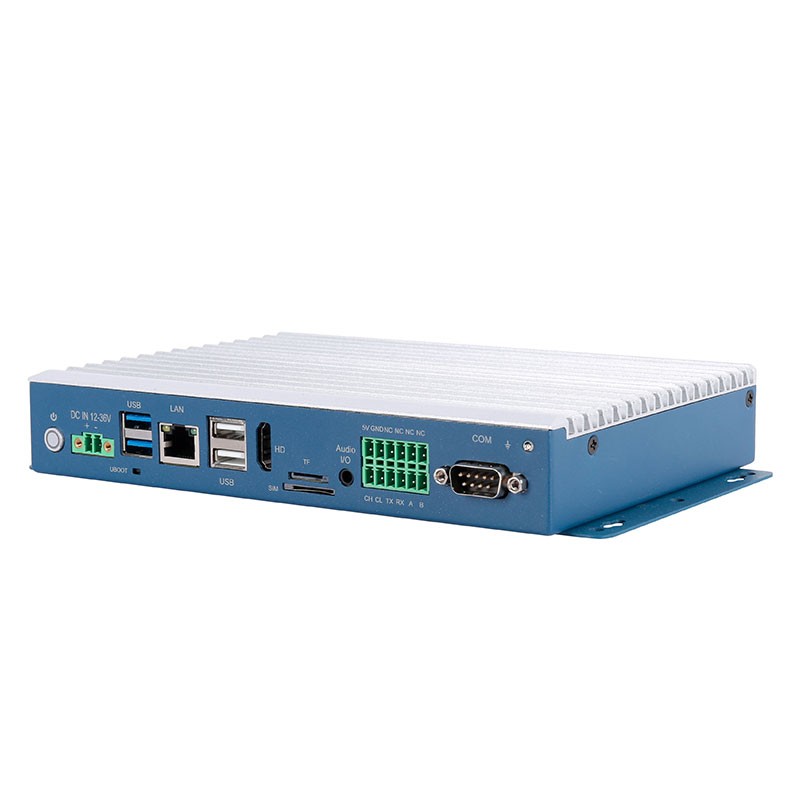

Ultra cost-effective RK3568 RAM 2GB ROM 32GB Android Mini PCs

Quick Details:

CPURK3568Storage32GB EMMC
RAM2GBBluetoothBT5.3
NetworkWIFI 6, 1*RJ45OSAndroid, Linux
MaterialAluminum AlloyPower Supply12V-36V DC

Features:

High-precision all-aluminum alloy body with excellent texture, no wire motherboard design

Independently developed ARM architecture industrial-grade motherboard, suitable for various complex application environments

RK3568 quad-core 64-bit 2.0GHz high-performance CPU, built-in NPU with 1TOPS AI computing power

Rich interfaces, flexible expansion, easy installation

Powerful open source attributes, breaking through application limitations, supporting secondary development


Application:

The whole machine adopts an all-metal structure and a fanless fully enclosed design. The whole machine has low power consumption and a compact appearance. It is an industrial product specially designed for a variety of environments. It can ensure long-term stable operation in harsh environments. In terms of the materials used in the whole machine, we pay more attention to its reliability, environmental adaptability, real-time performance, scalability, EMC compatibility and other performance. The configuration adopts RK3568 high-performance, low-power Android series products with 22nm advanced process; it has a 4-core 64-bit Cortex-A55 core architecture with a main frequency of up to 2.0GHz; built-in independent NPU with 1TOPS AI computing power, supports lightweight AI application development, and GPU uses ARM Mali-G52 2EE; 4K video codec, 4K display output; equipped with Android14 system, with a variety of high-definition display interfaces, to meet the needs of the site for a variety of application interfaces, provide a variety of work efficiency, widely used in industrial control, military industry, communications, power, network and other high-end automation fields.


Specification


PC
CPURK-3568 quad-core 64-bit Cortex-A55 core architecture, main frequency up to 2.0GHz, Fanless
GPUARM Mali-G52 2EE
NPU1TOPS AI computing power
Memory2GB LPDDR4 (optional 4GB/8GB, maximum support 8GB)
Storage32GB EMMC (optional 64GB/128GB/256GB, maximum support 256GB)

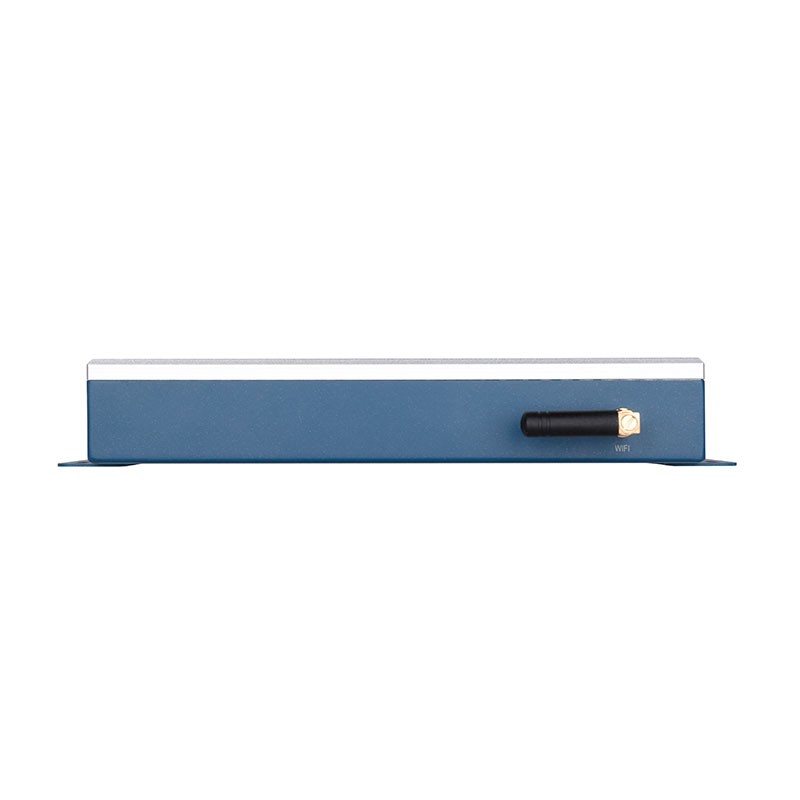

WIFIWIFI 6 built-in 2.4G/5G
BluetoothBT5.3
Operating systemAndroid12/14/Linux5.10/ubuntu20.04/ubuntu22.04/debian11
Decoding resolutionSupport up to 4K/60HZ
3G/4GPCIE standard
Network support4G, Ethernet, Wi-Fi/Bluetooth, wireless peripheral expansion

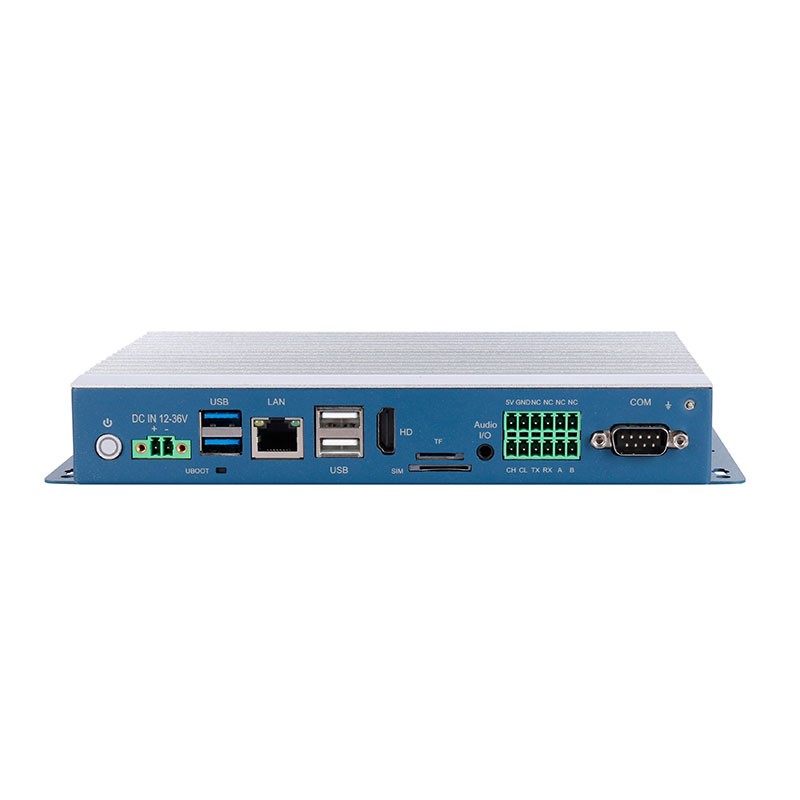

I/O
Power on/off1* Power on/off button
DC IN2PIN Phoenix terminal, supports 12-36V wide voltage power supply (optional upgrade DC 2.0*1)
Phoenix connector12PIN Phoenix terminal (232*1/485*1/CAN*1/NC*4),  232/485 supports interchange, NC*4 supports upgrade of custom interface
USB2*USB3.0 (1PCS supports OTG), 2*USB2.0 (optional upgrade to Gigabit RJ45)
Upgrade to 6* USB2.0 optional
UBOOT1* UBOOT
HDMI1* HDMI, Max 1080
Ethernet1*RJ45 Gigabit Ethernet port (optional RJ45 Gigabit*2)
Audio1*Audio I/O, support audio input and output, headphone jack: 3.5mm standard interface
Sim card1*SIM Card Slot, SIM card standard interface supports various formats (depending on 3G/4G module)
TF cardSupport TF expansion card (1*TF card slot)
GPSExternal GPS (optional)
COMStandard 1*DB9 232 serial port (232/TTL interchangeable)
Upgrade 4*232 optional
Other3*RS485, 2*TTL optional
1*CAN optional
12 PIN GPIO, 1 PIN AD optional
Other
Operating temperature-20℃~70℃
Storage temperature-30°C~80°C
Relative humidity95% non-condensing
MotherboardNo wire motherboard design
DC IN12V-36V DC INPUT
Power supply12V/2.5A (2PIN Phoenix terminal)
MaterialAluminum alloy
ColorSilver+dark blue
InstallationSupports desktop and rack installation
Net weight1.0 kg
Dimension200x138.5x35mm
