Features:
Intel® i7-10870H
Support RAID
Supports wide temperature operation -20-60℃
Aluminum alloy shell with anti-UV and anti-discoloration treatment
Specification
| PC | |
| CPU | Intel® i7-10870H, 8 Cores, 16 Threads, Base 2.2 GHz, Turbo 5.0 GHz |
| Chipset | HM470 high-speed chipset |
| Memory | 2x DDR4 memory, supports 2133/2400/2666MHz memory, supports up to 64G |
| Storage Capacity | 1*M.2 interface: supports Key-M interface M.2 2280, optional M.2 2242, the 10th generation supports NVME (PCIE) protocol by default, the SATA protocol can be changed, and BIOS changes are required 1*MSATA interface: supports MINI_SATA disk, supports MSATA 3.0, can be changed to support WIFI 1*SATA interface: standard SATA hard disk interface, supports SATA 3.0 1*SATA_PWR pin: hard drive power supply pin, can take power 5V, 12V |
| Graphics | Integrated Intel UHD Graphics super core graphics card, supports single display, dual display/triple display copy, dual display/triple display expansion, single display under DOS |
| Audio | Integrated Cmedia HS_100B USB audio chip |
| Network | Realtek 8111H+Intel I219V Gigabit network card; supports wake-on-LAN, PXE function |
| Wireless Network | 1*MINI_PCIE interface: supports WIFI/4G/Bluetooth module |
| Preinstalled OS | Windows 10 Pro 64bit |
| Operation System | Support Windows 10/11, Linux, Ubuntu, Debian, etc. |
| External I/O Ports | |

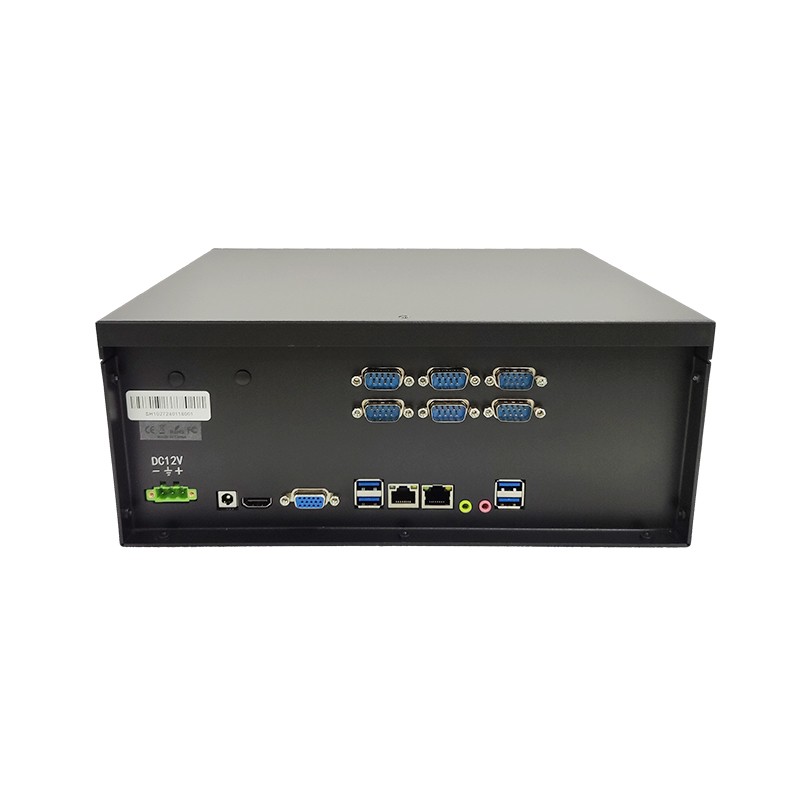

| Front I/O | 4*USB3.0 6*COM (COM1 supports standard RS232, RS485, RS422 optional, BIOS setting) 2*RJ45 1*Line-out 1*MIC 1*VGA 1*HDMI 1*12V DC-JACK 1*3-pins terminal block connector(DC12V) |
| Rear I/O | 1*On/Off Button |
| Power Supply | |
| Working voltage | DC 12V |
| Power consumption | ≤40W |
| Power adapter | AC 100 ~ 240V input and DC +12V@5A MAX output, 60W |
| Enclosure | |
| Material | Aluminum alloy shell + Zinc Plating cold rolled steel baffle |
| Finish | Aluminum alloy shell: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment Front and rear baffles: powder coated |
| Color | Black |
| VESA mounting | Wall mount |
| IP grade | N/A |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | operating: -20 °C（-4℉） to 60°C（140℉）, storage: -30 °C（-22℉） to 70°C（158℉） |
| Relative humidity | Up to 90% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 3.73kg |
| Product Dimension | 282*236*119.6mm |
| Packing info | 1pcs/ctn 46×38×44cm 5kg |
| Accessories | Power adapter, power plug, installation bar, screws |
| Other | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
