Features:
Based on Intel Alder/Raptor Lake desktop platform, 12th Gen Intel Core i7-12700 CPU
Adopts ATX motherboard size
2*LAN, LAN1 uses Intel I219LM, LAN2 uses Intel I226-V, supports 2.5Gbps
NVIDIA RTX3060 12G independent graphics card, 3*DP+1*HDMI
Specification
| PC | |
| CPU | Intel® Core i7-12700, 12 Cores ( 8 Performance-core, Efficient-core), 20 Threads, Turbo 4.9 GHz, Fan |
| Chipset | Intel Q670/H610 |
| Memory | 2*18G DDR5 |
| Storage | 4x SATA3.0 interfaces, support Raid 0/1/5/10 2x M.2 2280 M-Key (NVME/SATA3.0) |
| Graphics | NVIDIA RTX3060 |
| Audio | ALC897 |
| Network | 2*LAN, LAN1 uses Intel I219LM, LAN2 uses Intel I226-V, supports 2.5Gbps |
| Wireless | WIFI/Bluetooth, 4G Optional |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Other | Power-on, timed power-on, network wake-up, PXE boot, watchdog (level 0 to 255) |
| I/O | |

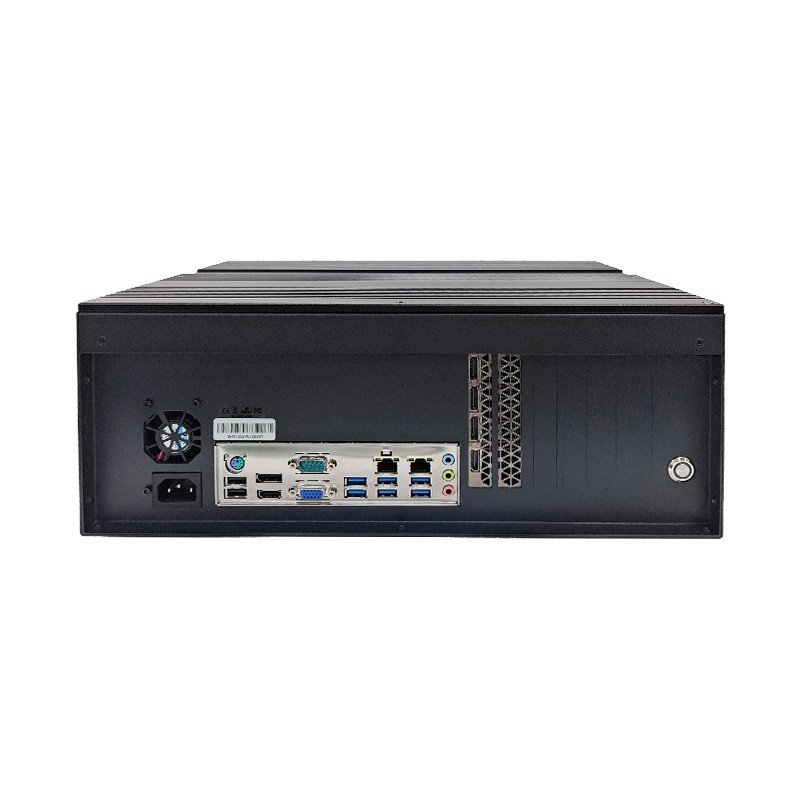

| I/O | 2x USB3.1, 2x USB3.0, 2xUSB2.0 1x PS/2 1x COM 2x RJ45 1x Line-OUT 1x Line-IN 1x MIC-IN 1x VGA 1x HDMI 1x DP 1x AC100-240V 3x DP 1x HDMI |
| Power Supply | |
| Working voltage | AC100-240V |
| Power consumption | 250W |
| Enclosure | |
| Material | Aluminum alloy baffle + galvanized cold-rolled sheet shell |
| Color | Black |
| Cooling system | Active - Fan |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 70°C |
| Relative humidity | Up to 90% at all relevant temperatures |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 7.8 |
| Product dimension | 402.3*295.76*162.18mm |
| Packing info | 1pcs/ctn 66×24×48cm 12kg |
| Accessories | Power cord, power adapter, mounting edge strip, mounting screws |
| Other | |
| Warranty | 2 years warranty |
| Certificates | CE, FCC, RoHS |
