Features
1. All aluminum structure, fanless design.
2. Intel 12th Alder Lake-U Cor i5/i7 Processor.
3. Support TPM2.0, support windows 11.
4. Support 1*M.2 2280 slot, 1*2.5”HDD.
5. Support 6*COM (COM1 - COM2 for RS232, COM3 - COM6 for RS485).
6. 2*HD-MI,1*Type-C,support synchronous/asynchronous triple display.
7. Support OS: Windows 10, Windows 11, Linux.
Specification
| Model: SM8122 | |
| PC | |
| CPU | Intel Core i5-1235U (10 core 12 threads, Turbo 4.4G), Fanless |
| Intel Core i7-1255U (10 core 12 threads, Turbo 4.7G), Fanless | |
| RAM | Support 1*DDR5 4800 SODIMM memory slot, Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel Iris Xe Graphics |
| Display Port | 2*HDMI,1*Type-C |

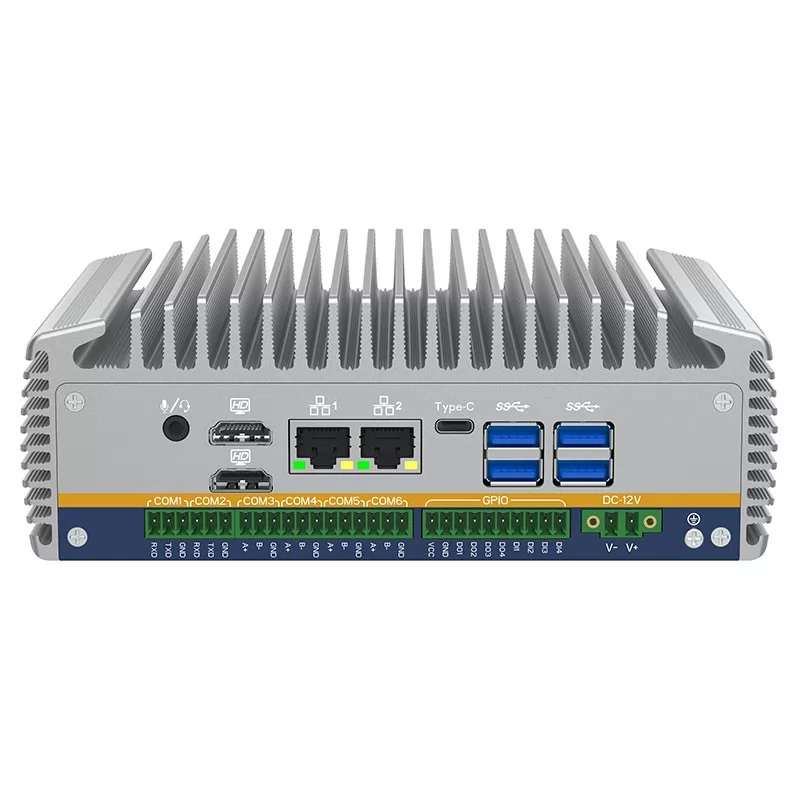

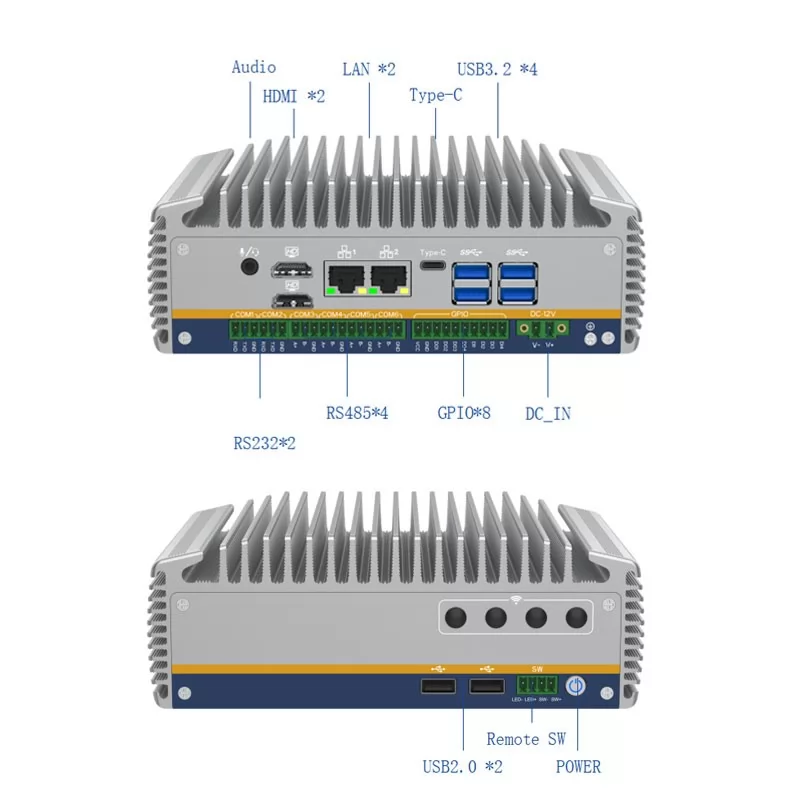

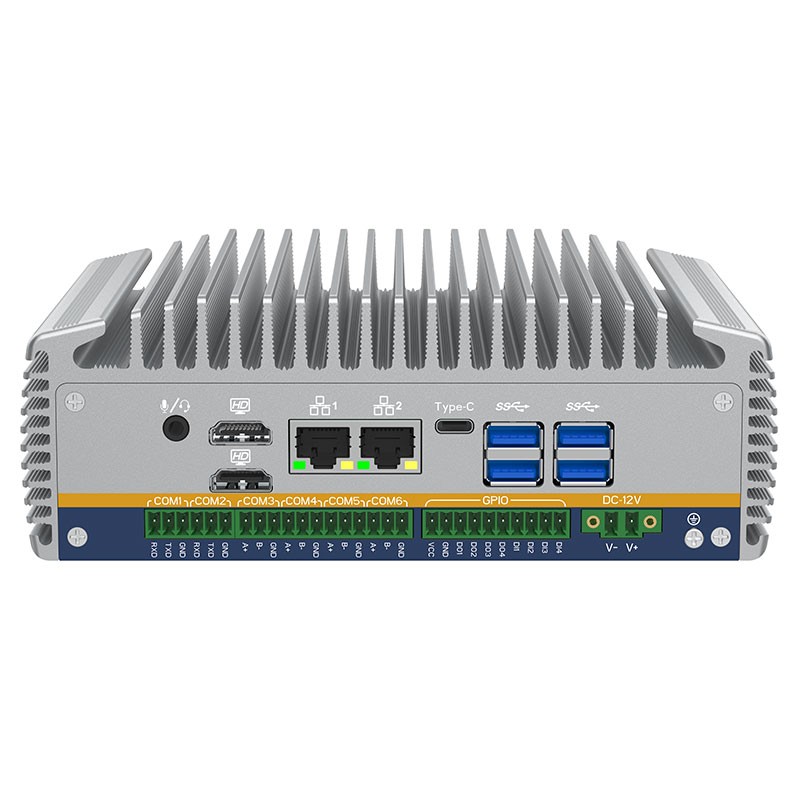

| Front I/O | 6*COM (2*COM RS232, 4*COM RS232), 4*USB3.2, 2*HDMI, 2*2.5G LAN, 1*Audio, 1*DC-IN 12V, 1*Type-C, GPIO*8 (optocoupler isolation, supporting DC 9~24V) |

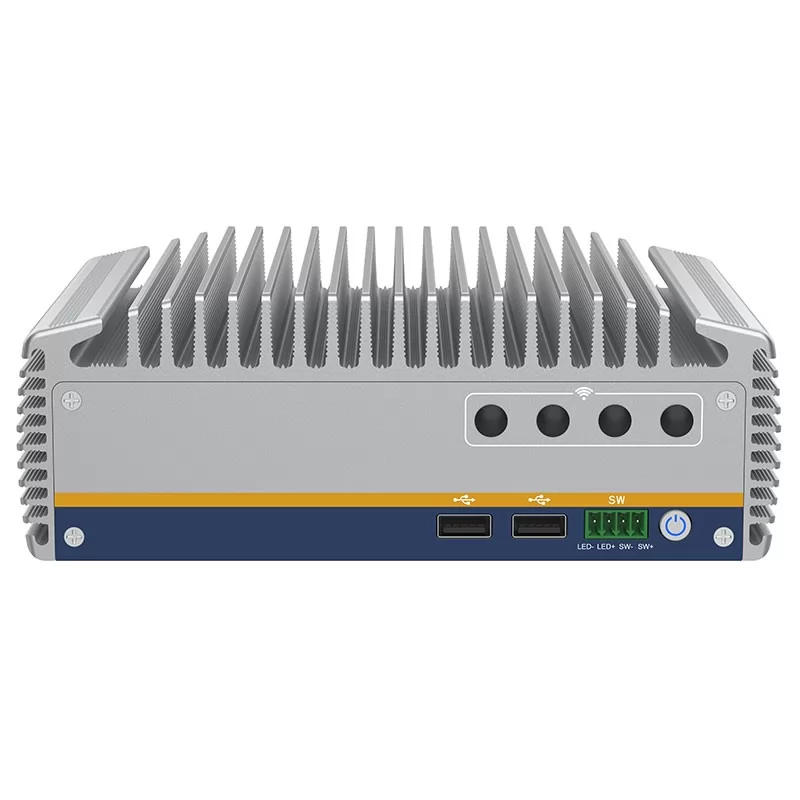

| Rear I/O | 1*Power Switch, 2*USB 2.0,1*Remote Switch |

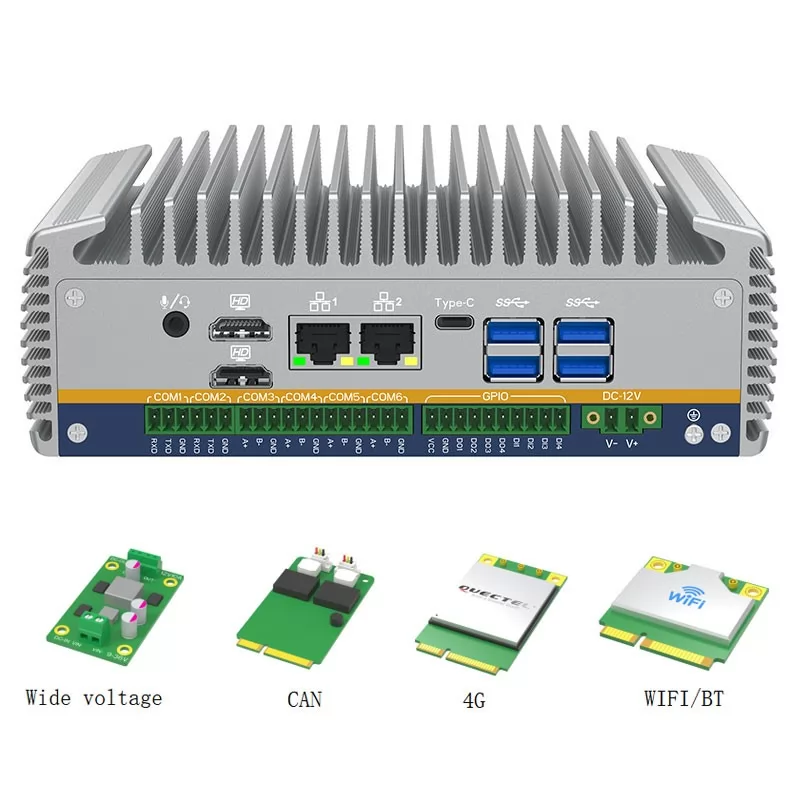

| Expansion Slot | 1*M.2 2280 slot M-Key (Support M.2 PCIE X4 and M.2 NVME); 1*Mini PCIE (PCIE/ USB2.0 Support 4G/ WIFI/ BT); 1*M.2 2230 slot E-key (PCIe X1 & USB2.0 / CNVI, Support WIFI/ BT); |
| Network | 1*Intel i226-V 100/1000/2500M, 1*Intel i226-LM 100/1000/2500M |
| Storage | Support 1*M.2 2280 slot, 1*2.5” HDD |
| Other Function | TPM2.0, Auto power on when there is electricity, Wake on LAN, PXE boot, Watch Dog |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V (9-36V DC Optional) |
| Enclosure | |
| Material | High-quality all aluminum |
| Color | Grey (color can be customized) |
| Operating Environment | |
| Temperature Range | operating: -20°C ～ +70°C, surface air flow |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.54 kg |

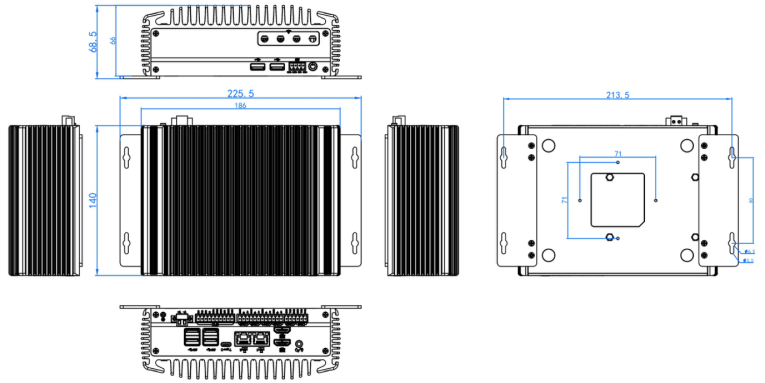

| Product Dimension | 225.5 * 140 * 68.5 mm |
| Packing size | 10 pcs per carton, carton size: 720*300*450 mm |
| Accessories | Power adapter, power cord, Vesa mount,warranty card |
| Other | |
| Mounting (options) | wall mounting brackets (optional) |
| Warranty | 2 years warranty |
| Certificates | CE, FCC, RoHS |
