Features:
Intel 4th Core i5/i7 processor
6xCOM(two of them supports RS485/422)
2x Intel i210/i211 Gigabit LAN
One-key restore, watchdog, diskless boot
Low power fanless
Industrial grade working temperature -20℃~70℃
Specification
| Model: SM11-2 | |
| PC | |
| CPU | Intel® Core i5-4278U, 2 Cores, 4 Threads, Base 1.6GHz, Turbo 2.6GHz, Fanless |
| CPU Optional | Intel® Core i7-4578U, 2 Cores, 4 Threads, Base 1.8GHz, Turbo 3.0GHz, Fanless |
| Memory | 1xDDR3L SODIMM, Max 8GB |
| Storage | 1x MSATA 1x HDD/SSD |
| Display | 1x HDMI, 1x VGA |
| Network | 2x GbE RJ45 Intel i211/i210 |
| I/O | 2x USB3.0, 6x USB2.0, 2xLAN(GbE RJ45 Intel i211/i210), 6xCOM(2 of them supports RS485/422), 1x HDMI, 1xVGA, 1x Power Button, 1x3.5mm Jack, 1x Mic in, 2x Antenna port, be used for WIFI/3G/4G |
| Expansion Slot | 1x Mini-PCIe half card, support WIFI Bluetooth 1x Mini-PCIe full card (with SIM card holder), support 3G/4G module, WIFI Bluetooth |
| BIOS | AMI EFI BIOS |
| WDT | Support hardware reset (256 level, 0-255 sec) |
| Operation System | Windows® 7/8/10，WES 7/10，LINUX |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤15W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | White |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, Storage: -30 to 70°C, surface air flow |
| Relative humidity | 10%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.5 kg |
| Gross weight | 2.5 kg |

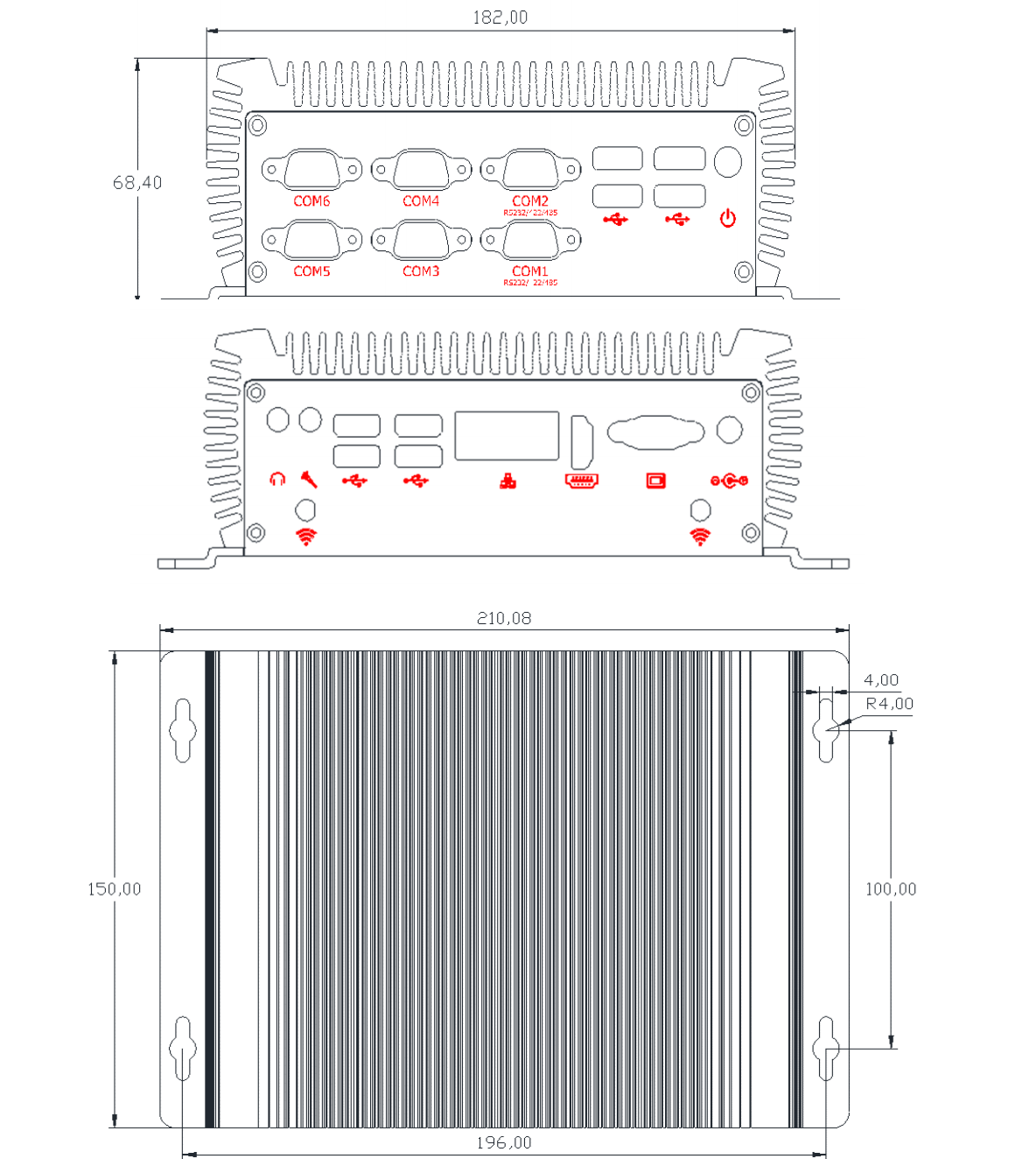

| Product Dimension | 210 x 150 x 68.4 mm |
| Packing size | 30*20*12cm |
| Accessories | Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws |
| Other | |
| Mounting (options) | Wall mounting |
| Embedded mount | |
| Warranty | 2 years warranty |
