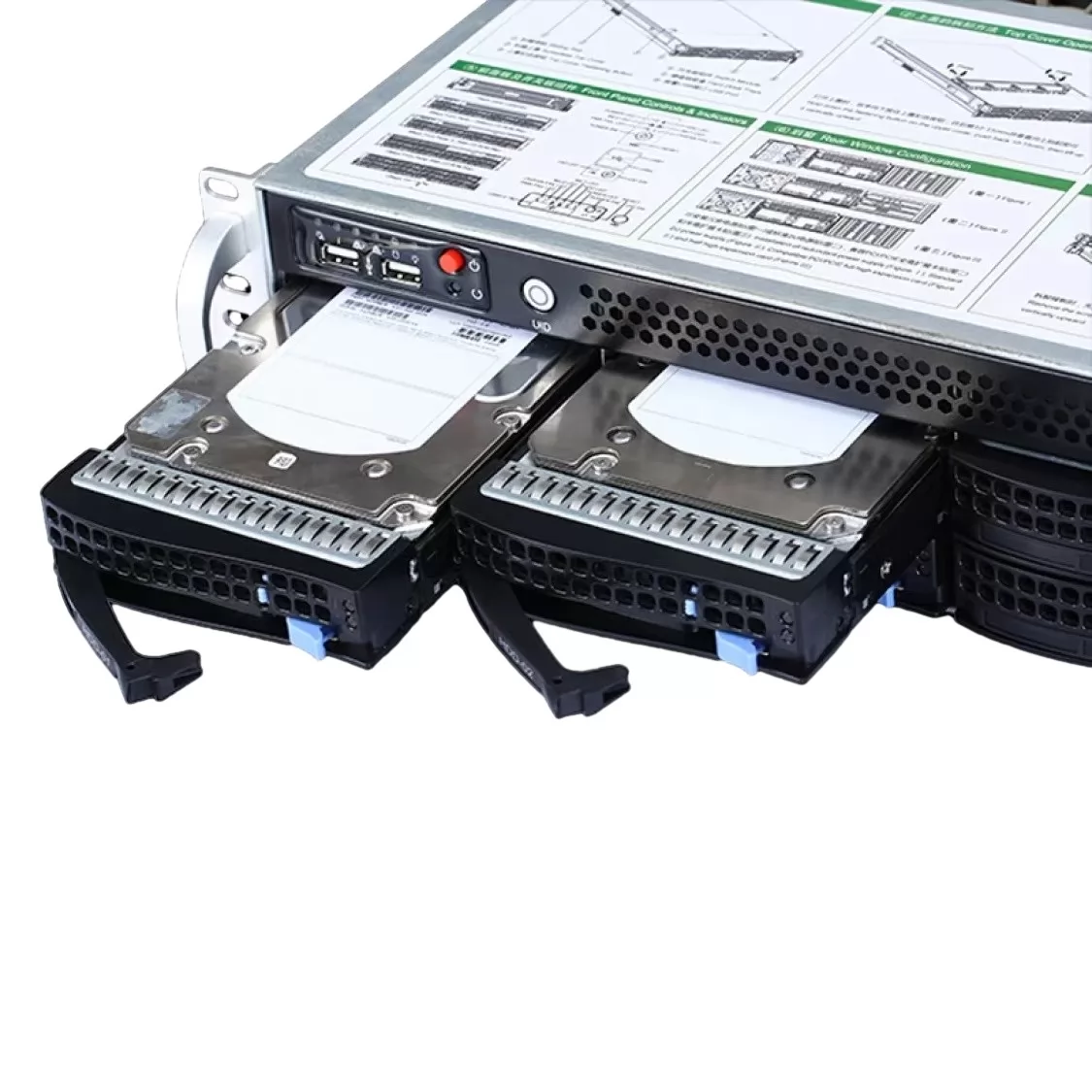

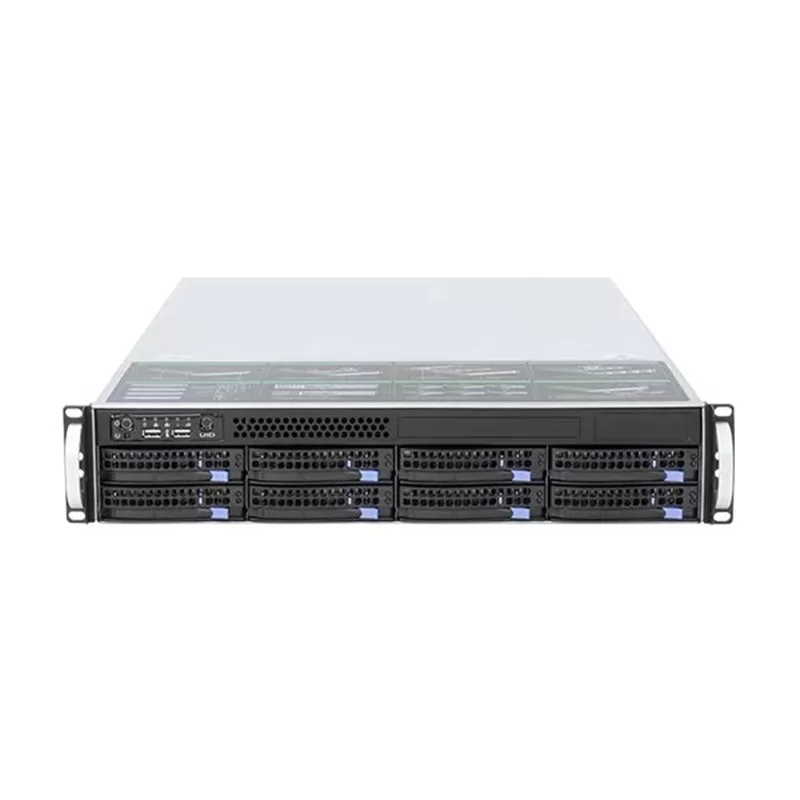

SM208 is a 2U dual-socket standard rack server, using Intel C621 chipset, supporting the second generation Intel R Xeon R scalable series processors, supporting a maximum memory capacity of 4TB and 12 3.5-inch hot-swappable hard drives, 2 An M.2 expansion interface can expand two 2.5-inch system bays, and can flexibly expand PCI-E. Equipped with a high-efficiency RAID array and integrated dual-port Gigabit network, it has load balancing, fault recovery and sideband support features, effectively reducing network delays. It supports IPMI dedicated remote management network port and dual-power (1+1) safe and redundant power supply mode. , providing guarantee for the safe operation of the machine.
Specification
| PC | |
| CPU | Dual channel CPU Intel Xeon 6133/6138 |
| Memory | 16*DDR4 SODIMM, DDR4 2933MHz, Max 4TB RAM |
| Storage | 12* 3.5" SAS/SATA hot swapping/hot plugging Built-in 2* 2.5" SATA 2* NVME M.2 2260/2280 |
| PCI-E | 4* PCI-E3.0X16, 2*PCI-E3.0X8 |
| Network | 2* integrated Gigabit Ethernet cards (RJ45 interface), Optional 10 Gigabit Ethernet card |
| I/O | 1*VGA Aspeed AST2500BMC 3* USB 3.2 Gen 1 ports (2 via headers +1 Type A) 4* USB 2.0 2* COM Ports(1 Header, 1 rear) |
| RAID | Optional Support RAID 0, 1, 10, 5, only supported under Windows Optional supports RAID 0, 1, 5, 6, 10, 50, 60, etc., supports Cache supercapacitor protection, and provides functions such as RAID level migration, hot spare disk, and online expansion. |
| Watchdog | redundant power supply 550W/800W/1300W High efficiency redundant power supply Single power supply optional |
| Temperature | Intel PECI temperature detection and control |
| Fan | CPU fan speed detection and intelligent control |
| Working temperature | Working 10~ + 40℃ |
| Working humidity | 5%~95% relative humidity, non-condensation state |
| Support system | Miarosoft Windows Server;Red Hat Enterprise Linux Server;CentOS Linux Server;Ubuntu;SUSE Linux Enterprise Server |
| Power supply | Standard is one 550W, optional 800W/1300W/2000W Optional: Submerged redundant power supply 550W/800W/1300W |
| Dimension | 87x438x557mm |
