Features:
Independent CPU, supports Intel® 12th/13th/14th generation Core™ i3/i5/i7/i9 processors
Powerful expansion capability, 1*PCIEX16, 1*32BIT PCI dual slots,compatible with graphics card/data acquisition card/motion control card and other expansion cards

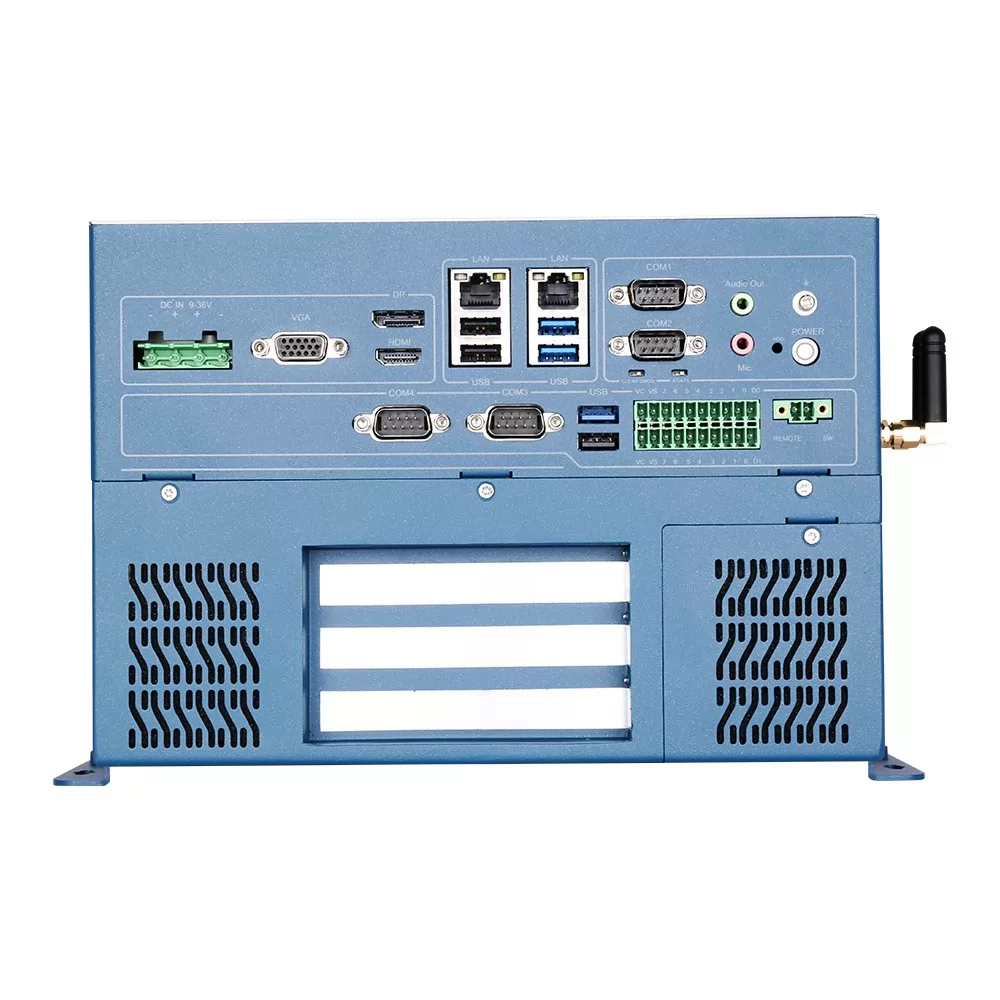

Rich I/O interfaces, 6*USB, 4*COM and 16bit isolated GPIO

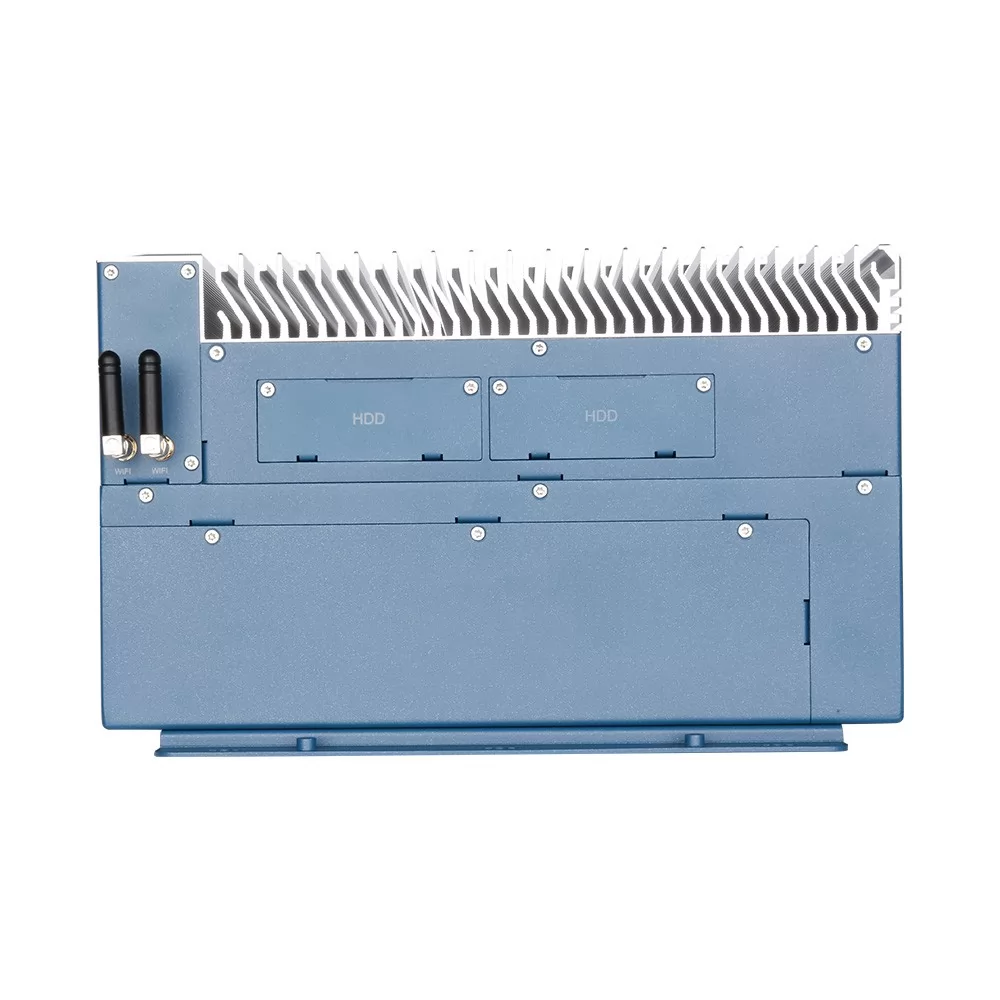

Pull-out hard disk design, easy for storage expansion, maintenance and upgrade
Support wide temperature (-20 - 70°C)/wide voltage (DC 9-36V) operation
Modular industrial design, efficient heat dissipation structure, stable and reliable performance
1*DP, 1*HDMI, 1*VGA
Application:
A high-performance expandable industrial computer, designed for supporting industrial IoT peripheral applications, with 2 PCIe/PCI slots to enhance expansion performance, built-in H610 chipset, standard configuration
Intel® 12th generation Alder lake-S series independent CPU, dual-channel DDR5 and rich I/O interfaces, 9V-36V wide voltage input, excellent heat dissipation structure and strong mechanical design to ensure the reliability and stability of applications in harsh environments, modular interface design, easy to upgrade and expand, adapt to industrial automation, machine vision, power communication, rail transportation, smart medical and other fields,
bringing excellent computing power and flexible expansion performance.
Specification
| PC | |
| CPU Optional | Intel® Core i3-12100, 4 Cores, 8 Threads, Turbo 4.3GHz, 12 MB Cache, Fan |
| CPU Optional | Intel® Core i5-12400, 6 Cores, 12 Threads, Turbo 4.4GHz, 18 MB Cache, Fan |
| CPU Optional | Intel® Core i7-12700, 12 Cores(8 Performance-core, 4 Efficient-core), 20 Threads, Turbo 4.9GHz, 25 MB Cache, Fan |
| CPU Optional | Intel® Core i9-12900, 16 Cores(8 Performance-core, 8 Efficient-core), 24 Threads, Turbo 5.1GHz, 30 MB Cache, Fan |
| Memory | Standard pre-install 16G DDR5 Supports 2*262-Pin SODIMM, dual-channel DDR5 4800MHz, maximum 64GB |
| Storage | Standard Pre-install 512GB SSD 2*2.5 SATA3 easy-swappable hard disk rack, large capacity 15mm thick HDD, supports up to 6Gbps transmission speed 1*full-length mSATA, with SATA3.0, supports up to 6Gbps transmission speed |
| Operating System | Supports Win10/11, Linux/Ubuntu/Redhat/Debian |

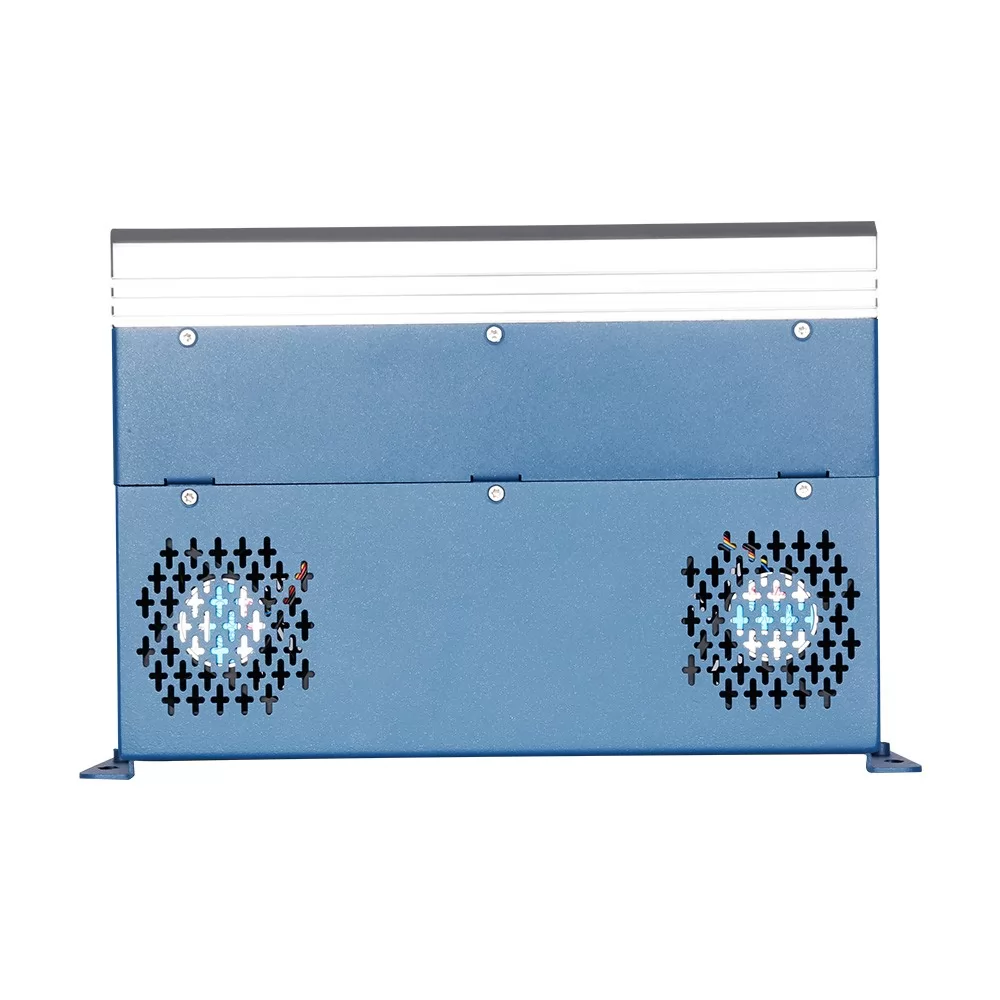

| Cooling System | Copper tube heat dissipation and Active 2*Fan |
| I/O | |
| USB | 3*USB3.0, 3*USB2.0, 4*USB2.0 pins (built-in) |
| Ethernet | 2* RJ45 Ethernet (1000 Mbps+2500Mbps) |
| COM | 4*COM, upgradeable to 6*COM (2*232/422/485 COM1, COM2 switchable via BIOS settings 4*232/485 switchable via jumper cap) |
| Signal output | 1* DP, 1* HDMI, 1* VGA |
| GPIO | 16-channel opto-isolated GPIO (can be upgraded to 16-channel non-isolated GPIO) |
| WIFI&Bluetooth | 1*M.2 supports Key-E interface WiFi/Bluetooth module |
| 4G/5G | 1*M.2 supports Key-B interface M.2, 5G (3052/3042) module or M.2, 4G (3042) module |
| Audio | Realtek ALC897 audio, 1*Line out and 1*MIC high-fidelity audio, support 5.1 channels |
| Buttons/Indicator Lights | 1* Power button w/LED, 2-pin Phoenix terminal remote switch, AT-ATX dip switch, Clear Cmos dip switch |
| Expansion | 1*PCIEX16, 1*32BIT PCI |
| Other | |
| Working voltage | DC IN 9-36V, 4-pin 7.62 pitch Phoenix terminal block, with short circuit, reverse connection, overvoltage and overcurrent protection, power consumption 300W. (Can be upgraded to 20~60V wide voltage power supply) |
| Power consumption | ≤150W |
| External Power Supply | DC 24V adapter, AC 100-240V(Optional, can be upgraded to AC 110-240V built-in switching power supply) |
| Operating temperature | -20℃～70℃ |
| Storage temperature | -30°C~80°C |
| Reliability Test | Anti-static design, anti-surge design |
| Net weight | 6.5KG |

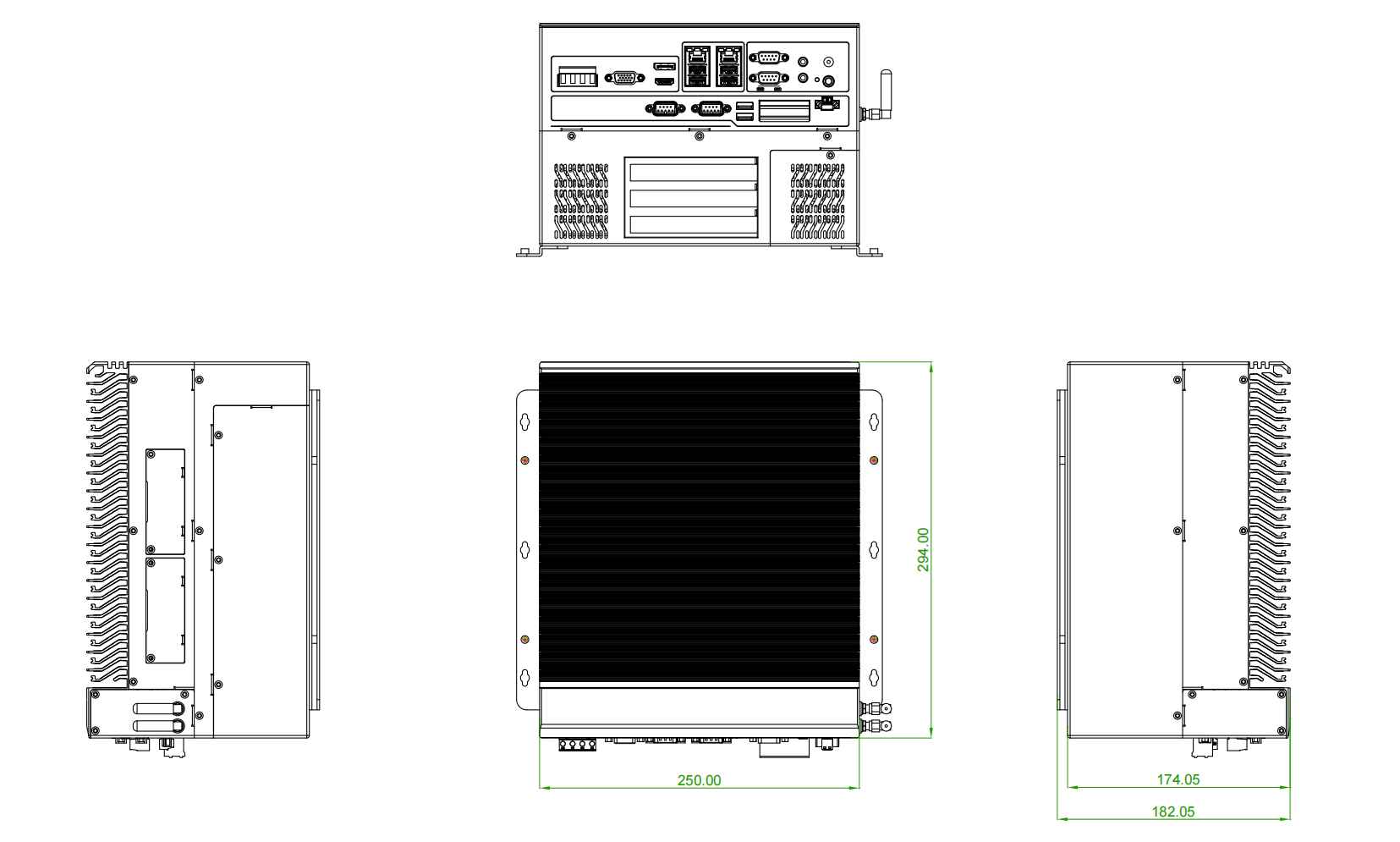

| Product Dimension | 250mm*294mm*182mm |
| Material | SGCC galvanized sheet, aluminum alloy |
| Color | Silver+dark blue |
| Installation | Wall-mounted, desktop, rack-mounted |
