Feature
Strong Performance Multitasking Assistant
Fully satisfy video processing, graphics processing, CAD modeling, game entertainment, etc.
Support WiFi6 Chip
1 * GbE RJ45 Intel i219
Energy Saving Product
Energy cost saving up to 85% Traditional desktop pc powered by 2160 wattspower supply,Mini PC powered by energy efficient 65W/100W power supply only.
Quiet Design

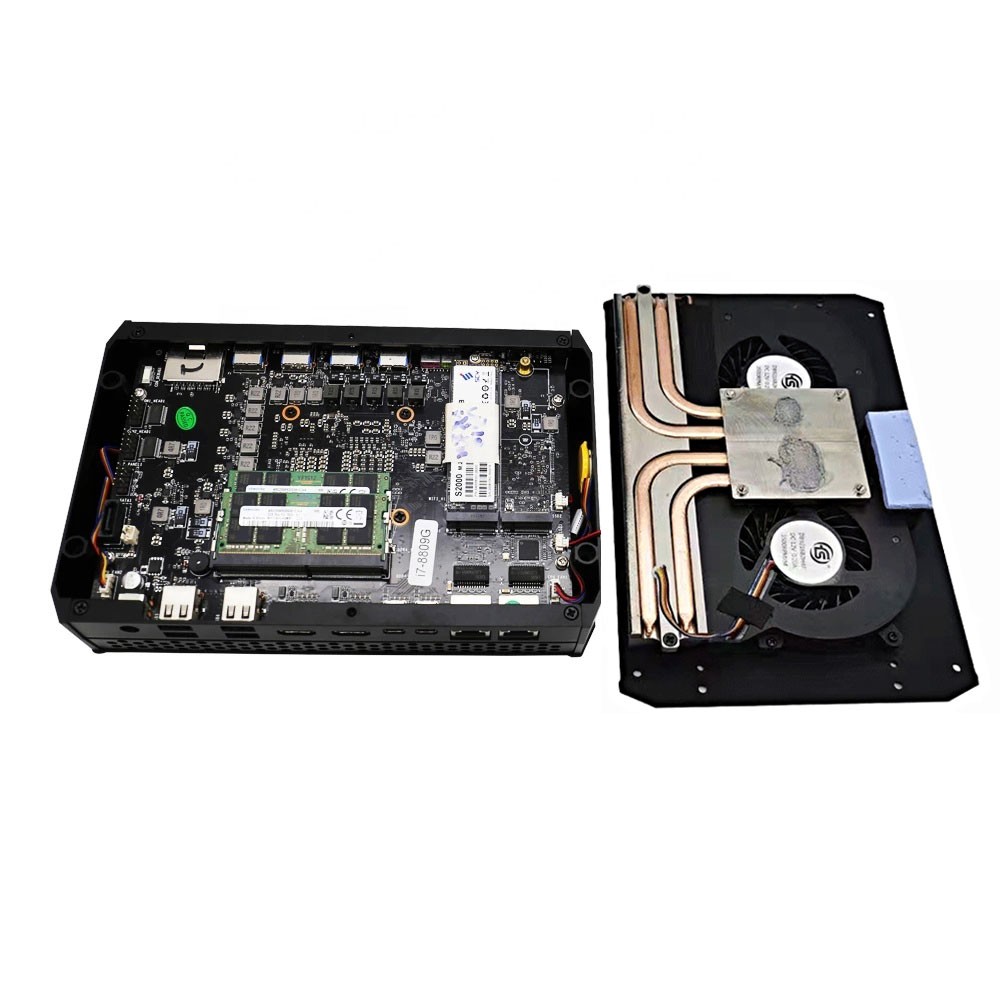

Efficient Cooling Air Duct
Two Silence Copper Fans as heat-sink for 7x24 hours stable performance, higher body heat dissipation efficiency,Built-in mute control chip, heat dissipation and noiseless, comprehensive performance increased by 40%, say goodbye to officehigh temperature crash.
Popular Games, Have Fun
Powerful performance supports the smooth running of current mainstreampopular games,stable output of lifelike graphics, seamless switching ofgame scenes, giving you an immersive feeling, and helping you to playwith full firepower.
4*4K@60Hz UHD Screens Display
Support 1 * HD 2.0+1 * DP Four-screen 4K high-definition output,expand your more possibilities, bring you more flexible space.
Specification
| Model: SM15 | |
| PC | |
| CPU Optional | Intel® Core i5-10300H, 4 Cores, 8 Threads, Base 2.5GHz, Turbo 4.5GHz |
| CPU Optional | Intel® Core i7-10750H/10870H, 6 Cores, 12 Threads, Base 2.6GHz, Turbo 5.0GHz |
| CPU Optional | Intel® Core i5-1135G7/1145G7, 4 Cores, 8 Threads, Base 2.4GHz, Turbo 4.2GHz |
| CPU Optional | Intel® Core i7-1165G7, 4 Cores, 8 Threads, Base 2.8GHz, Turbo 4.7GHz |
| CPU Optional | Intel® Core i9-11900H, 8 Cores, 16 Threads, Base 2.5GHz, Turbo 4.9GHz |
| CPU Optional | Intel® Core i7-1265U/1255U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.8 GHz |
| CPU Optional | Intel® Core i5-1235U/1245U, 10 Cores(Performance-core 2, Efficient-core 8), 12 Threads, Turbo frequency 4.4 GHz |
| CPU Optional | AMD R7-5800H, 8 Cores, 16 Threads, Basr Frequency 3.2 GHz, Turbo Frequency 4.4 GHz |
| CPU Optional | AMD R5-5625H, 6 Cores, 12 Threads, Basr Frequency 2.3 GHz, Turbo Frequency 4.3 GHz |
| Memory | 2x DDR4 SODIMM, Max 64GB 12 and 13gen: 2x DDR5 SODIMM, Max 64GB |
| Storage | 2 x M.2 NVME (one SSD1 supports M.2 SATA) |
| Display | 1 x HDMI 1.4, 1 x DP |
| Network | 1 x GbE RJ45 Intel i219 |
| I/O | 3 x USB3.0, 4 x USB2.0, 1 x USB Type-C (display supported), 1 x TF Card, 1 x HDMI 1.4, 1 x DP, 1 x Power Button 12V-19V DC IN, 1 x 3.5MM Jack, 1 x Mic in |
| Expansion Slot | 1 x M.2 WIFI |
| Operation System | Windows® 10，LINUX |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12-19V |
| Power consumption | ≤15W |
| Enclosure | |
| Material | Aluminum Alloy +ABS |
| Color | Black |
| Operating Environment | |
| Temperature Range | Operating: -20 to 60°C, Storage: -30 to 70°C, surface air flow |
| Relative humidity | 10%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.2 kg |
| Gross weight | 2 kg |
| Product Dimension | 202 x 130 x 37 mm |
| Packing size | 30*20*15cm |
| Accessories | Power adapter |
| Other | |
| Mounting (options) | Wall mounting |
| Desktop installation | |
| Warranty | 2 years warranty |
