Features
1. All aluminum structure, fanless design.
2. Intel 14th Core Ultra i5/i7 Processor.
3. Support TPM2.0, support windows 11.
4. Support 1*M.2 2280 slot, 1*2.5”HDD.
5. Support 2*COM (2*COM RS232/485 is Optional).
6. 8*RJ45 2.5G Ethernet ports (1 Intel i226-LM with vPro, 7 Intel i226-V)
7. 1*HD-MI,1*DP,1*Type-C,support synchronous/asynchronous triple display.
8. Support OS: Windows 10, Windows 11, Linux.
Specification
| Model: SM8U8 | |
| PC | |
| CPU | Intel Core Ultra 5 125U (12 core 14 threads, Turbo 4.3G) |
| Intel Core Ultra 7 155U (12 core 14 threads, Turbo 4.8G) | |
| NPU | Intel AI Boost（Max Frequency 1.4 GHz） |
| RAM | Support 2*DDR5 5600 SODIMM memory slot, Max. Support 64GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel Graphics |
| Display Port | 1*HDMI, 1*DP, 1*Type-C |

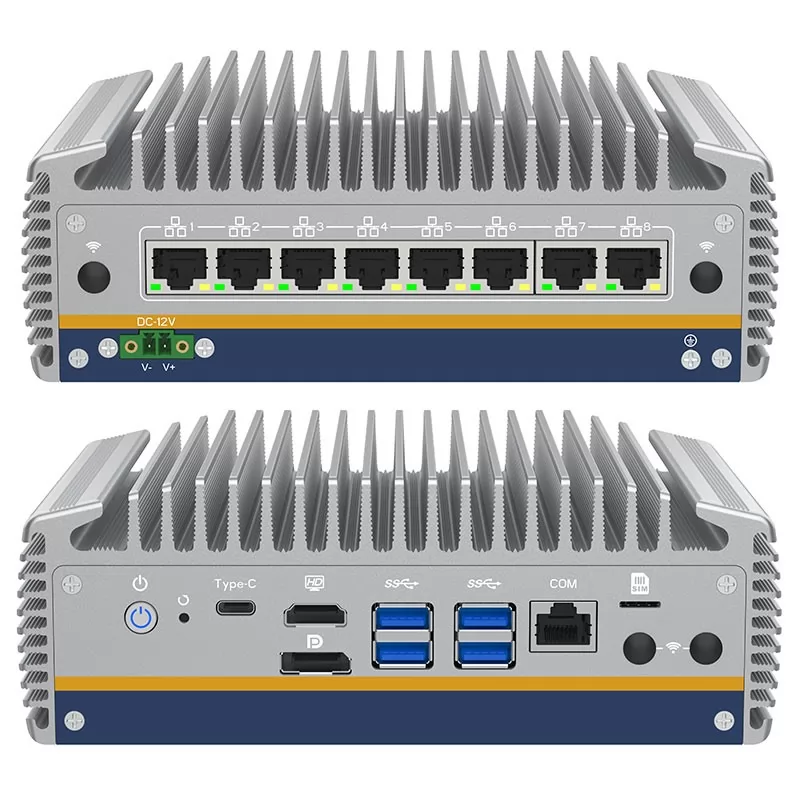

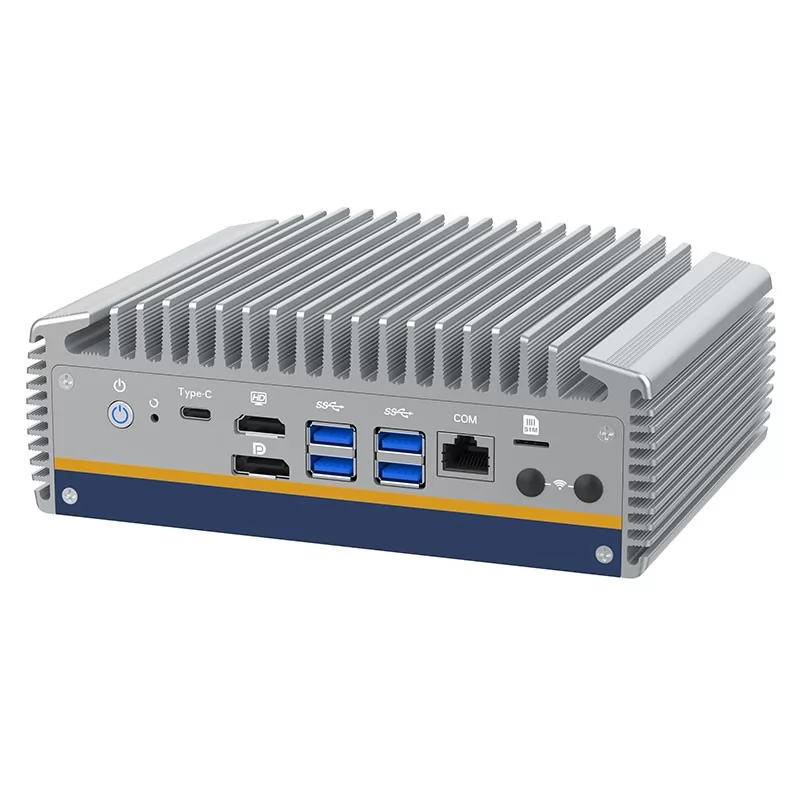

| Front I/O | 1*Power Button, 1*Restart Button, 1*Type-C (support DP / USB3.2 / PD 5V1A), 1*HDMI, 1*DP, 4*USB3.2, 1*RJ45 serial port (support Console), 1*Nano-SIM card slot |
| Rear I/O | 1*DC-IN 12V, 8*2.5G LAN ( 1*Intel i226-LM with vPro, 7*Intel i226-V) |
| Expandable I/O | Optional 2*USB2.0, 4*GPIO |
| Expansion Slot | 1*M.2 2280 slot M-Key (Support M.2 PCIE4.0 X4 and M.2 NVME); 1*M.2 3052 slot B-key (USB3.0 Support 4G/5G); 1*M.2 2230 slot E-key (CNVio2, Support WIFI); |
| Network | 7*Intel i226-V, 1*Intel i226-LM |
| Storage | Support 1*M.2 2280 slot, 1*2.5” HDD |
| Other Function | TPM2.0, Auto power on when there is electricity, Wake on LAN, PXE boot, Watch Dog |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | High-quality all aluminum |
| Color | Grey (color can be customized) |
| Operating Environment | |
| Temperature Range | operating: -20°C ～ +70°C , surface air flow |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.3 kg |
| Product Dimension | 225.5 * 140 * 68.5 mm |
| Packing size | 10 pcs per carton, carton size: 720*300*450 mm |
| Accessories | Power adapter, power cord, Vesa mount,warranty card |
| Other | |
| Mounting (options) | wall mounting brackets (optional) |
| Warranty | 2 years warranty |
| Certificates | CE, FCC, RoHS |
None
Application Scenarios
✅ AI-Powered Firewalls
Deploy 8x 2.5G ports + vPro for real-time traffic filtering, with NPU-accelerated threat detection.
✅ High-Security VPN Gateways
Dual DDR5 64GB RAM ensures encrypted tunneling at scale; fanless design survives 24/7 mission-critical ops.
✅ Edge Network Servers
Triple-display monitoring + 4G/WiFi6 redundancy for remote site management in extreme temperatures.
✅ Industrial Routers
-20℃~70℃ ruggedness + 255-level watchdog guarantees uptime in unstaffed substations/5G towers.
✅ Cybersecurity Appliances
TPM 2.0 + PXE boot secures firmware updates; M.2 SSD stores massive attack pattern databases.
