Feature

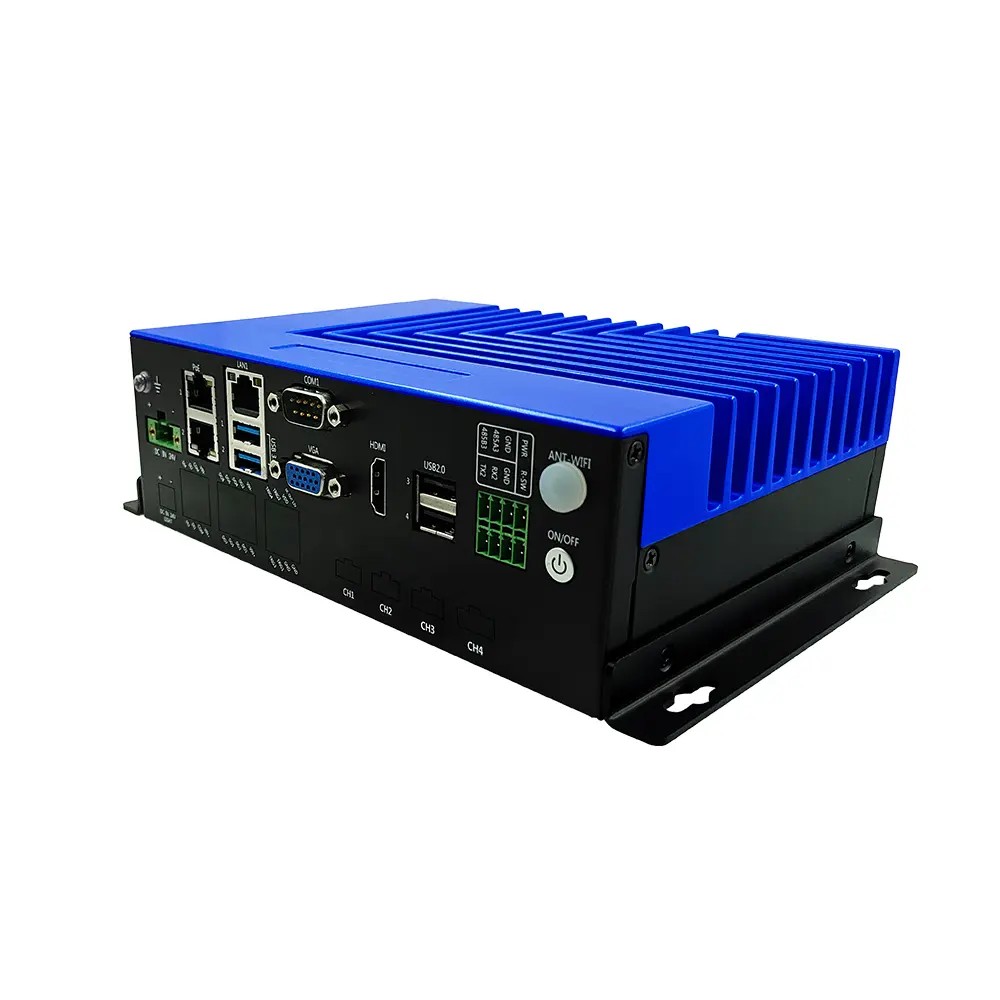

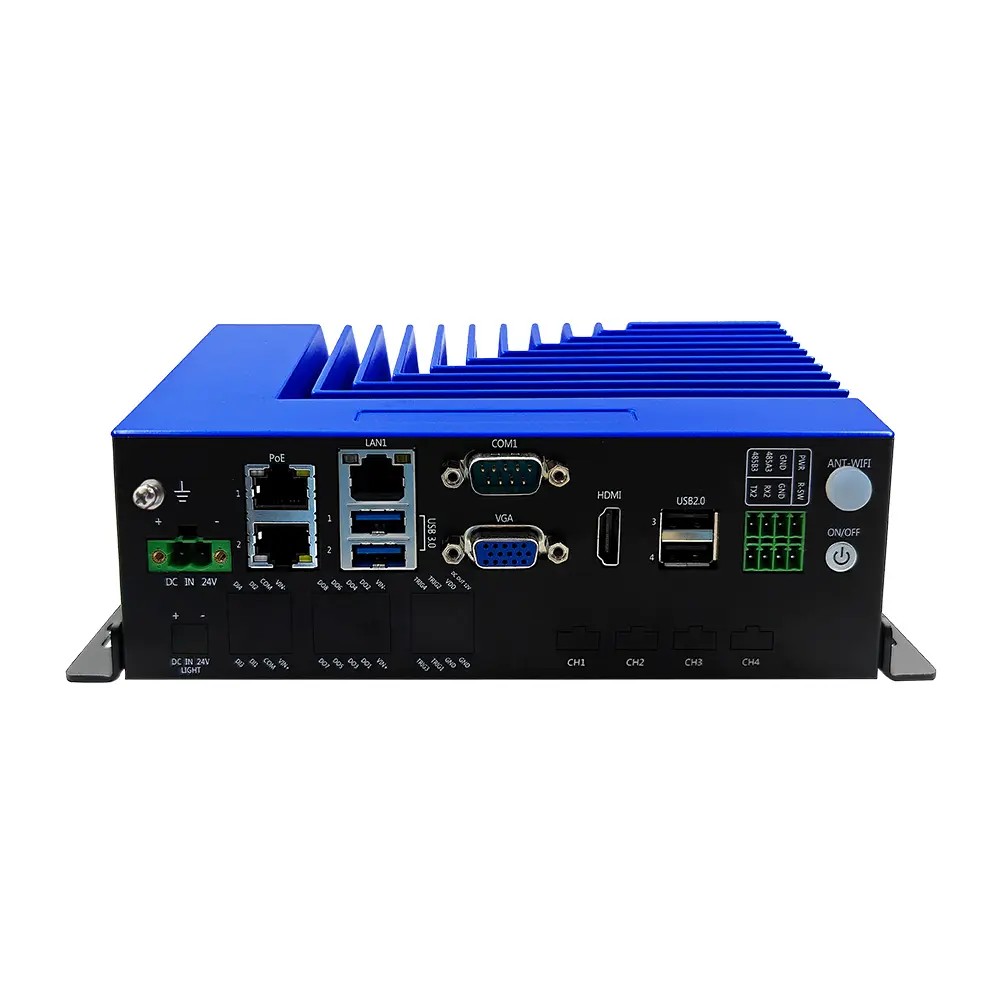

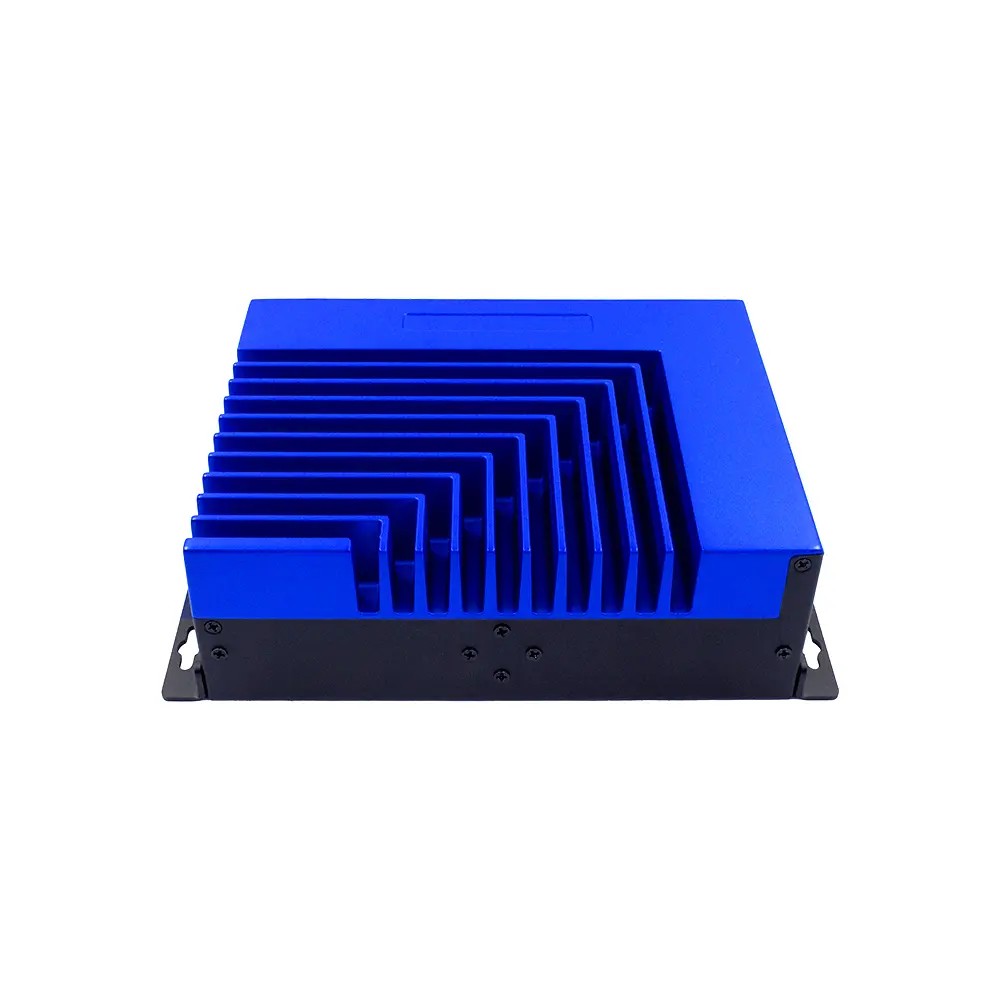

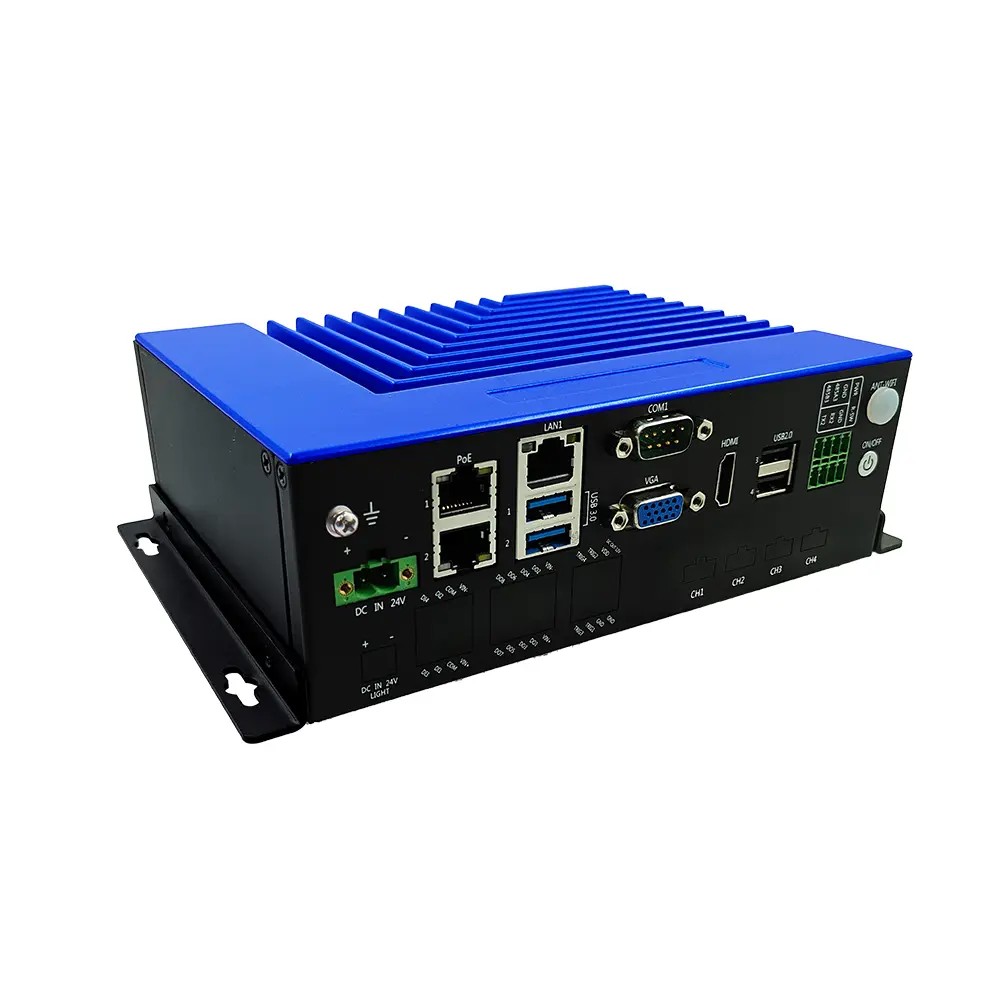

SM709-4 is a high-performance embedded industrial machine. It adopts JasperLake N5095 CPU, equipped with board-mounted memory particles and 4GB memory capacity; VGA and HDMI interfaces for display; Intel i226V chip and RTL8111H chip for network, providing 3* Gigabit Ethernet ports; SM709-4 also provides other rich interfaces, such as 2* USB3.0 and 3* USB2.0 (with 1 standard USB2.0 interface built-in), 2* RS-232 interfaces and 1* RS-485 interface. The SM709-4 also provides other rich interfaces, such as two USB3.0 and three USB2.0 (built-in one standard USB2.0 interface), two RS-232 interfaces and one RS-485 interface, and one M.2 hard disk interface. The whole machine is suitable for various embedded applications with high performance, fanless and rich expansion interfaces.
Specification
| SM709-4 | ||||||||
| system hardware | processing unit | model number | kernel (computer science) | main frequency | Maximum RWD | Maximum memory | (computing) cache | power wastage |
| JasperLakeN5095 | 4C4T | 2.0GHZ | 2.9GHZ | 16GB | 4MB | 15W | ||
| random access memory (RAM) | 4 DDR4 memory chips on board with 4 GB memory capacity | |||||||
| operating system | Win10 64-bit 21H2+ with Ubuntu 20.04 | |||||||
| display card (computer) | Collective Graphics INTEL UHD Graphics | |||||||
| BIOS | AMI BIOS | |||||||
| watchdog | Supports 256 levels (0~255), programmable | |||||||
| power supply | electricity supply | DC IN 24V, standard product shipped with 24V/2.5A power adapter. | ||||||
| activation method | Power-on self-powered/key-triggered power-on (see Chapter 7 for switching details) | |||||||
| power switch | 1* switch with light | |||||||
| panel interface | display mode | 1*VGA: Maximum resolution 1920*1200@ 60 Hz | ||||||
| 1*HDMI : Maximum resolution 4096*2160@ 60 Hz | ||||||||
| COM1 | 1*3-wire RS-232 using 1 standard DB-9 socket | |||||||
| COM2 | 1*RS-232 for green Phoenix terminal | |||||||
| COM3 | 1*RS-485 for green Phoenix terminal | |||||||
| R-SW | 1* Remote Switch for Green Phoenix Terminal | |||||||
| PWR | 1* Power indicator for green Phoenix terminal | |||||||
| LAN | 1*Gigabit Ethernet port, using RTL8111H chip, support Wake-on-LAN, speed: 10/100/1000Mbps | |||||||
| PoE | 2*PoE, adopts Intel I226V chip, supports Wake-on-LAN, speed: 10/100/1000Mbps. | |||||||
| USB | 2*USB3.0, 2*USB2.0 | |||||||
| built-in interface | M .2 | 1*M.2 hard disk interface (M.2 2280 SATA) | ||||||
| JUSB2 | 1 x 1*4pin white docking station (USB2.0) | |||||||
| USB | 1*single layer heightened USB2.0, dongle connectable | |||||||
| dependability | operating temperature | -20℃～60℃ (excluding electronic disk) | ||||||
| Storage temperature | -40℃～85℃ (excluding electronic disk) | |||||||
| relative humidity | 5% to 90% non-condensing (excluding electronic disk) | |||||||
| Vibration during operation | System Mount SSD/mSATA: 3 Grms, IEC 60068-2-64 Random 5 ~ 500 Hz | |||||||
| Shock at work | System Mount SSD/mSATA: 30 G, IEC 60068-2-27 | |||||||
| framework | Installation | Horizontal mounting/wall mounting/rail mounting (factory default horizontal mounting, if you need wall mounting bracket or rail mounting bracket, please contact us.(Need to communicate with the business to confirm, and the business will place the order to explain) | ||||||
| Horizontal size | With stand: 219*145*65mm(L*W*H) | |||||||
| Wall-mounted size | With stand: 229*147*65mm(L*W*H) | |||||||
| Guide rail size | With stand: 189*154.5*65mm(L*W*H) | |||||||
| Weight | Approx. 1.53 Kg (excluding accessories and packaging) | |||||||
| recognizeproof | Related Certificates | FCC, CE, ROHS | ||||||
| power wastage | Typical Power Consumption | Approx. 13W | ||||||
