Precision-engineered for Industrial 5.0: Where Rugged Reliability Meets AI-Optimized Throughput
Technical Highlights Summary
All-aluminum fanless thermal design | 14th Gen Intel® Core™ Ultra with AI NPU | 4x multi-display | Triple 2.5G industrial networking | MIL-STD-810G & TPM 2.0 certified | ROS2/OpenCV pre-optimized
Fanless full aluminum alloy chassis engineered for 24/7 reliability in harsh environments (-20°C to 70°C operation).
Triple 2.5G Ethernet ports + WiFi 6/4G connectivity ensures uninterrupted data flow for IoT/IIoT ecosystems.
14th Gen Intel® Core™ Ultra with Dedicated AI Acceleration
Integrated Intel® AI Boost NPU (1.4 GHz max frequency) enables real-time machine vision/edge analytics.
32GB DDR5 5600MHz SODIMM support + PCIe Gen4 SSD expandability for high-speed data processing.
4-screen output (3x HDMI + 1x Type-C) with sync/async control for HMI dashboards and monitoring walls.
Dual storage expansion (M.2 SSD + 2.5" HDD) meets massive data caching needs.
Industrial-Grade Power Management & Security
Smart boot control: Power-on/WOL/PXE boot + 255-level watchdog for autonomous recovery.
TPM 2.0 encryption + MIL-STD-810G shock/vibration resistance for mission-critical operations.
Plug-and-Play Industrial Ecosystem Integration
Specification
| Model: SM8U3 | |
| PC | |
| CPU | Intel Core Ultra 5 125U (12 core 14 threads, Turbo 4.3G) |
| Intel Core Ultra 7 155U (12 core 14 threads, Turbo 4.8G) | |
| NPU | Intel AI Boost（Max Frequency 1.4 GHz） |
| RAM | Support 1*DDR5 5600 SODIMM memory slot, Max. Support 32GB |
| BIOS | AMI EFI BIOS |
| Display Chip | Intel Graphics |
| Display Port | 3*HDMI, 1*Type-C |

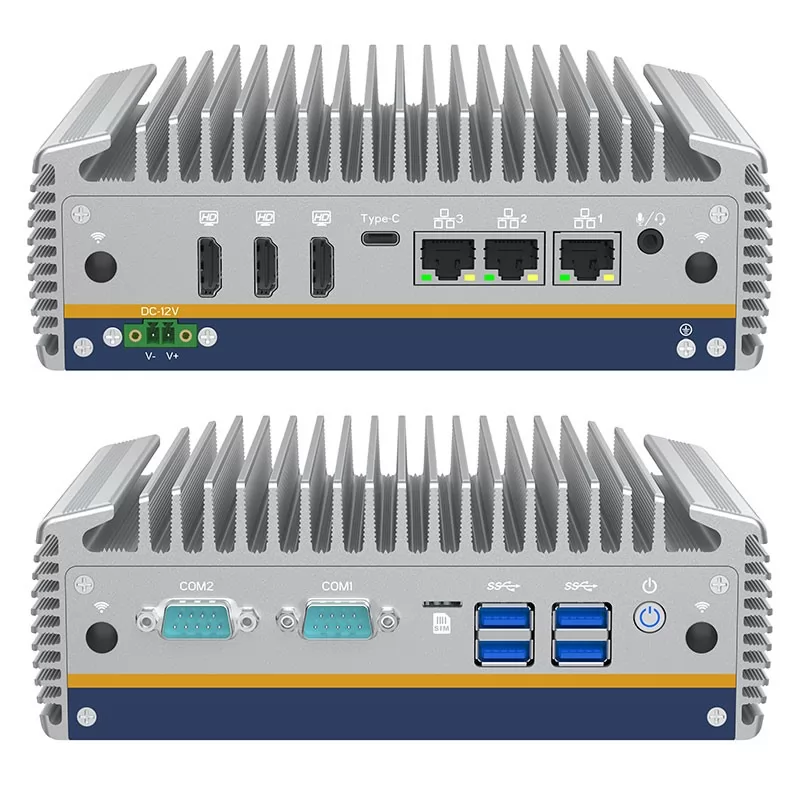

| Front I/O | 2*COM (2*COM RS232/485 Optional), 4*USB3.2, 1*Power Switch, 1*SIM slot |

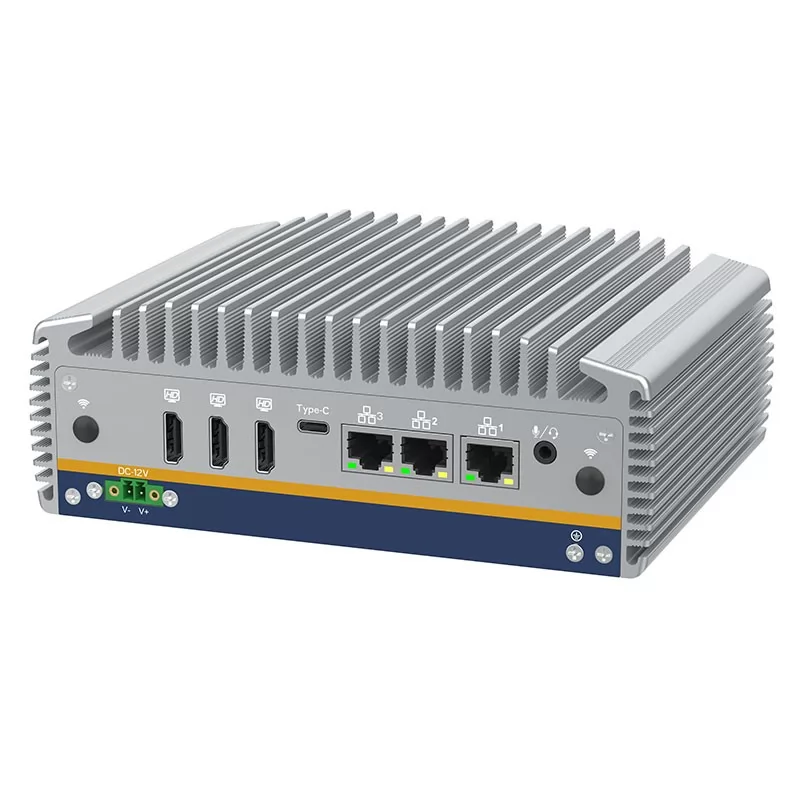

| Rear I/O | 1*DC-IN 12V, 3*HDMI, 1*Type-C(Support DP / USB3.2 / PD 5V1A), 3*2.5G LAN,1*Audio ( Support Mic and Speaker at the same time) |
| Expandable I/O | Optional 2*USB2.0, 4*GPIO |
| Expansion Slot | 1*M.2 2280 slot M-Key (Support M.2 PCIE4.0 X4 and M.2 NVME); 1*M.2 2230 slot E-key (PCIe & USB / CNVio2); 1*MINI PCIE (PCIe & USB2.0，Support 4G/WIFI); |
| Network | 3*Intel i226-V 100/1000/2500M, LAN1 (Optional Intel i226-LM, Support Intel vPro) |
| Storage | Support 1*M.2 2280 slot, 1*2.5” HDD |
| Other Function | TPM2.0, Auto power on when there is electricity, Wake on LAN, PXE boot, Watch Dog |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Enclosure | |
| Material | High-quality all aluminum |
| Color | Grey (color can be customized) |
| Operating Environment | |
| Temperature Range | operating: -20°C ～ +70°C |
| Relative humidity | 5%~95% , non-condensing |
| Packing Details | |
| Net weight | 1.1 kg |
| Product Dimension | 225.5 * 140 * 68.5 mm |
| Packing size | 10 pcs per carton, carton size: 720*300*450 mm |
| Accessories | Power adapter, power cord, Vesa mount,warranty card |
| Other | |
| Mounting (options) | wall mounting brackets (optional) |
| Warranty | 2 years warranty |
| Certificates | CE, FCC, RoHS |
None
Application Scenarios
✅ Smart Factory: AI-driven defect detection with 4-screen quality control stations
✅ AGV/AMR Fleet: Dual-band network redundancy + NPU-accelerated SLAM navigation
✅ Energy Infrastructure: Fanless operation in dusty substations + remote 4G diagnostics
