Features

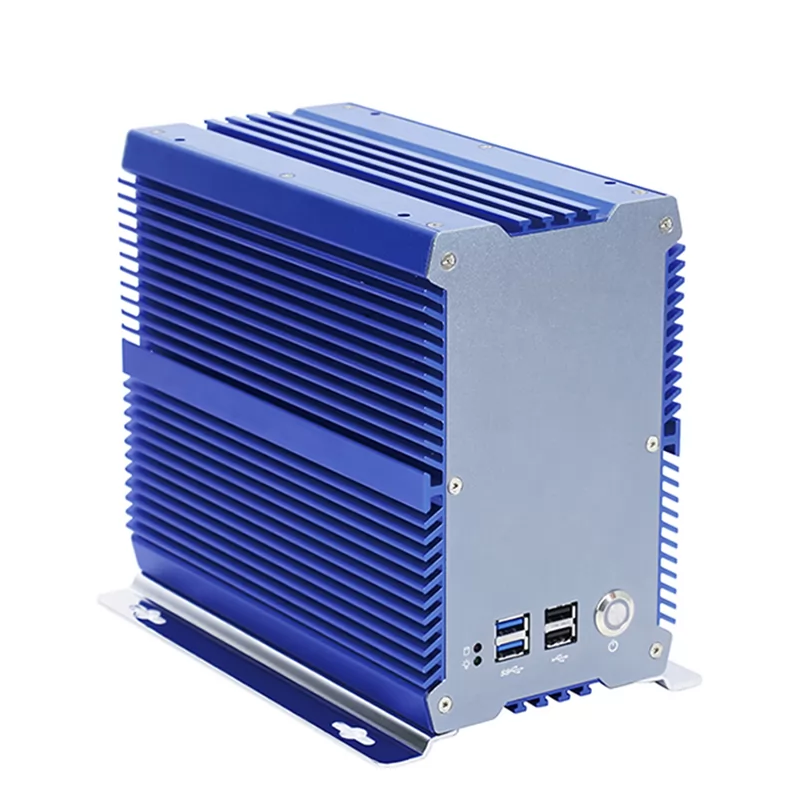

1. Full Aluminum alloy enclosure, fanless design.
2. High performance motherboard, 7x24 continuous operation.
3. Support processor Intel Celeron 3865U, i5-7200U.
4. Support MAX DDR4 1866/2133 16GB.
5. Support 1*M.2, 1*2.5 inches SATA.
6. Support WIFI/3G/4G(One of three Optional).
7. Support Max 6*COM(One support RS232/422/485 Optional).
8. Support 9-36V Wide voltage, reverse polarity protection.
9. Compatible Windows 7/8/10, Linux.
Specification
| Model: SM701 | |
| PC | |
| CPU | Intel® Core i5-7200U, dual core, 2.5GHz, Max 3.1GHz. |
| CPU architecture | KabyLake-U |
| Memory | Support 1*DDR4 1866/2133MHz,max 16GB |
| BIOS | 64Mb SPI FLASH |
| Storage | Support 1*MSATA, 1*2.5" SSD/HDD |
| Display Chip | Integrated Intel HD Graphics 610/620 |
| Display interface | 1* VGA, 1*HDMI Built-in pin, 1*LVDS plug pin(support synchronous asynchronous dual display) |
| Network | 2*Intel i211-AT 10/100M/1000M Lan |
| Front I/O | 2*USB3.0/USB2.0/LED Light, 1*Power Switch |
| Rear I/O | 2*usb3.0, 2*Intel 1000M Lan, 1*VGA, 1*3P Phoenix terminal, 1*RST reboot power button, 4*COM(Max Support 6*COM optional, COM1 Support RS232/442/485 mode optional) |
| Expansion card slot | 1*Mini-PCIE 4X+1*PCI 8X 32bit, built-in USB2.0 |
| 2*PCI(32bit), built-in USB2.0 | |
| 1*PCIE 4X +1*PCIE 1X, built-in USB2.0 | |
| Expansion interface | 1*MINI PCIE(WIFI/3G/4G Optional), SIM Card slot |
| 1*MINI PCIE(Support MSATA) | |
| Optional: GPIO, PS/2, Audio, HDMI | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 9-36V, Support reverse polarity protection |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Blue or Grey, color can be customized for bulk orders. |
| Operating Environment | |
| Temperature Range | Operating: 0 to 50°C, storage: -10 to 60°C |
| Relative humidity | 10%~95% , non-condensing |
| Packing Details | |
| Net weight | 3.6kgs |
| Gross weight | TBD |
| Product Dimension | 21.5*18.5*11.5cm |
| Packing size | TBD |
| Accessories | Power adapter, power plug, vesa bracket, user manual, warranty card, CD Card |
| Other | |
| Mounting way | Wall mounting brackets (optional) |
| Warranty | 1 year warranty |
Drawing
