Feature

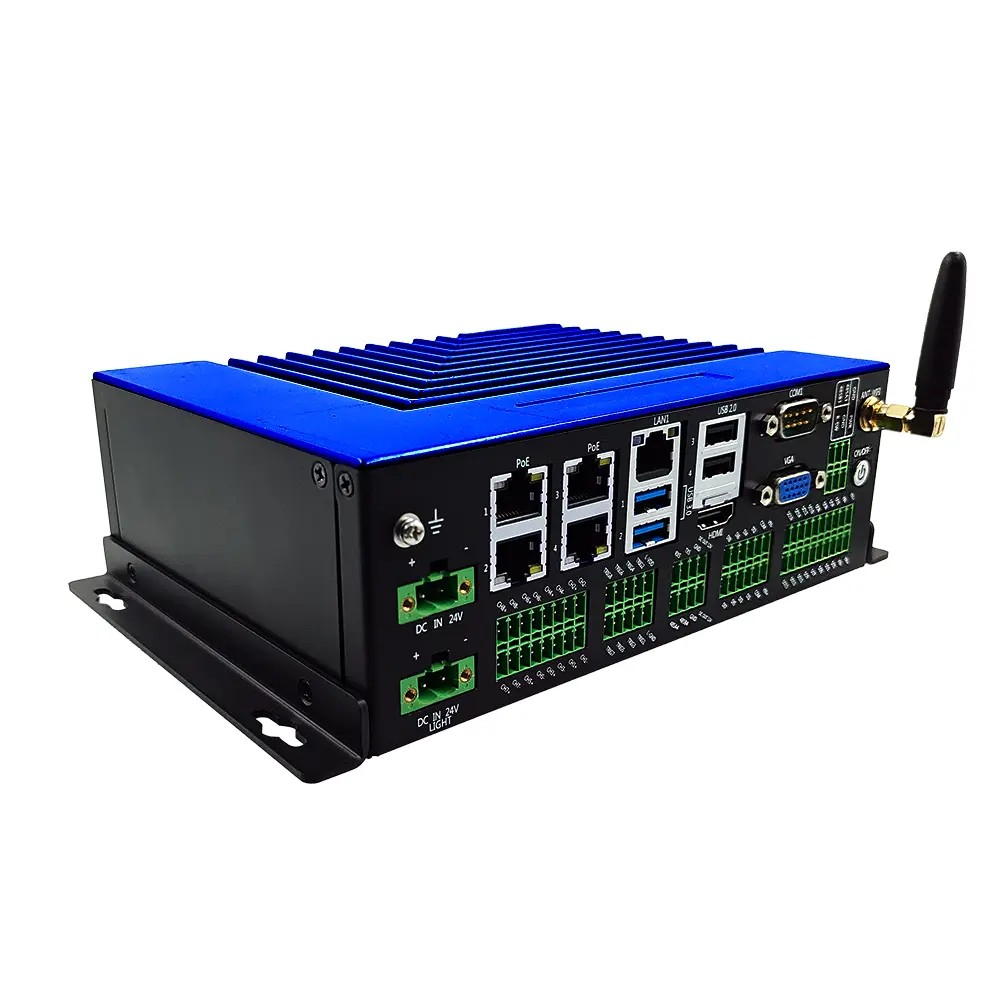

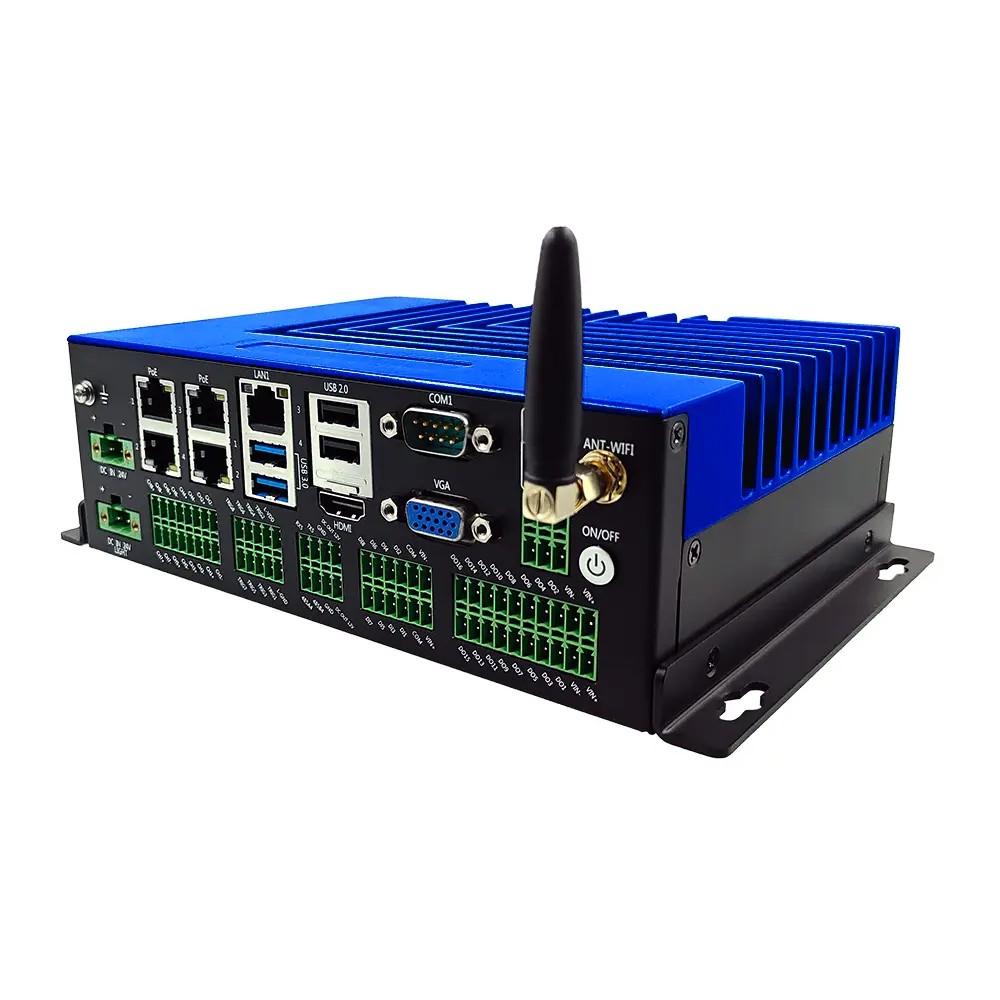

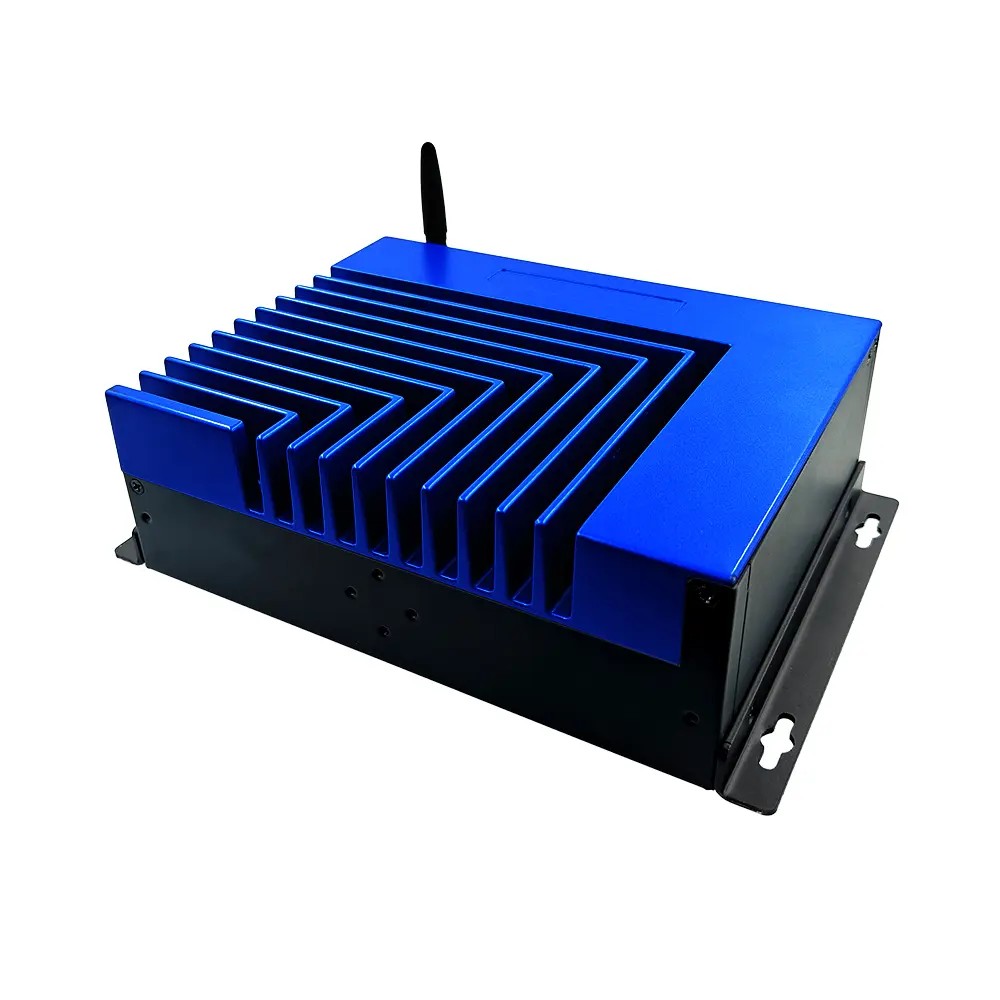

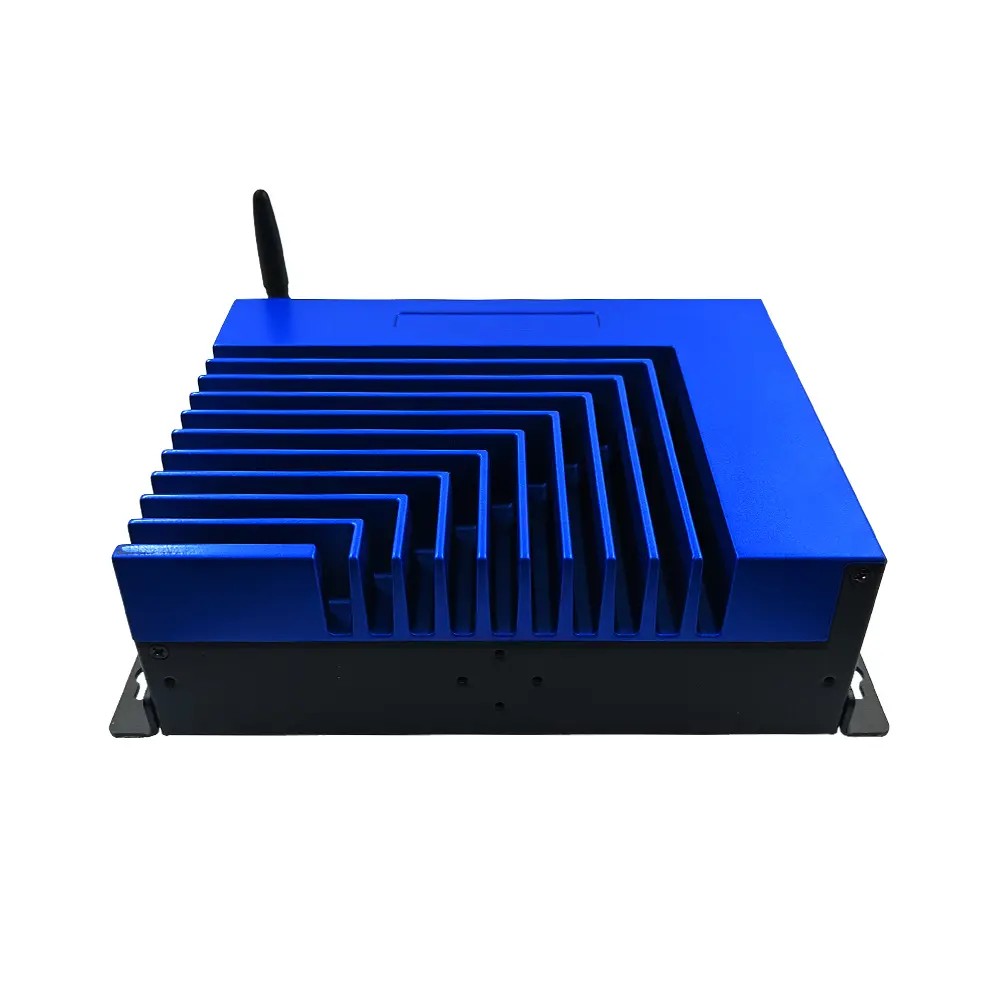

SM709-1-IO with IO Board is a high-performance embedded industrial machine . It uses Intel Processor N95 CPU and is compatible with N series CPU (default is N95); ; The board is equipped with 1 DDR4-2133~3200MHz SO-DIMM memory slot, and the memory capacity can reach up to 16 GB ; VGA interface and HDMI interface are provided for display ; The whole machine provides 5 Gigabit Ethernet ports , of which 4 network ports use Intel I 22 6V chips and support POE function, and 1 network port is equipped with RTL8111H chip. SM709-1-IO also provides other rich interfaces, such as 2 USB3.0 and 3 USB2.0 (built-in 1 standard USB 2.0 interface ) , 2 serial ports, 1 M.2 interface , etc. The expansion function has 1 6-way DO output and 8-way DI input, 8 light source interfaces and 8 light source trigger interfaces, and is equipped with board-mounted WIFI, supporting 2.4G, etc. The whole machine is suitable for various embedded occasions with its high performance, fanless and rich expansion interfaces.
Specification
SM709-1-IO Specifications | ||||||||
system hardware | processor | Intel 12th Generation - N Series | model | Kernel | Maximum frequency | |||
N95 | 4C4T | 3.4 GHZ | ||||||
N305 | 8 C 8 T | 3.8 GHZ | ||||||
Memory | 260- Pin DDR4-2133~3200MHz SO-DIMM single channel memory , maximum memory capacity 16GB | |||||||
operating system | Win10 64-bit 21H2 or later and Ubuntu 20.04 | |||||||
Graphics | Integrated graphics: INTEL UHD Graphics | |||||||
BIOS | AMI BIOS | |||||||
Watchdog | Support 256 levels (0~255), programmable | |||||||
power supply | powered by | DC IN 24V, standard products are shipped with a 24V/ 4 A power adapter | ||||||
Startup method | Automatic startup upon power on / button trigger startup ( see Chapter 7 for detailed switching operations ) | |||||||
switch | 1 * switch with light | |||||||
panelinterface | Display Mode | 1*VGA: Maximum resolution up to 1920 * 1200 @ 60 Hz | ||||||
1*HDMI: Maximum resolution 4096*2160@ 60 Hz | ||||||||
COM1 | 1* 3-wire RS-232, using 1 standard DB-9 connector | |||||||
COM3 | 1 * RS-485 , green Phoenix terminal | |||||||
R-SW | 1 * Remote switch , green Phoenix terminal | |||||||
PWR | 1*Power indicator light , green Phoenix terminal | |||||||
LAN | 1 * Gigabit Ethernet port , using RTL8111H chip, supports network wake-up , speed: 10/100/1000Mbps | |||||||
PoE | 4*PoE , using Intel I226V chip, support network wake-up, speed: 10/100/1000Mbps | |||||||
USB | 2 * USB 3.0 , 2 * USB2.0 | |||||||
built-ininterface | M .2 | 1 *M.2 SSD interface (M.2 2280 SATA ) | ||||||
JUSB2 | 1 1*4pin white connector (USB2.0) | |||||||
SW2 | 1*Clock reset | |||||||
USB | 1* single-layer heightened USB2.0, can connect to dongle | |||||||
reliability | Operating temperature | -20℃~60℃ | ||||||
storage temperature | -40℃~85℃ | |||||||
Relative humidity | 5%~90% no condensation | |||||||
Vibration during operation | System with SSD installed : 3 Grms , IEC 60068-2-64 Random 5 ~ 500 Hz | |||||||
Impact during work | System installed SSD : 30G , IEC 60068-2-27 | |||||||
structure | Installation | Horizontal installation /wall-mounted installation /guide rail installation (the factory default is horizontal installation. If a wall-mounted bracket or a guide rail bracket is required, you need to communicate and confirm with the sales department, and the sales department will explain it when placing an order) | ||||||
Horizontal size | With bracket: 219 * 145 * 65 mm (L*W*H) | |||||||
Wall mount size | Including bracket: 229*147*65 mm (L*W*H) | |||||||
Guide rail size | Including bracket: 189*154.5*65 mm (L*W*H) | |||||||
Total Weight | About 1.62 Kg (excluding accessories and packaging) | |||||||
Certification | Related Certificates | FCC, CE, ROHS | ||||||
IO Specifications | ||||||||
Function | DI1 - DI 8 | 8*DI, NPN / PNP mode , input DC 10 V-30V | ||||||
DO1 - DO 16 | 16*DO, maximum output current of each channel is 500 mA , output voltage DC 10-30 V (depending on the power supply voltage) | |||||||
CH | 8 * Light source interface, the maximum current of a single light source is 1A | |||||||
TRIG | 8 * Light source trigger interface | |||||||
COM4 | 1*RS-485, green Phoenix terminal | |||||||
COM5 | 1*RS-232, green Phoenix terminal | |||||||
USB2.0 | 1 built-in USB2.0 port | |||||||
DC OUT 12V | 2*12V output | |||||||
DC IN 24VLIGHT | 1* External power supply for light source, maximum current supported is 4A | |||||||
WIFI | Support 2.4G Frequency |
