Features
Front bezel aluminum alloy brushed metal craft, seamless design, Front panel IP65 waterproof.
Industrial LCD panel, higt brightness 1000 nits, sunlight readable.
Adopt multi-points PCAP touch panel, high sensitive and fast-response. EETI waterproof solution, Support touch accurate with drop water on the screen.

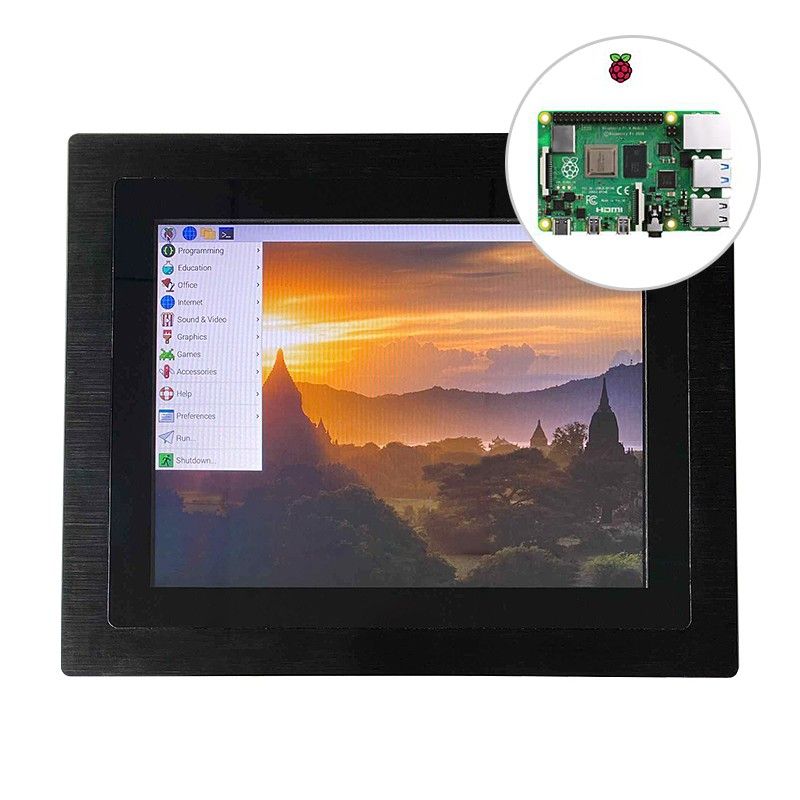

Built in a raspberry pi 3b+.
With dimmer for controlling the brightness, can adjust the brightness from 100% to 0.
Cover with 2MM tempered glass with Anti-glare function.
High performance mainboard, 7x24 continuous operation.
Specification
| Model:SL121P | |
| Raspberry pi | |
| Processor | Raspberry Pi 3b+, 64bits, 1.4GHz, Quad core |
| Raspberry Pi 3b, Raspbery Pi4b Optional | |
| WIFI | 802.11ac wireless 2.4GHz/5GHz double frequency WIFI |
| Bluetooth | Bluetooth 4.2 |
| Network | Gigabit Ethernet port |
| USB port | 4xUSB2.0 |
| GPIO port | 40 pins |
| POE | optional |
| LCD panel | |
| Panel size | 12.1" |
| Resolution | 1280*800 |
| Aspect ratio | 16:10 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |

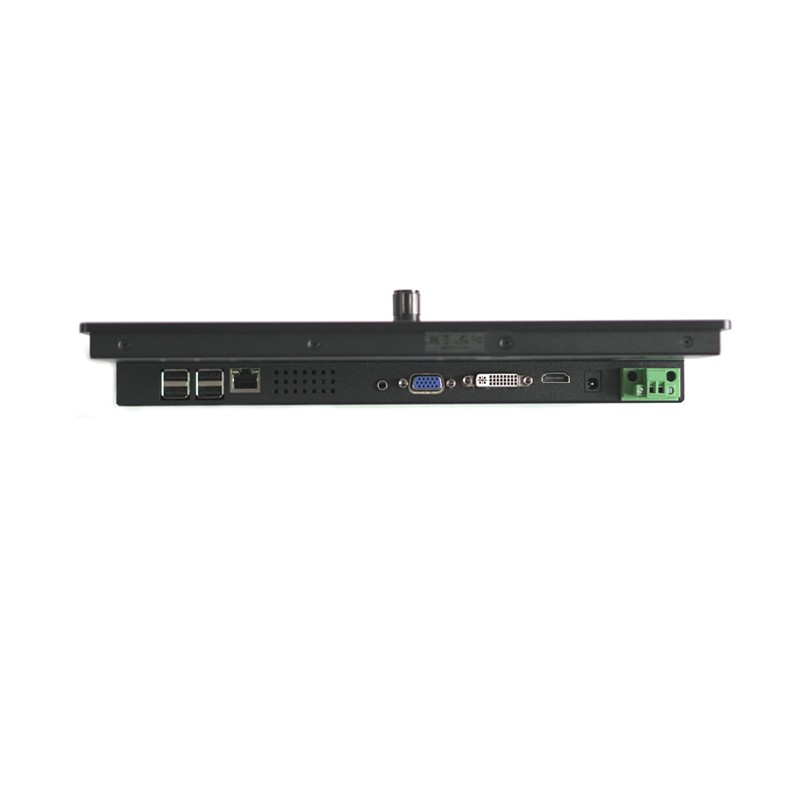

| I/O | |
| VGA | 1×VGA |
| DVI | 1×DVI |
| HDMI | 1×HDMI |
| USB | 4xUSB2.0 |
| Micro USB | 1xMicro USB |
| LAN | 1xLan |
| DC IN | 1x 12V DC |
| DC IN | 1x Phoenix terminal with 9-36V DC IN |
| Audio in/out | optional |
| Touch panel | |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Touch Interface | USB (RS232 optional) |
| Touch response time | 2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working life | >50 million times |
| Touch options | ( 5 wires resistive touch, IR touch optional) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 9-36V |
| Power consumption | ≤40W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver , Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | Front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -20 to 70°C, storage :-30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 2 kg |
| Gross weight | 4 kg |
| Product Dimension | 31.26×24.59×4.1 cm |
| Packing size | 40×35×15 cm |
| Accessories | Power adapter,embedded screws,VGA cable cable, USB cable |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
Available Sizes:
| Size | Resolution | Aspect ratio | Touch type |
| 10.1" | 1280*800 | 16:10 | capacitive/resistance |
| 12.1" | 1024*768 | 4:3 | capacitive/resistance |
| 15" | 1024*768 | 4:3 | capacitive/resistance |
| 15.6" | 1920*1080 | 16:9 | capacitive/resistance |
| 17" | 1280*1024 | 5:4 | capacitive/resistance |
| 19" | 1280*1024 | 5:4 | capacitive/resistance |
| 21.5" | 1920*1080 | 16:9 | capacitive/resistance |
| 22" | 1920*1080 | 16:9 | capacitive/resistance |
| 24" | 1920*1080 | 16:9 | capacitive/resistance |
| 27" | 1920*1080 | 16:9 | capacitive/resistance |
